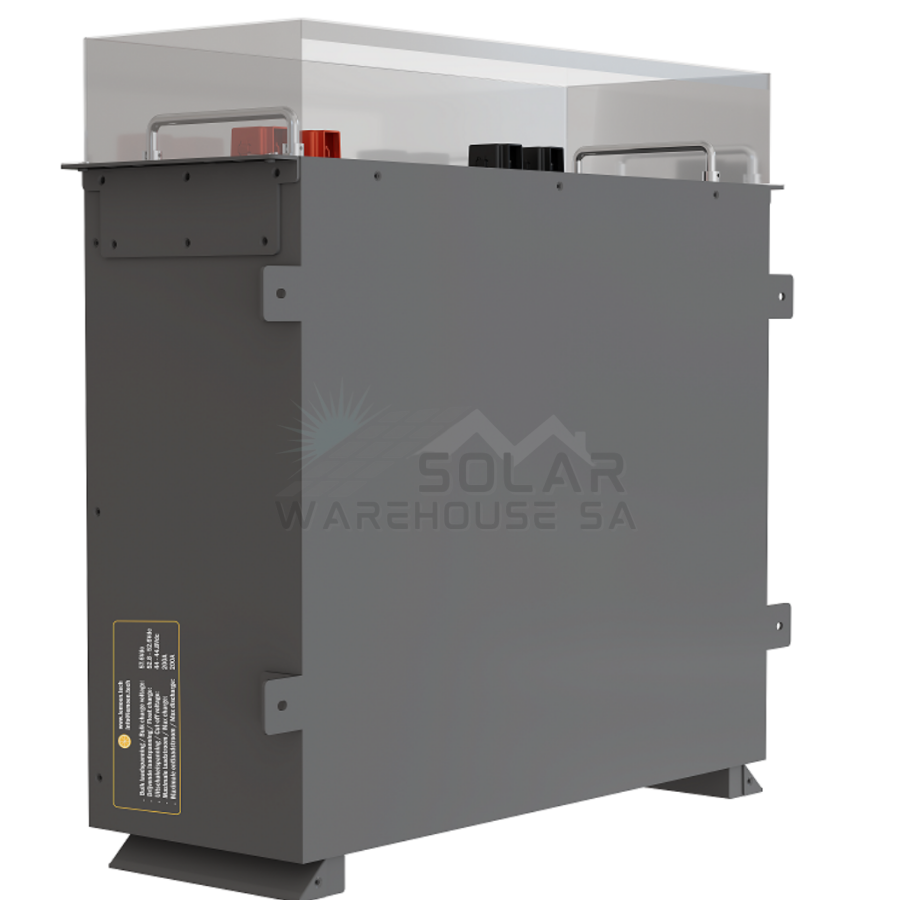

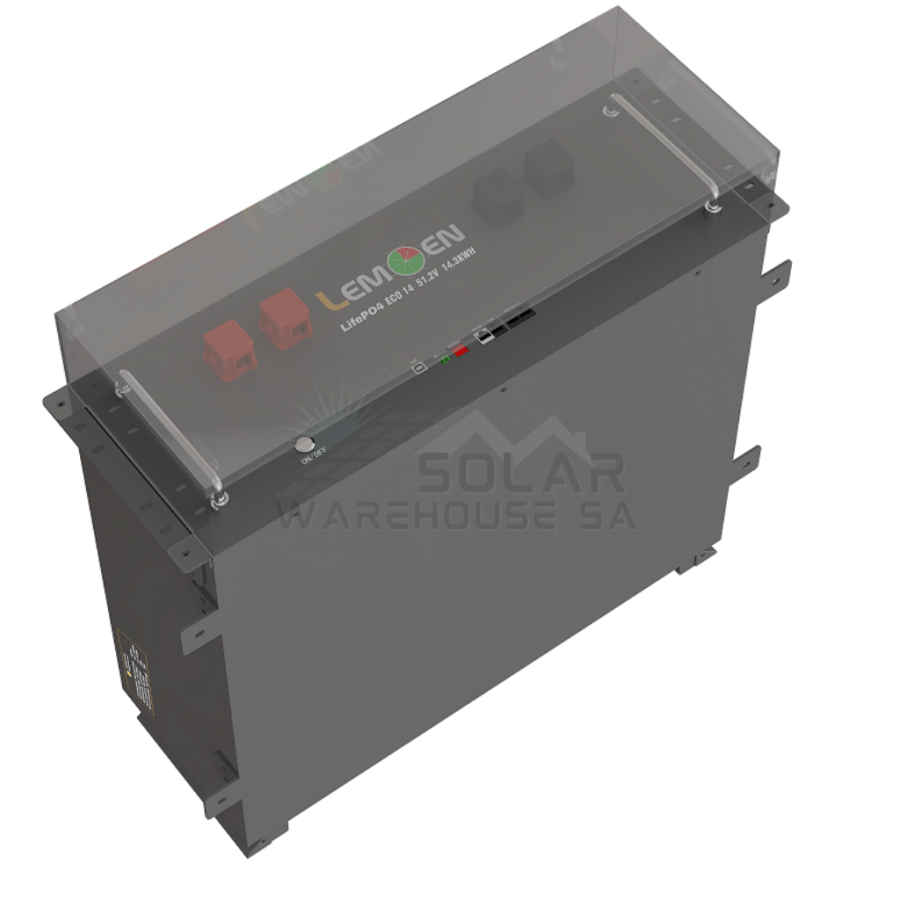

Lemoen Battery Lithium Ion ECO14 14.3KWH 51.2V 280AH Rack Mount & Wall Mount
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Lemoen Battery Lithium Ion ECO14 14.3KWH 51.2V 280AH Rack Mount & Wall Mount
ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED
General Data
• Model: ECO14
• Nominal Energy: 14.3KWH
• Nominal Voltage: 51.2V
• Nominal Capacity: 280AH
• Cell Type: LFP
• Standard Charge Voltage: 58.4V
• Max Charge Current: 200A
• Discharge Cut-Off Voltage: 40V
• Max Discharge Current: 200A
• Parallel Function: 15 Units in Parallel
• Communication: RS485, RS232, CAN
• Calendar Life: 15+ Years @25°C 80% DOD
• Cycle Life: ≥6000 Cycles (80% DOD)
• Charge Temperature Range: 0°C to 65°C
• Discharge Temperature Range: -20°C to 65°C
• Cell Certification: UL1642 / IEC62619 / CE / ROHS / MSDS / UN38.3
• Pack Certification: MSDS / UN38.3
• Installation Method: Wall Mount / Rack Mount
| Weight | 125 kg |
|---|---|
| Dimensions |
66.3 × 45 × 23 cm |
Warranty:
The product will operate as designed and intended and will be free from defects in
workmanship and materials as: ( Life 5 & ECO 14) 10 Years For Battery Cells, 5
Years For BMS , (ECO 2.5) 3 Years For Battery Cells and BMS, whichever comes first,
from the invoice date from LEMOEN, or third party which are authorized by
LEMOEN.
