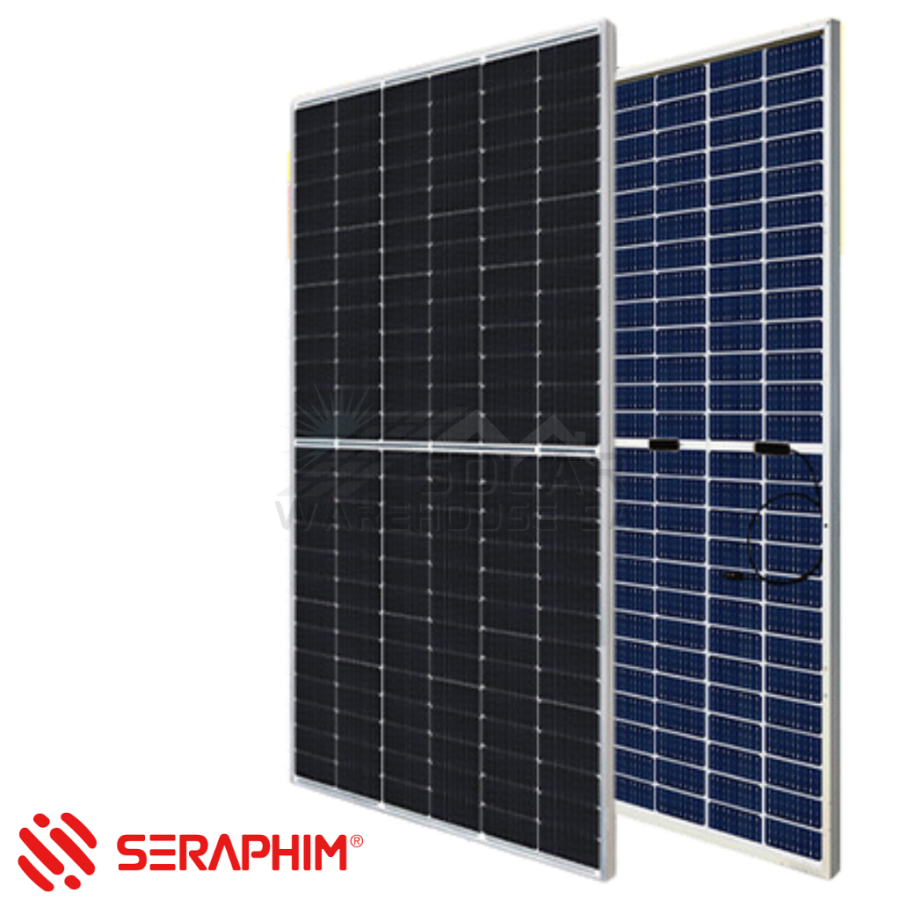

Seraphim S3 450w Tier 1 Mono Bifacial Solar Panel SRP-450-BMA-BG
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Seraphim S3 450w Tier 1 Mono Bifacial Solar Panel SRP-450-BMA-BG
Seraphim redefined the high-efficiency module series by integrating
166mm silicon wafers with multi-busbar and half-cut cell technologies. Seraphim panel combined creative technology effectively and
extremely improved the module efficiency and power output.
Key Features
-Less mismatch to get more power
-Less power loss by minimizing the shading impact
-Competitive low light performance
-3 times EL test to ensure best quality
-Ideal choice for utility and commercial scale projects
by reduced BOS and improve ROI.
-Outstanding reliability proven by PVEL for
stringent environment condition :
* sand, acid, and alkali, hail stones,
* 2400pa wind load and 5400pa snow load.
* Anti-PID
Specifications :
| Module Type | SRP-450-BMA-BG | |
| STC | Front | Back |
| Maximum Power -Pmp (W) | 450 | 336 |
| Open Circuit Voltage -Voc (V) | 50.1 | 45.8 |
| Short Circuit Current -Isc (A) | 11.41 | 9.24 |
| Maximum Power Voltage -Vmp (V) | 41.8 | 38.7 |
| Maximum Power Current -Imp (A) | 10.77 | 8.69 |
| Module Efficiency STC-ηm (%) | 20.70 | |
| Power Tolerance（W） | 0~3%） | |
| Pmax Temperature Coefficient | -0.36 %/°C | |
| Voc Temperature Coefficient | -0.28 %/°C | |
| Isc Temperature Coefficient | +0.05 %/°C | |

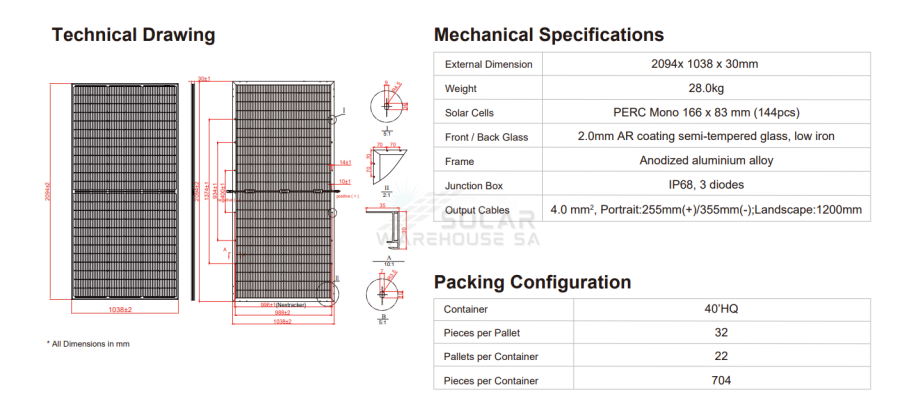

External Dimension: 2094x 1038 x 30mm
Weight: 28.0kg
Solar Cells PERC Mono: 166 x 83 mm (144pcs)
Front / Back Glass: 2.0mm AR coating semi-tempered glass, low iron
Frame Anodized : aluminium alloy
Junction Box : IP68, 3 diodes
Output Cables : 4.0 mm2, Portrait:255mm(+)/355mm(-); Landscape:1200mm
Courier for panels are at your own risk
Warranty:
Warranty: 15 Year Materials and Processing Warranty
Performance Guarantee: 30 Year Extra Linear Power Output Warranty
