12.8v 40ah Ingle Lithium Battery

12.8v 40ah Ingle Lithium Battery

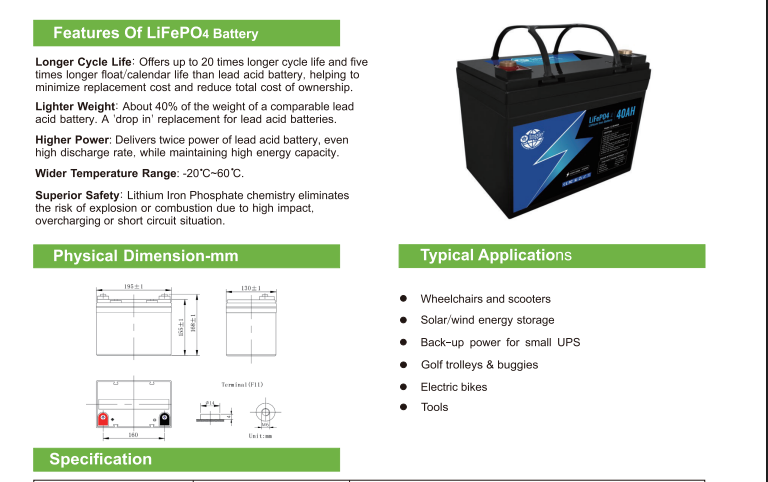

Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery,
helping minimize replacement cost and reduce total cost of ownership.

Lighter Weight: About 40% of the weight of a comparable lead acid battery.
A 'drop in' replacement for lead acid batteries.

Higher Power: Delivers twice power of lead acid battery, even high discharge rate,
while maintaining high energy capacity.

Wider Temperature Range: -20°C-60°C.

Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact.
overcharging or short circuit situation.

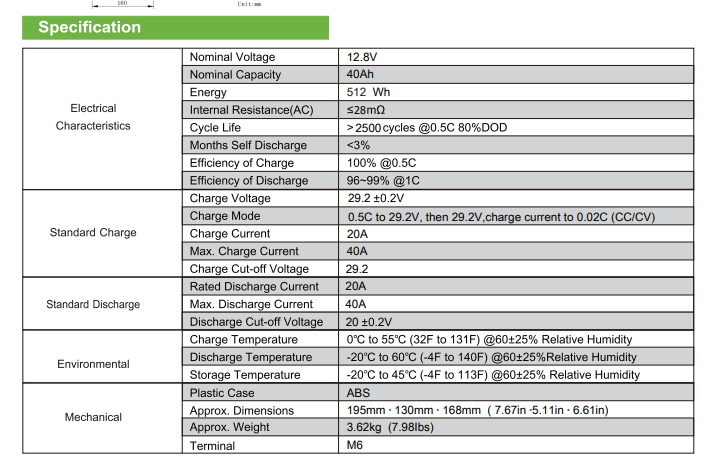

SPECIFICATIONS

Nominal Voltage : 12.8V 40Ah
Nominal Capacity Energy : 512 Wh
Internal Resistance(AC) : 28ΜΩ
Cycle Life : >2500 cycles @0.5C 80% DOD
Months Self Discharge Efficiency of Charge : <3%
Efficiency of Discharge : 100% @0.5C
Charge Current : 20A
Max. Charge Current : 40A
Charge Cut-off Voltage : 29.2V
Rated Discharge Current Max. :  20A
Max Discharge Current :40A
Discharge Cut-off Voltage Charge :20v
IP Class : IP65
Plastic Case : ABS
Approx. Dimensions : 195 X 130 X 168 MM
Approx. Weight : 3.62
Terminal : M6

12 Months Warranty

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
