3KVA Must Pure Sine Wave Load Shedding Combo 3000 Watt 2.56 KWh Ecco Lithium Battery

Lead Time 2-3 Business days

Available online & in-store

Delivery estimated within 20/11 and 29/11

Please note that the stock quantities displayed on the website are for the Kempton Park warehouse. Please confirm stock on hand directly with other branches.

There are 4 units left in stock.

  • R 12,500.00
    Unit price per
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • mobicred
  • Zapper
  • PayFast Instant EFT
Tax included. Shipping calculated at checkout.

Only 4 left!

Hybrid Inverter Solar Kit

3KVA Must Pure Sine Wave Load Shedding Combo 3000 Watt 2.56 KWh Ecco Lithium Battery

Overcome load shedding with this premium hybrid inverter load-shedding Combo

Inverter Specifications:

Must 3kw 100Amp 24v MPPT Solar Hybrid Inverter PV1800 PV18-3024 Eco

Features:
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ Wide PV input voltage range
■ Can provide the power to the load without battery
■ Combining solar system, AC utility, and battery power source to
supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support RS485,CAN monitoring function
■ Dual outputs for smart load management
■ Can communicate with lithium batteries (CAN port)

SOLAR INVERTER Model Name: PV1800
MD: PV18-3024 ECO
Operating Temperature Range: -10°C-50°C
Protection Class: Class I
Protection Degree: IP 20

Inverter Mode:
Rated Power(Main+Second Load):3000VA/3000W
DC Input: 24VDC, 135A
AC Output: 230VAC, 50/60Hz, 13A,10
Output Power Factor: 1.0
AC Charger Mode:
AC Input: 230VAC, 50/60Hz, 17.7A,10
DC Output: 24VDC,60A

Solar Charger Mode:
Rated MPPT Charger Current: 100A
MPPT Voltage Range(Typ): 30-320VDC
Max Solar Voltage(VOC): 400VDC
Max PV Input Current: 18A
Max MPPT Power: 4000W
Max.Charge Current: 100A

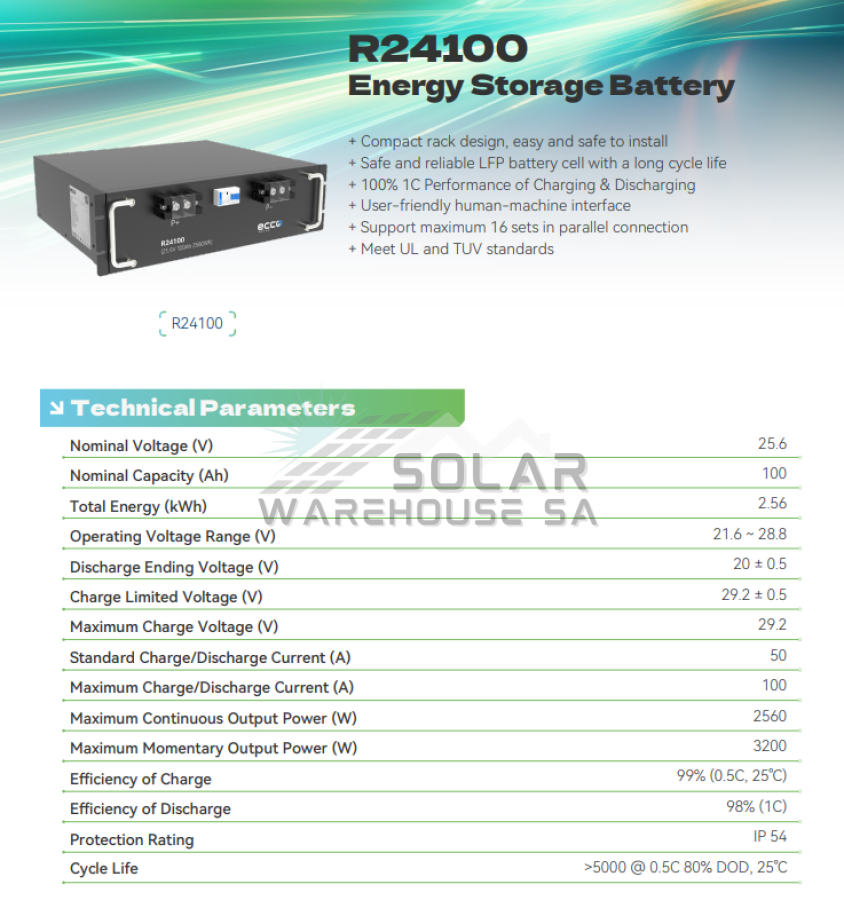

Battery Specifications:

Nominal Voltage (V) 25.6
Nominal Capacity (Ah) 100
Total Energy (kWh) 2.56
Operating Voltage Range (V) 21.6 ~ 28.8
Discharge Ending Voltage (V) 21.6
Charge Limited Voltage (V) 28.8
Maximum Charge Voltage (V) 29.2
Standard Charge/Discharge Current (A) 50
Maximum Charge/Discharge Current (A) 100
Maximum Continuous Output Power (W) 2560
Maximum Momentary Output Power (W) 3200
Efficiency of Charge 99% (0.5C, 25℃)
Efficiency of Discharge 98% (1C)
Protection Rating IP 54
Cycle Life >5000 @ 0.5C 80% DOD, 25℃

General Data

Dimension (mm) W442 * D450 * H133
Weight 25.5
Material LiFePO₄
Design Life 10 years

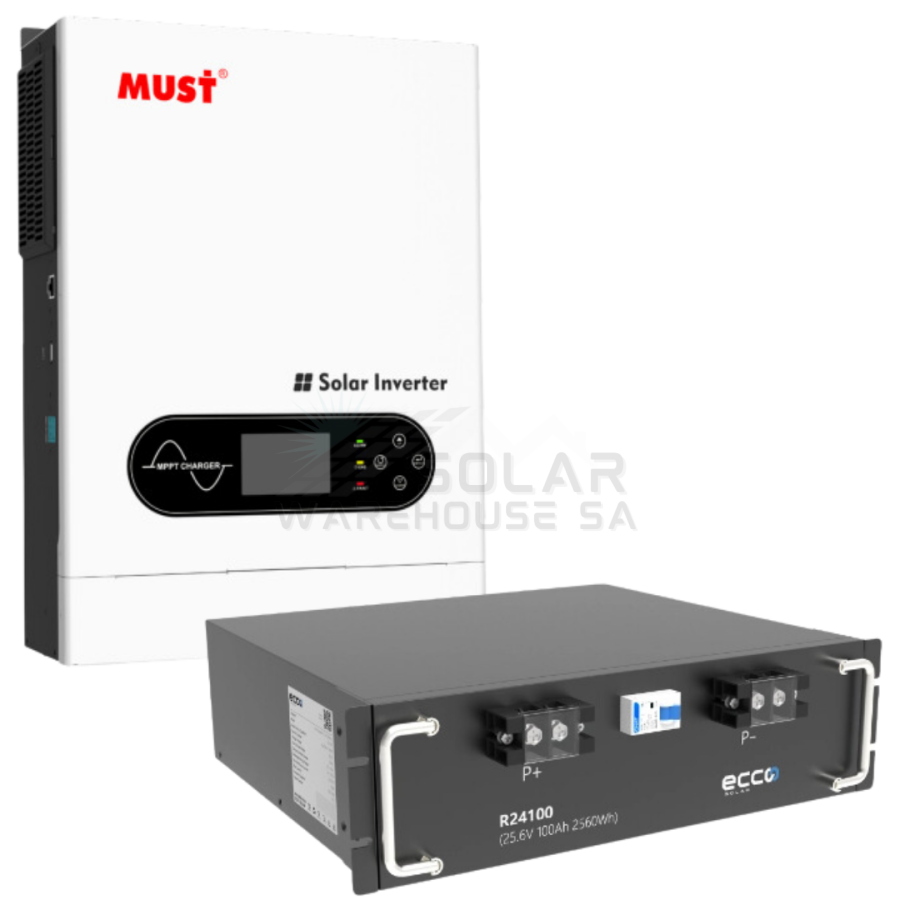

 Combo includes:

  • 1x Ecco 2.56 KWh 25.6V 100AH Lithium LifePO4 Battery R24100
    (5 Year Warranty)
  • 1x Must 3kw 100Amp 24v PWM Solar Hybrid Inverter PV1800 PV18-3024 Eco
    (1 Year Warranty)
