6KVA MPPT Luxpower Load Shedding Shoto 5.12 KWh Combo Backup Power Kit
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
Hybrid Inverter Solar Kit Combo

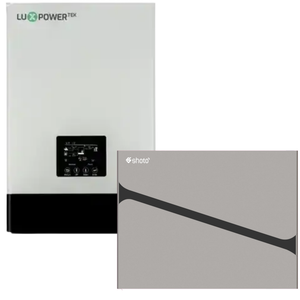

6KVA MPPT Luxpower Load Shedding Shoto 5.12 KWh Combo Backup Power Kit
Overcome load shedding with this premium hybrid inverter load-shedding Combo
INVERTER SPECIFICATIONS:
Luxpower Off-Grid Pure Sine Wave Inverter (SNA6000) - 6Kw / 6000W / 48V / MPPT
General
- Model: SNA 6000 WPV
- Battery voltage: 48VDC.
Inverter Output
- Waveform: Pure Sine-Wave.
- Rated Power: 6000W.
- Parallel Capability: Yes, 16 units.
- AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
- Surge Power: 9000w.
- Efficiency (Peak): 93%.
- Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
Solar Charger
- Maximum PV Array Power: 8000W.(4000w per MPPT)
- 2 MPPT Controllers
- MPPT Range @ Operating Voltage: 120VDC ~385 VDC.
- Maximum PV Array Open Circuit Voltage: 480VDC.
- Start Up Voltage: 100vdc
- Maximum Efficiency: 98%.
- Maximum Solar Charge Current: 17A/17A.
AC Charger
- Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
- Frequency Range: 50Hz/60Hz (Auto sensing)
What's in the box
1 x Inverter
1 x User Manual
1 x Wifi Dongle
Battery Specifications:
- Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 48V
- Capacity: 100Ah
- Energy Storage: 5.12kWh
- Cycle Life: >6000 cycles at 80% DoD
- Max Charge Voltage: 54V
- Discharge Cutoff Voltage: 42V
- Maximum Charge/Discharge Current: 100A
- Round-Trip Efficiency: >95%
- Communication Protocols: RS485, CAN
- Operating Temperature: -20°C to 55°C
- Scalability: Parallel & Series connections supported
Combo includes:
- 1x Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro (10-years warranty)
- 1x Luxpower 6kw + Wifi Dongle Inverter (2 year warranty)
- Battery Cables And Brackets Included
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
