6KW MPPT Growatt 5.12KWh Lithium Battery WM Combo Backup Power Kit
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
Hybrid Inverter Solar Kit Combo

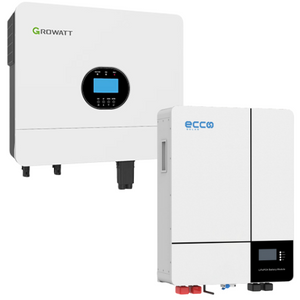

6KW MPPT Growatt 5.12KWh Lithium Battery WM Combo Backup Power Kit
INVERTER SPECIFICATIONS:
Features:
· Plug-and-Play terminal for PV port
· Dual MPP trackers
· Maximum PV input voltage up to 500VDC
· Configurable grid or solar input priority
· Parallel for scalability
· Dust-proof filter for harsh environment
· Two AC input terminals with integrated
transfer switch
WIFI Dongle (INCLUDED)
Inverter Output:
- Battery Voltage: 48VDC
- Battery Type: Lithium/Lead-Acid
- Rated Power: 6000VA/6000W
- Parallel Capability: Yes, 6 units maximum
- Surge Power: 12000VA
- Waveform: Pure Sine Wave
- Transfer Time: 10ms typical, 20ms Max
Solar Charger:
- Maximum PV Array Power: 8000W
- MPPT Range @ Operating Voltage: 120VDC – 450VDC
- Max. Input current per MPP tracker: 16A
- Maximum Solar Charger Current: 100A
- Number of Independent MPP Trackers/
Strings Per MPP Tracker : 2/1
AC Charger:
- Charge Current: 80A
- AC Input Voltage: 230VAC
- Selectable Voltage Range: 170-280 VAC (For personal Computers) ; 90-280 VAC (For Home Applications)
- Wifi Dongle Included
Battery Specifications:
- Vertical-mounted only for ME51300 & ME51320
- Large capacity, high power output
- Safest lithium iron phosphate battery cell with high energy density
- Modular design: supports up to 40 units in parallel
- Support CAN & RS485 communication with mainstream inverters Local monitoring via LCD monitor
- Built-in WiFi Smart BMS Module
Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Charging Voltage (V) 58.4 (recommended)
Maximum Continuous Output Power (A) 100A
Maximum Momentary Output Power (A) 100A
Combo includes:
- 1x Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES (2 Years Warranty)
- Growatt Wifi Dongle
-
Ecco 51.2v 100ah 5.12kWh Lithium Battery ME51100 Wall-Mounted
( 5 Years Warranty)
- Battery cables included
