6KW MPPT Growatt Dyness 5.12 Lithium Battery Combo Backup Power Kit 6x Solar 460w Solar Panels Mono
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Hybrid Inverter Solar Kit Combo
6KW MPPT Growatt Dyness 5.12 Lithium Battery Combo Backup Power Kit 6x Solar 460w Solar Panels Mono Crystaline
INVERTER SPECIFICATIONS:
Features:
· Plug-and-Play terminal for PV port
· Dual MPP trackers
· Maximum PV input voltage up to 500VDC
· Configurable grid or solar input priority
· Parallel for scalability
· Dust-proof filter for harsh environment
· Two AC input terminals with integrated
transfer switch
WIFI Dongle (INCLUDED)
Inverter Output:
- Battery Voltage: 48VDC
- Battery Type: Lithium/Lead-Acid
- Rated Power: 6000VA/6000W
- Parallel Capability: Yes, 6 units maximum
- Surge Power: 12000VA
- Waveform: Pure Sine Wave
- Transfer Time: 10ms typical, 20ms Max
Solar Charger:
- Maximum PV Array Power: 8000W
- MPPT Range @ Operating Voltage: 120VDC – 450VDC
- Max. Input current per MPP tracker: 16A
- Maximum Solar Charger Current: 100A
- Number of Independent MPP Trackers/
Strings Per MPP Tracker : 2/1
AC Charger:
- Charge Current: 80A
- AC Input Voltage: 230VAC
- Selectable Voltage Range: 170-280 VAC (For personal Computers) ; 90-280 VAC (For Home Applications)
- Wifi Dongle Included

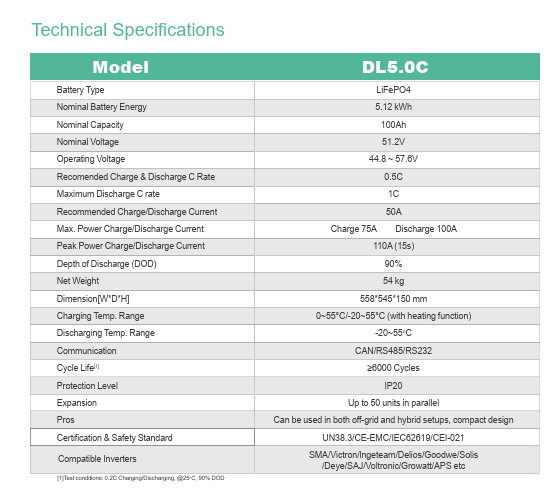

Battery Specifications:

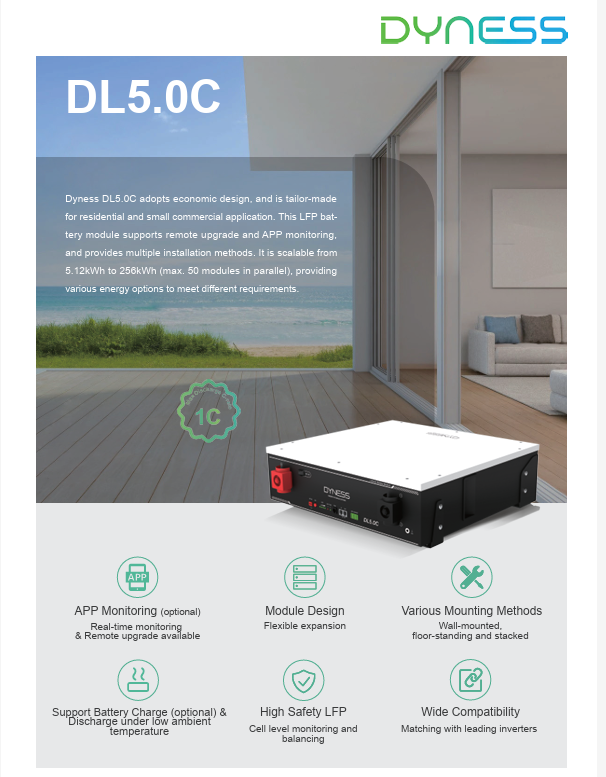

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max Continous Charge Current | 75A |
| Max Continous Discharge Current | 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |

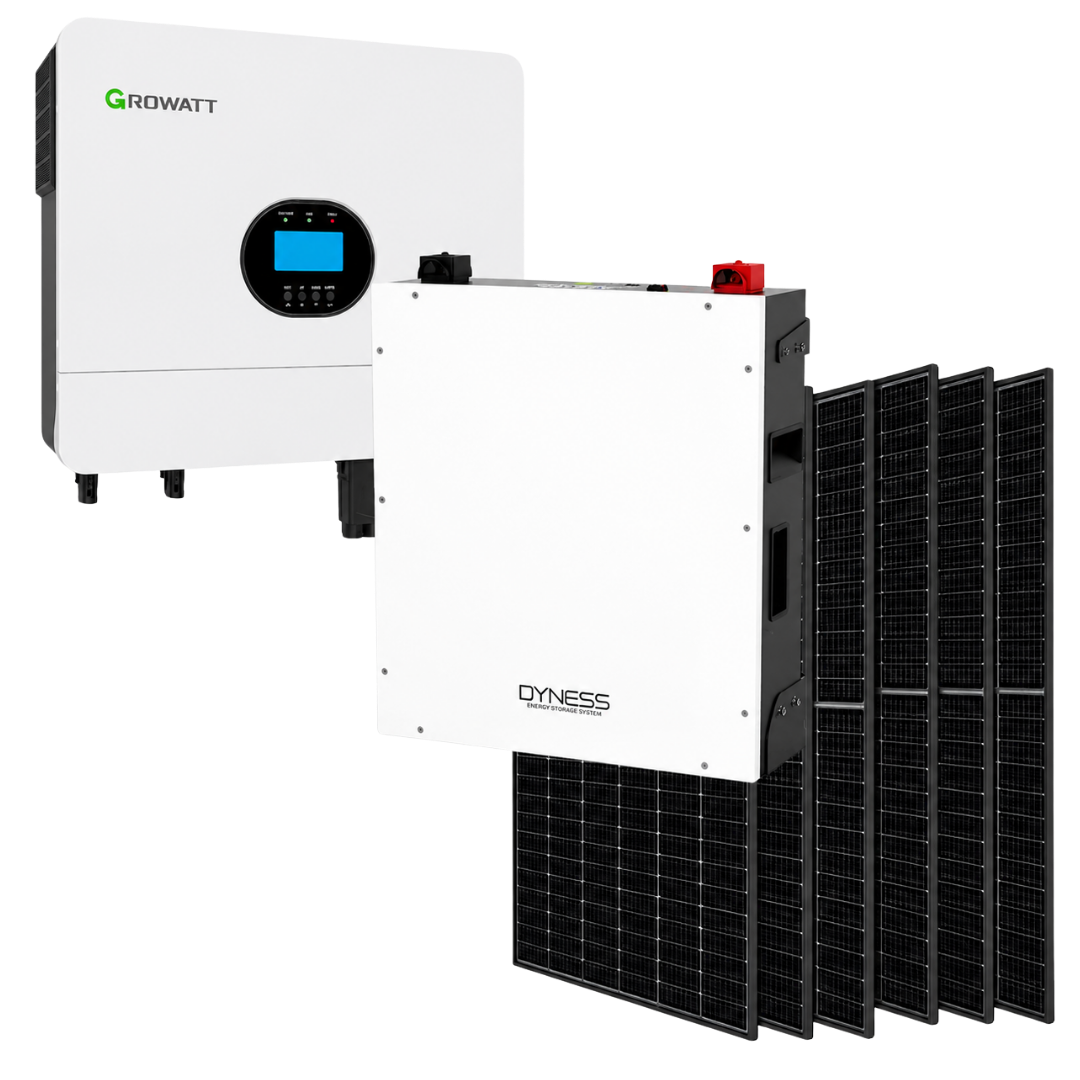

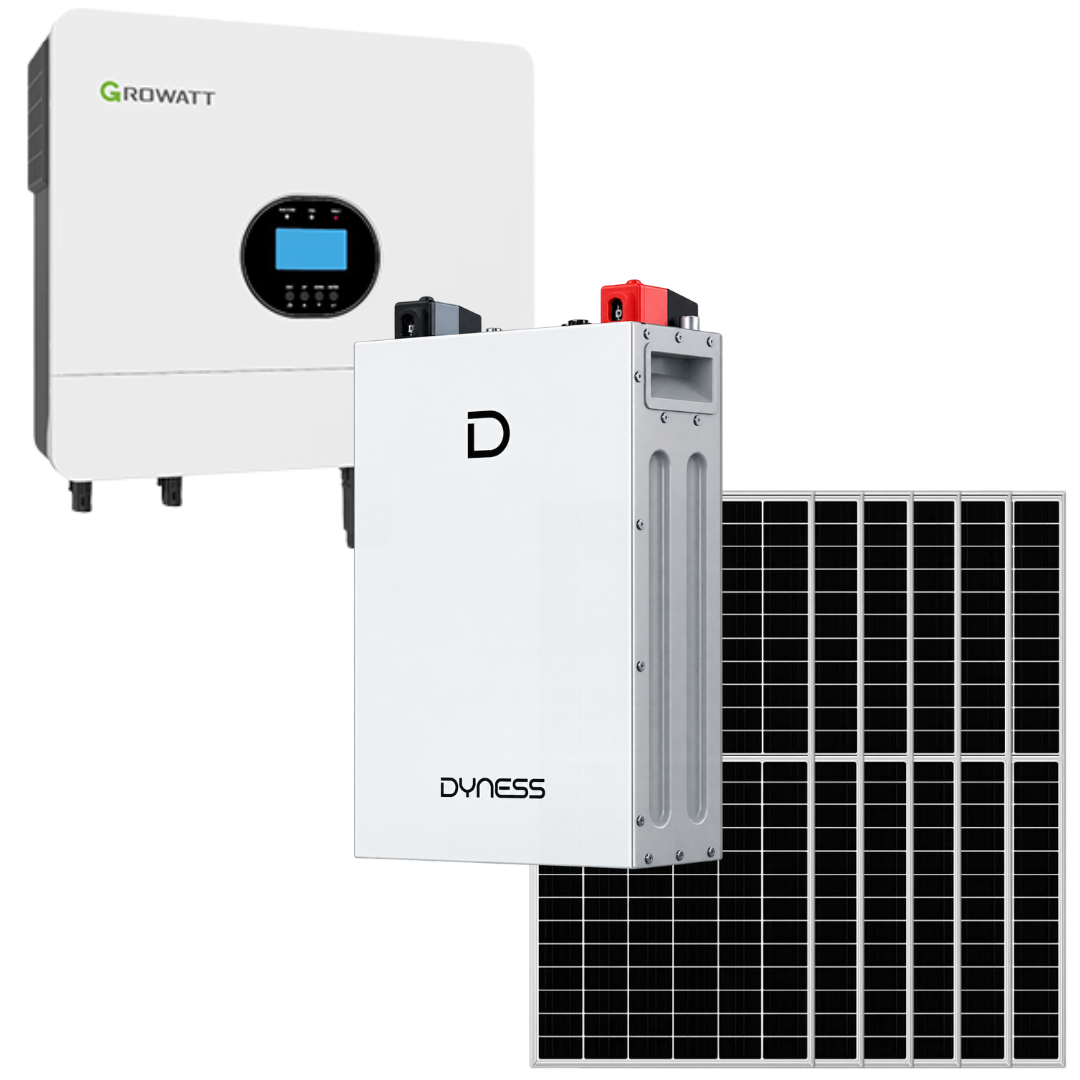

Combo includes:
- 1x Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES (2 Years Warranty)
- Growatt Wifi Dongle
- 1x Dyness 5.12 Battery DL5.0C 5.12 kWh 51.2v Version 2 (7 Years Warranty)
- 6x Canadian Solar 460w Solar Mono Panel (12 Year Product Warranty)
- Battery cables included
