6KW MPPT Growatt Shoto 5.12 Lithium Battery Combo Backup Power Kit

Name: 6KW MPPT Growatt Shoto 5.12 Lithium Battery Combo Backup Power Kit
Brand: Solar Warehouse ZA
Price: 19700.00 ZAR
Availability: InStock

Lead Time 2-3 Business days

Available online & in-store

Delivery estimated within 20/11 and 29/11

Please note that the stock quantities displayed on the website are for the Kempton Park warehouse. Please confirm stock on hand directly with other branches.

There are 5 units left in stock.

R 19,700.00
Unit price per

Tax included. Shipping calculated at checkout.

Hybrid Inverter Solar Kit Combo

6KW MPPT Growatt Shoto 5.12 Lithium Battery Combo Backup Power Kit

INVERTER SPECIFICATIONS:

Features:

· Plug-and-Play terminal for PV port
· Dual MPP trackers
· Maximum PV input voltage up to 500VDC
· Configurable grid or solar input priority
· Parallel for scalability
· Dust-proof filter for harsh environment
· Two AC input terminals with integrated
transfer switch

WIFI Dongle (INCLUDED)

Inverter Output:

Battery Voltage: 48VDC
Battery Type: Lithium/Lead-Acid
Rated Power: 6000VA/6000W
Parallel Capability: Yes, 6 units maximum
Surge Power: 12000VA
Waveform: Pure Sine Wave
Transfer Time: 10ms typical, 20ms Max

Solar Charger:

Maximum PV Array Power: 8000W
MPPT Range @ Operating Voltage: 120VDC – 450VDC
Max. Input current per MPP tracker: 16A
Maximum Solar Charger Current: 100A
Number of Independent MPP Trackers/
Strings Per MPP Tracker : 2/1

AC Charger:

Charge Current: 80A
AC Input Voltage: 230VAC
Selectable Voltage Range: 170-280 VAC (For personal Computers) ; 90-280 VAC (For Home Applications)
Wifi Dongle Included

Battery Specifications:

Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage: 48V
Capacity: 100Ah
Energy Storage: 5.12kWh
Cycle Life: >6000 cycles at 80% DoD
Max Charge Voltage: 54V
Discharge Cutoff Voltage: 42V
Maximum Charge/Discharge Current: 100A
Round-Trip Efficiency: >95%
Communication Protocols: RS485, CAN
Operating Temperature: -20°C to 55°C
Scalability: Parallel & Series connections supported

Combo includes:

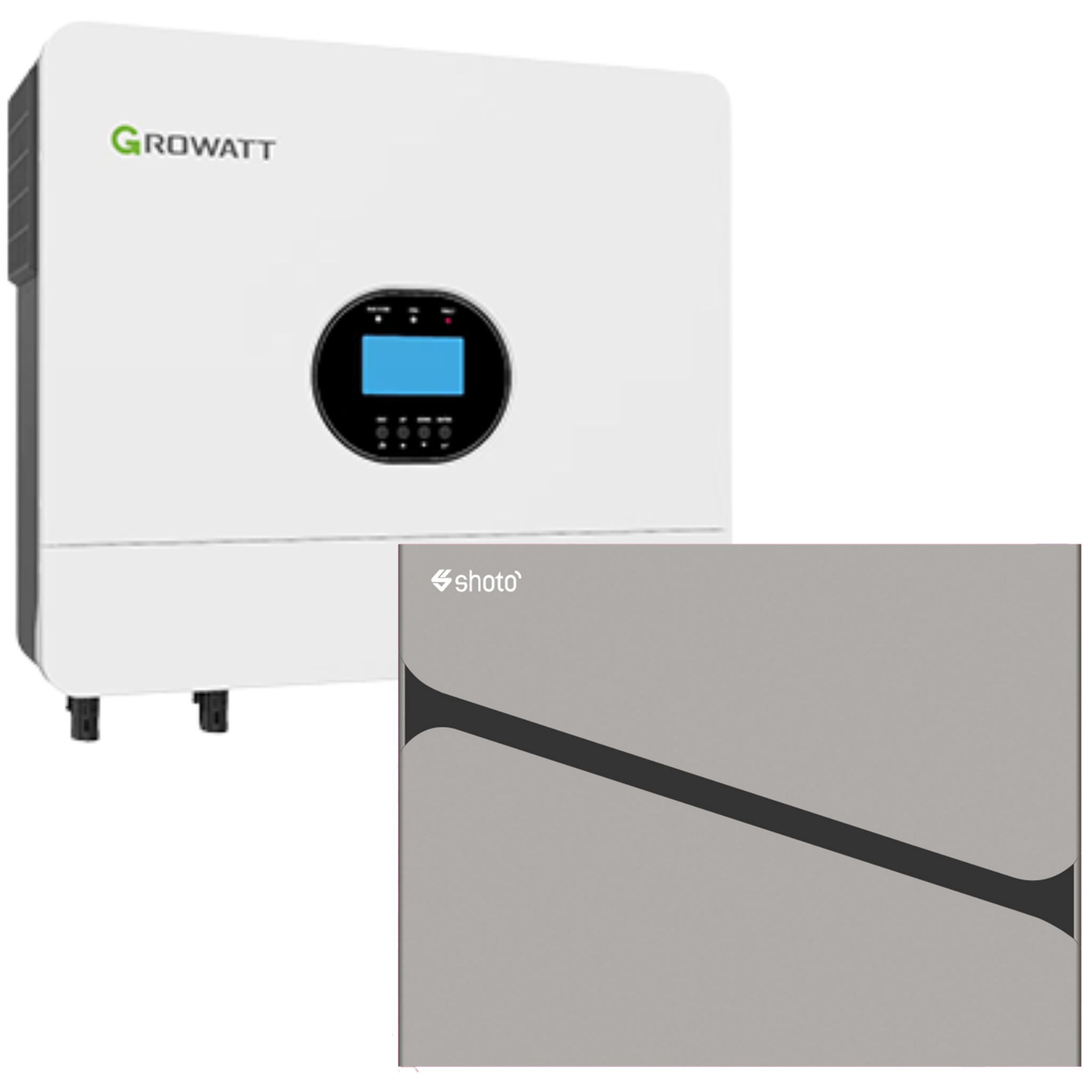

1x Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES (2 Years Warranty)
Growatt Wifi Dongle
1x Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro (10-years warranty) (10 Years Warranty)
Battery cables included
