8KW MPPT Deye Load Shedding 2x Shoto 5.12 KWh Backup Power Combo Kit
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
8KW MPPT Deye Load Shedding 2x Shoto 5.12 KWh Backup Power Combo Kit
HYBRID INVERTER SOLAR KIT COMBO
Inverter Specifications:
The Deye 8kW NEW GEN Single Phase Hybrid Inverter (SUN-8K-SG05P1-EU-SM2) combines power and efficiency in a smaller, more compact design, making it perfect for modern homes and businesses with limited space. This advanced inverter builds on the features of its predecessor while offering enhanced versatility and compatibility.
Key Features:
- Compact Design: Smaller and more space-efficient, ideal for tight installation areas.
- High Capacity: 8kW output to handle medium to large energy demands.
- Expanded Compatibility: Supports more solar panels for greater energy generation.
- Hybrid Operation: Integrates solar, battery, and grid power seamlessly.
- High Efficiency: Up to 97.6% conversion efficiency ensures optimal performance.
- Smart Management: Equipped with Wi-Fi and app control for real-time monitoring and adjustments.
Specifications:
- Battery Type: Lead-acid or Li-lon
- Battery Voltage Range (V): 40-60V
- Max. Charging Current (A): 190A
- Max. Discharging Current (A): 190A
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- External Temperature Sensor: Optional
-
Number of battery input: 1
Battery Specifications:
- Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 48V
- Capacity: 100Ah
- Energy Storage: 5.12kWh
- Cycle Life: >6000 cycles at 80% DoD
- Max Charge Voltage: 54V
- Discharge Cutoff Voltage: 42V
- Maximum Charge/Discharge Current: 100A
- Round-Trip Efficiency: >95%
- Communication Protocols: RS485, CAN
- Operating Temperature: -20°C to 55°C
- Scalability: Parallel & Series connections supported
10 Years Warranty
Combo includes:
-

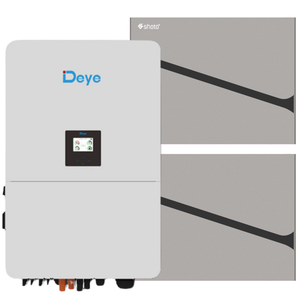

1x Deye 8kwh Hybrid Inverter Including Wifi Dongle
(5 Years Warranty) -
2x Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro
(10 Years Warranty) - Battery cables and brackets included
