8KW MPPT Deye Load Shedding Dyness 5.1KWh Backup Power Combo Kit
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are 8KW MPPT Deye Load Shedding Dyness 5.1KWh Backup Power Combo Kit
HYBRID INVERTER SOLAR KIT COMBO
Inverter Specifications:

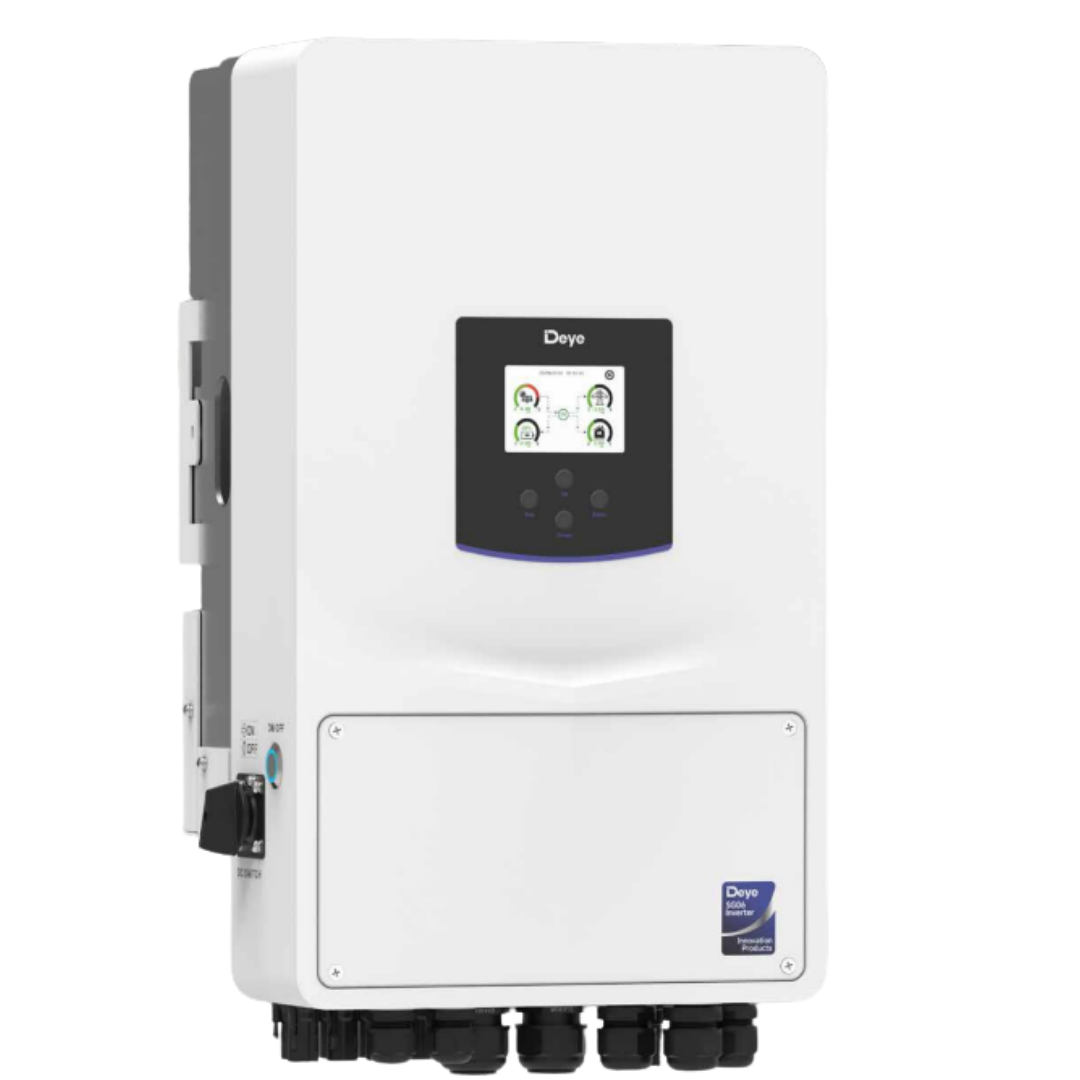

Deye 8KW Hybrid Inverter SUN-8K-SG05LP1-EU-SM2-P
Product Features
The Deye 8kW NEW GEN Single Phase Hybrid Inverter (SUN-8K-SG05P1-EU-SM2-P) combines power and efficiency in a smaller, more compact design, making it perfect for modern homes and businesses with limited space. This advanced inverter builds on the features of its predecessor while offering enhanced versatility and compatibility.
Battery Specifications:
DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max Continous Charge Current | 75A |
| Max Continous Discharge Current | 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |

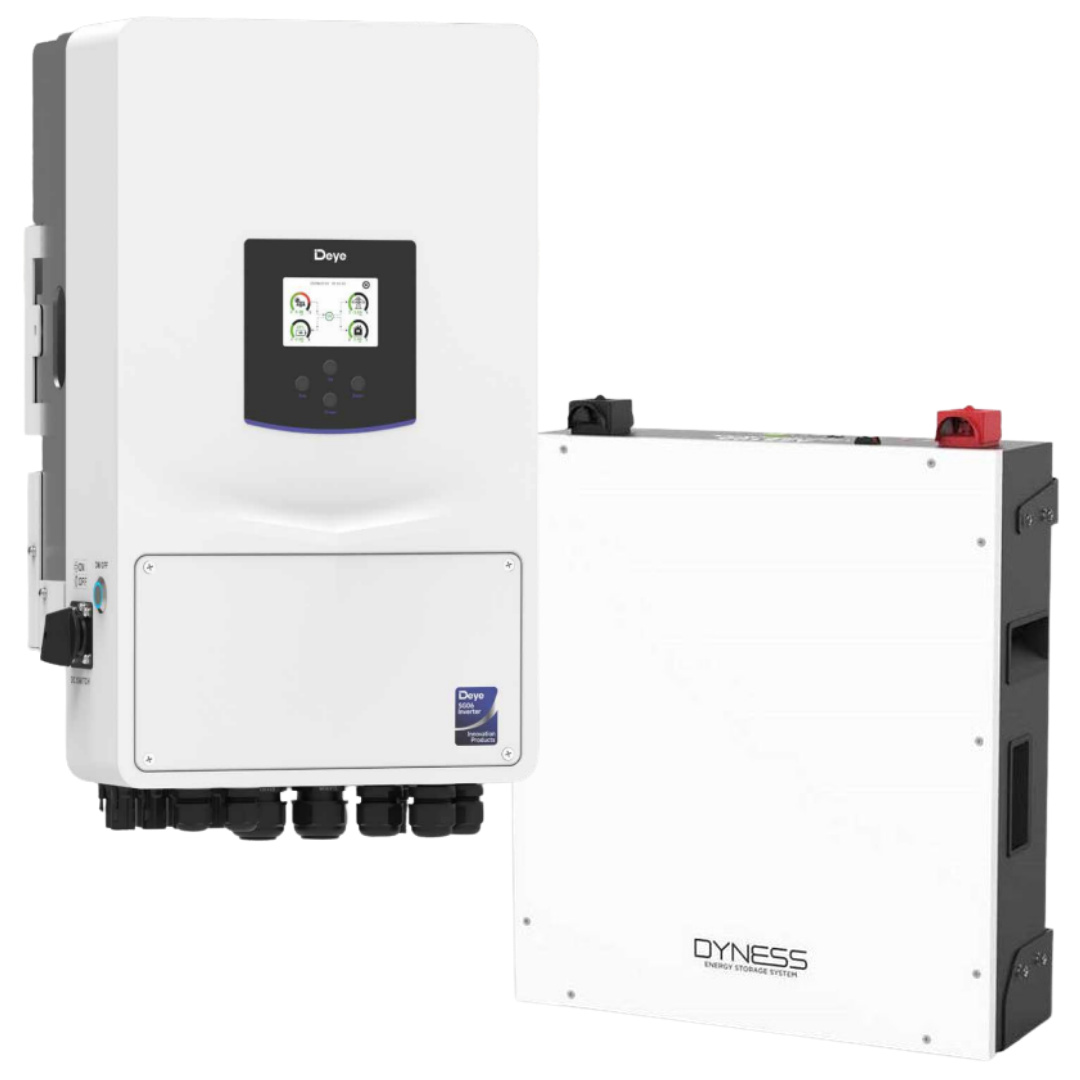

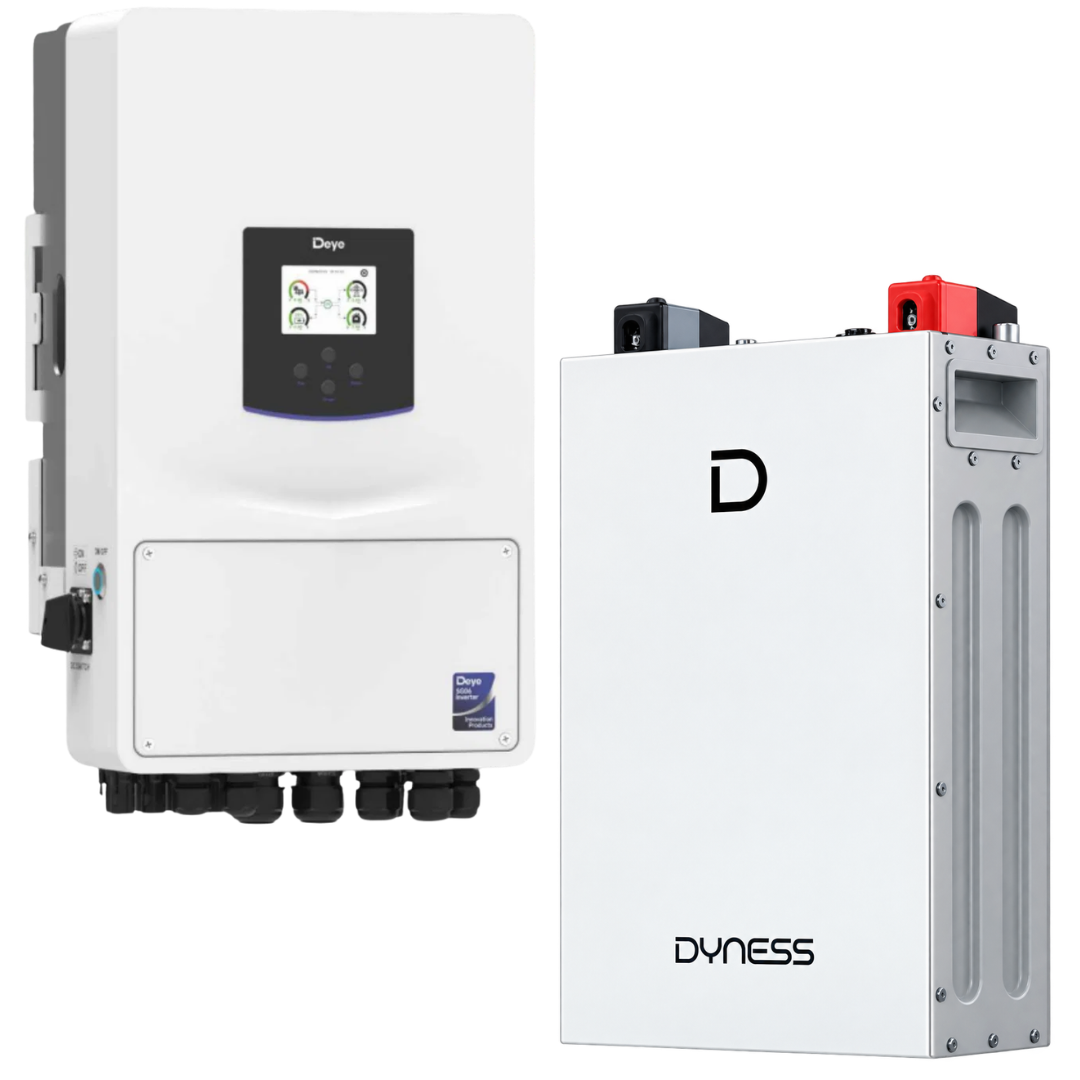

Combo includes:
-
1x Deye 8KW Hybrid Inverter SUN-8K-SG05LP1-EU-SM2-P
(5 Years Warranty) -
1x DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v Version 2
(7 Years Warranty) - Battery cables and brackets included
