Deye 10KW 48V Single Phase Hybrid Inverter Including Wifi Dongle V3

Deye 10KW 48V Single Phase Hybrid Inverter Including Wifi Dongle V3

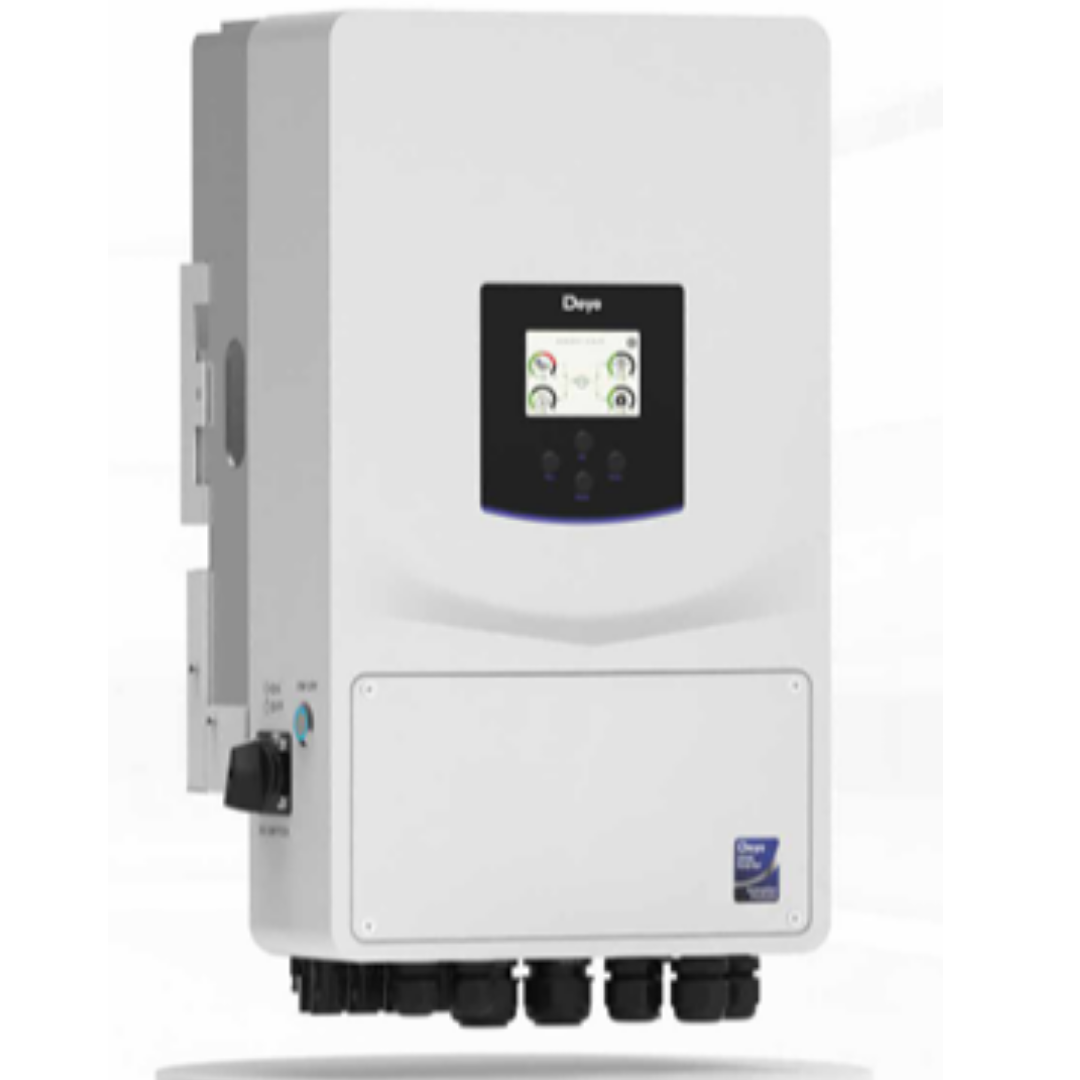

• Deye 10kW New Gen Hybrid Inverter V3

  The Deye 10kW Hybrid Inverter V3 (SUN-10K-SG06LP1-EU-CM3) is a high-capacity single-phase hybrid inverter designed for large South African homes, small commercial premises, and agricultural properties with demanding energy requirements. Delivering 10kW of continuous output at up to 97.6% efficiency, it combines NRS 097 grid certification, three independent MPPT trackers, a 220A battery interface, and an upgraded colourful touch LCD — making it one of the most capable single-phase hybrid inverters available for the South African market.

  Disclaimer:  Version 3 is not compatible with older versions of this product. Please ensure compatibility with your existing system or components before purchasing, as Version 3 cannot be used interchangeably with previous versions.

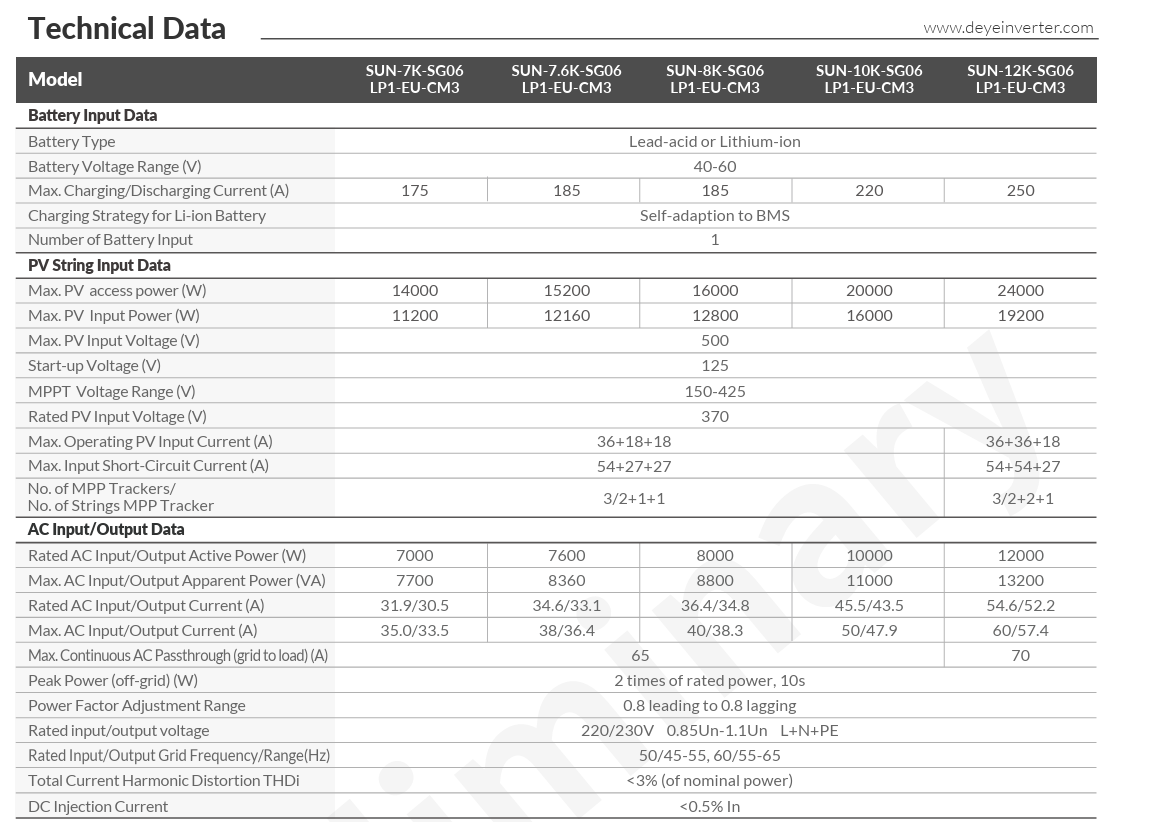

  Key Features & Specifications:

  • Seamless Loadshedding Backup — Automatically switches between solar, battery, and grid to maintain full power through loadshedding with no manual intervention required. At 10kW continuous output, it sustains heavy domestic and light commercial loads — air conditioning, industrial refrigeration, multiple appliances — without compromise. Six programmable time periods enable precise scheduling aligned with South African tariff structures.
  • 220A High-Rate Battery Interface — With a maximum charging and discharging current of 220A, the Deye 10kW V3 delivers exceptional battery throughput — filling large LV lithium battery banks rapidly and sustaining strong discharge performance under the heaviest loads.
  • Triple Independent MPPT Solar Charging — Three separate MPPT trackers accept up to 20,000W of combined solar input and independently optimise energy harvest from each string — maximising yield across complex rooftop configurations, split orientations, and partial shading conditions.
  • AC Coupling for Retrofit Installations — Connects to an existing grid-tied PV system via AC coupling, allowing homeowners and businesses to add battery storage without replacing their current panels or inverter — a cost-effective upgrade for established solar installations.
  • Diesel Generator Input Support — Accepts charging from a diesel generator, ensuring a reliable backup source for farms, rural properties, and commercial sites during extended outages when solar alone cannot sustain 10kW of continuous load.

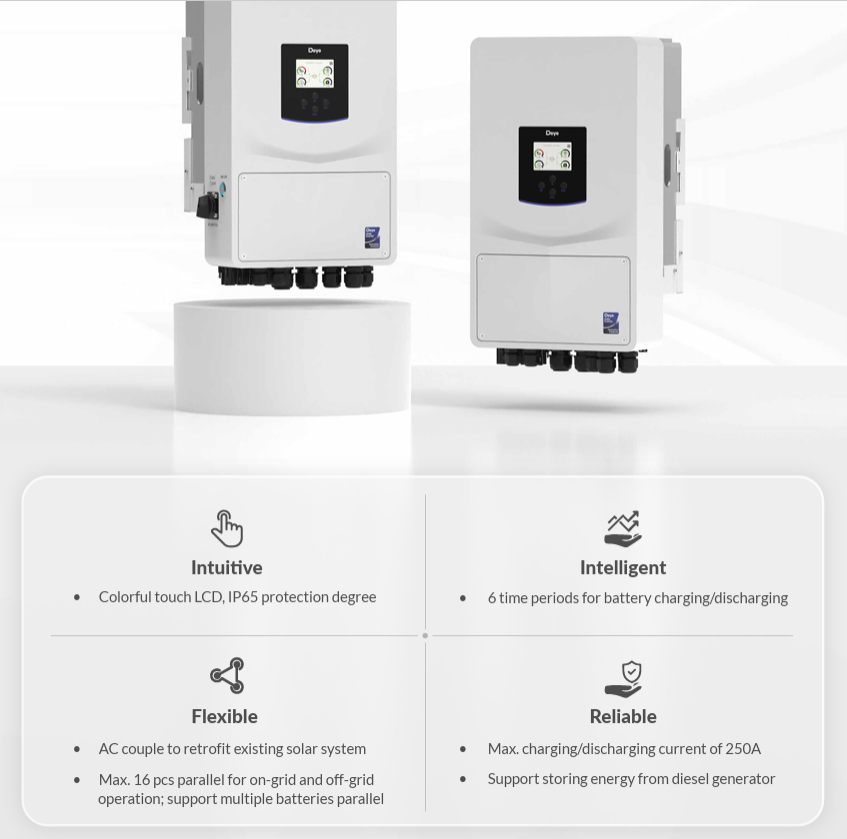

  • Colourful Touch LCD & Remote Monitoring — The upgraded colourful touch display provides full system status and control directly on the inverter — a meaningful improvement over the standard LCD screens of earlier models. Connect via Wi-Fi to the Deye Cloud platform to monitor real-time solar generation, battery state, and grid usage from any smartphone.
  • NRS 097 Grid Certified | IP65 All-Weather Enclosure — Holds current NRS 097 certification for South African grid connection, supporting COC sign-off by registered installers. The IP65-rated enclosure with intelligent air cooling manages the thermal demands of 10kW continuous output — reliable in both indoor and outdoor wall-mounting configurations.
