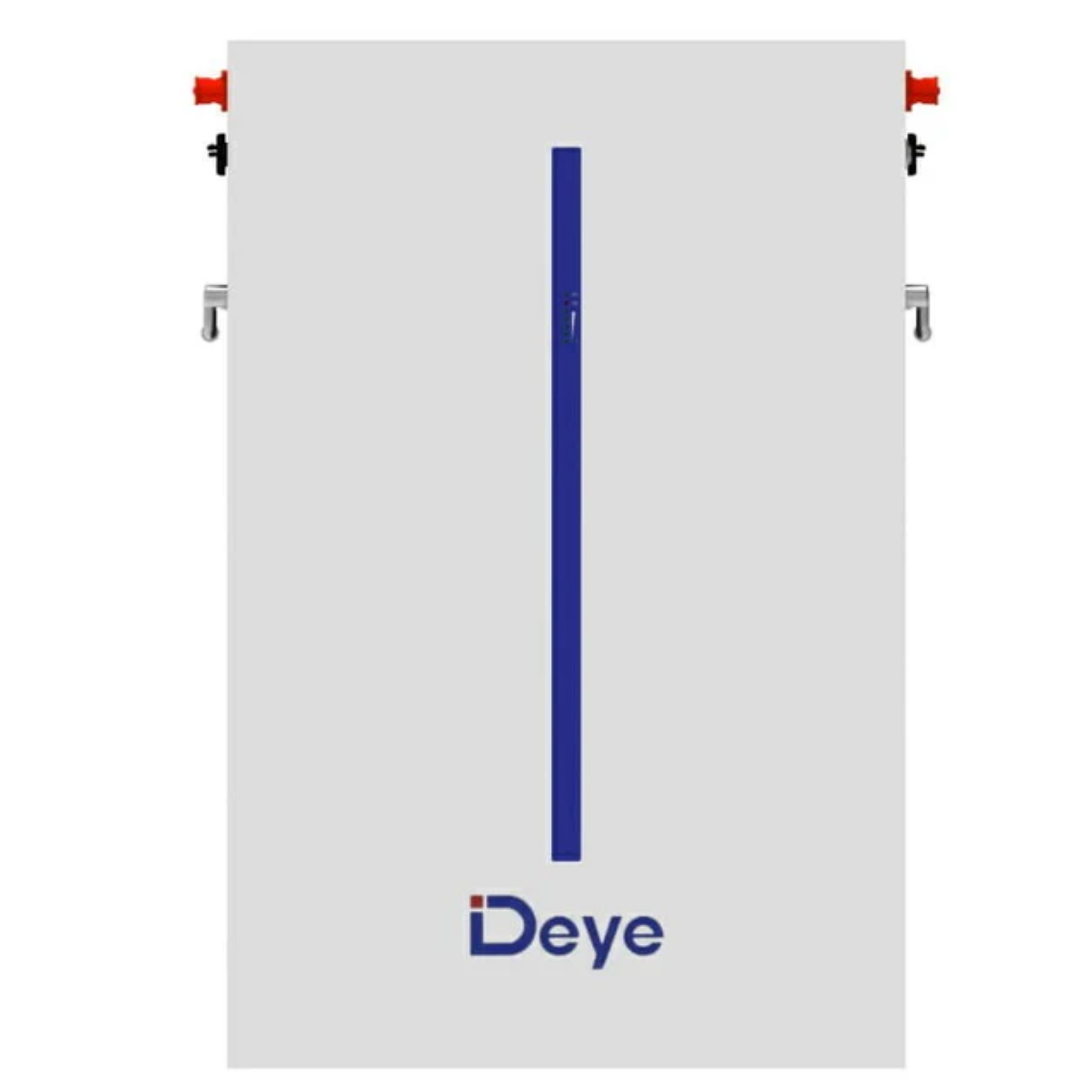

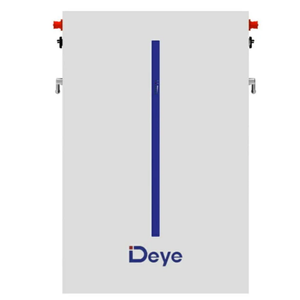

Deye 6.14kWh Lithium-Ion Battery
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Deye 6.14kWh L/V Battery: Your Energy Storage Solution
ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED
In the ever-evolving world of energy management and solar solutions, Deye continues to lead the way with innovative and reliable products. The Deye 6.14kWh Lithium-Ion Battery, part of the RW-M6.1 series, is a prime example of Deye’s commitment to quality and efficiency. Whether you’re looking to bolster your home’s energy storage or enhance your business’s solar capabilities, this battery is a game-changer.
Key Features:
- Intelligent Battery Management: The Deye 6.14kWh battery is equipped with an intelligent Battery Management System (BMS) that provides protection against overcharging, overheating, and short-circuiting. This ensures the safety and longevity of your energy storage system.
- Lithium Iron Phosphate (LFP) Chemistry: Deye embraces Cobalt-Free Lithium Iron Phosphate (LFP) technology for a safer and environmentally friendly power solution. LFP batteries are known for their extended lifespan, high efficiency, and superior power density.
- Compatibility: This battery seamlessly integrates with Deye inverters, and it has received Deye’s stamp of approval. It’s also certified for use with Sunsynk inverters, making it a versatile choice for solar installations.
- Convenience: The Deye 6.14kWh battery offers auto networking and automatic IP addressing, enhancing user convenience. These features simplify the setup and management of your energy storage system.
- Expandable: Need more power? No problem. You can expand your energy storage capacity by connecting up to 32 units, reaching a maximum capacity of 196kWh. This scalability ensures that your energy storage can grow with your needs.
Technical Specifications:
- Storage Size: 6.1kWh
- Voltage: 51.2V
- Battery Type: Lithium-ion
- Depth of Discharge (DoD): 90%
- Cycle Life: 6000 cycles
- Parallel Connectivity: Up to 32 units
- Mounting Options: Floor-Mounted, Wall-Mounted
Deye 6.14kWh Battery Specifications
Main Parameters.
- Battery Chemistry: LiFePO4.
- Capacity: 120Ah.
- Scalability (max. in 1 battery group): Max.32 in Parallel(196kWh).
- Nominal Voltage: 51.2V.
- Operating Voltage: 43.2~57.6V.
- Energy: 6.14kWh.
- Usable Energy [1]: 5.53kWh.
Charge/Discharge Current.
- Peak (2 mins,25°C): 150A.
- Recommend [2]: 60A.
- Max [2]: 100A.
Other Parameters.
- Recommend Depth of Discharge: 90%.
- Dimension (W/H/D): 460×720×143mm.
- Weight Approximate: 55kg.
- Master LED Indicator: 5LED(SOC:20%~100%), 3LED (working, alarming and protecting).
- IP Rating of Enclosure: IP65.
- Cycle Life : 25°C±2°C, 0.5C/0.5C,70%EOL 6000.
- Installation: Wall-Mounted or Floor-Mounted.
- Communication Port: CAN2.0 and RS485.
- Warranty: 10 years.
- Life Cycle Power During Warranty Period [3]: 20MWh @ 70%EOL.
- Certification : UL1973, FCC, IEC62619, CE, UN38.3.
