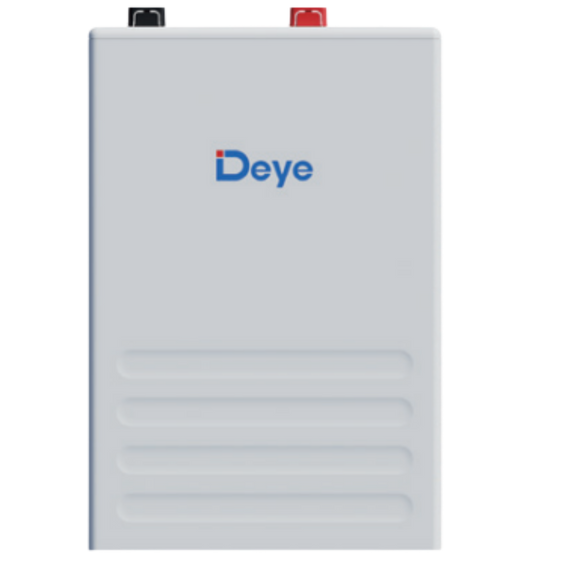

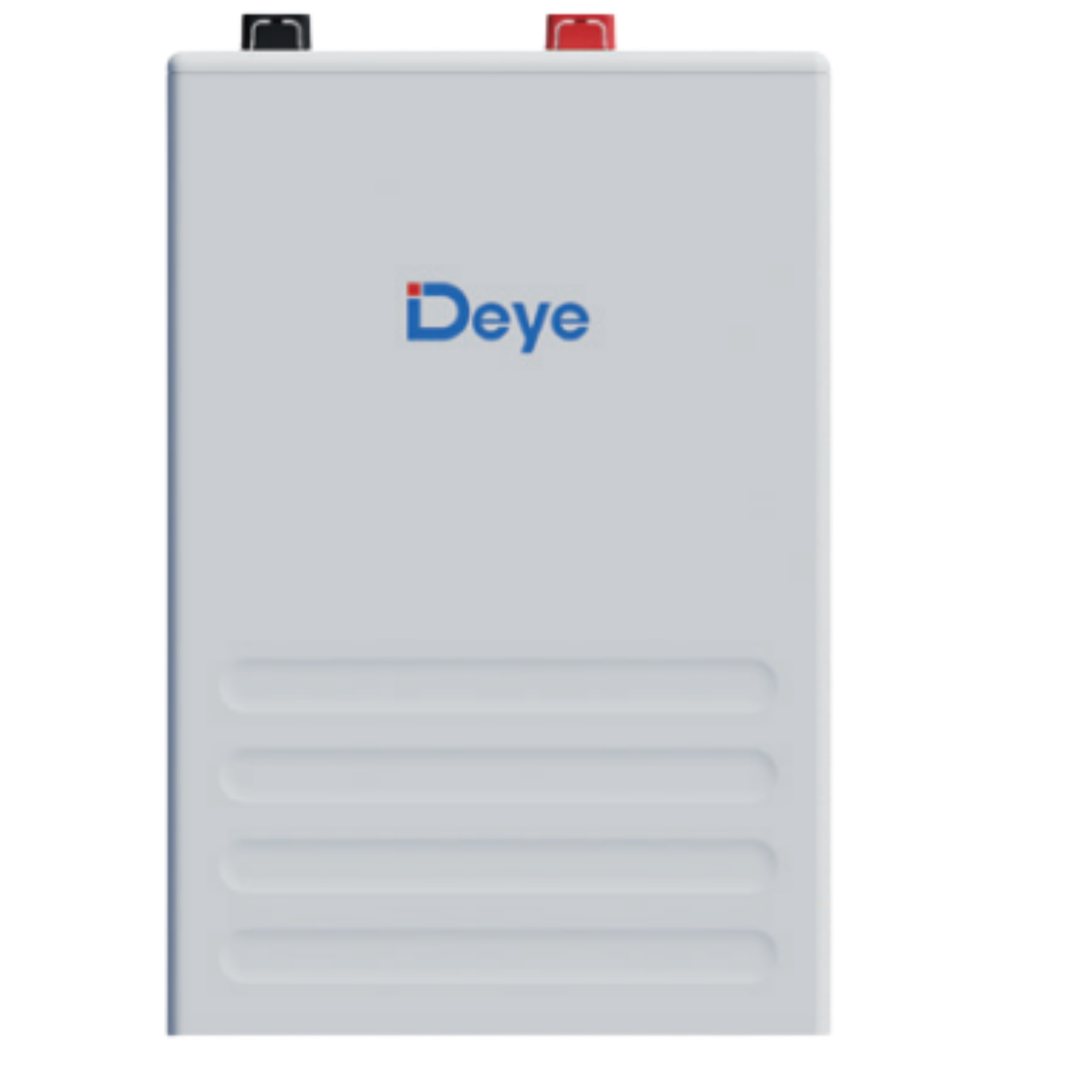

Deye SE-F5 PLUS 5.12KWH 51.2V 100AH
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Deye SE-F5 5.12KWH 51.2V 100AH
ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED

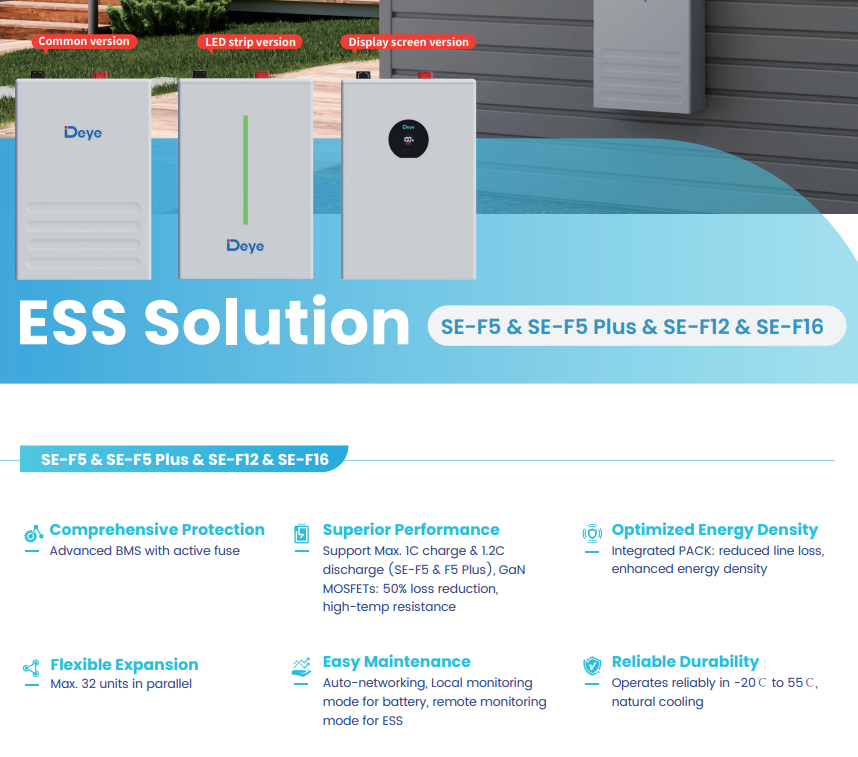

The Deye SE-F5 Battery is a premium lithium iron phosphate (LiFePO₄) energy storage unit engineered for residential and commercial energy systems. With a nominal capacity of 5.12kWh and 51.2V, it delivers reliable performance, advanced safety features, and flexible scalability.
Key Features:
Advanced Battery Management System (BMS): Integrated active fuse protection ensures comprehensive safety.
High Efficiency: Supports up to 1C charge and 1.2C discharge rates, with GaN MOSFETs reducing energy loss by 50%.
Flexible Expansion: Connect up to 32 units in parallel for scalable energy storage.
Durable Design: Operates reliably in extreme temperatures from -20°C to 55°C, with natural cooling.
Smart Monitoring: Supports local and remote monitoring via Bluetooth and app integration.
Optimized Energy Density: Integrated PACK design minimizes line loss and maximizes energy output.
Installation Versatility: Wall-mounted, floor-mounted, and stack-mounted options

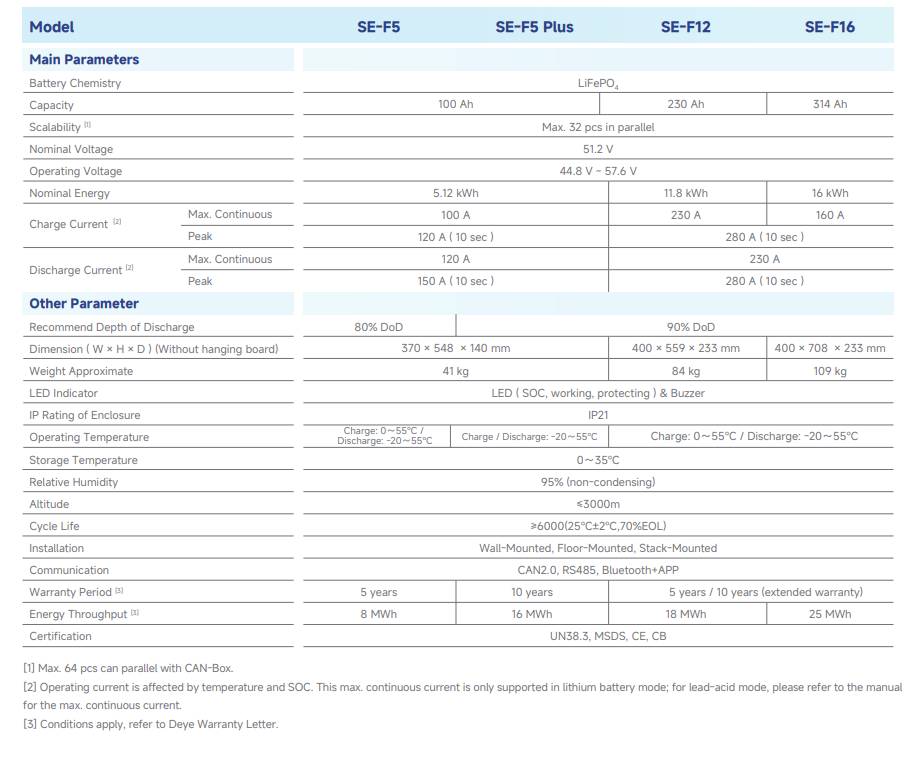

Specifications:
- Model: SE-F5 Plus
- Battery Chemistry: LiFePO4
- Nominal Capacity: 100 Ah
- Nominal Voltage: 51.2 V
- Operating Voltage: 44.8 V ~ 57.6 V
- Nominal Energy: 5.12 kWh
- Scalability: Max. 32 pcs in parallel
- Charge Current: Max 100 A (Continuous), 120 A (Peak for 10 seconds)
- Discharge Current: Max 120 A (Continuous), 150 A (Peak for 10 seconds)
- Depth of Discharge (DoD): Recommended 80%
- Dimension: 370 × 548 × 140 mm
- Weight: Approx. 41 kg
- Communication Port: CAN2.0, RS485
- IP Rating: IP20
- Storage Temperature: 0 to 35℃
- Relative Humidity: 95%
- Cycle Life: ≥6000 cycles
- Warranty : 10 Years
