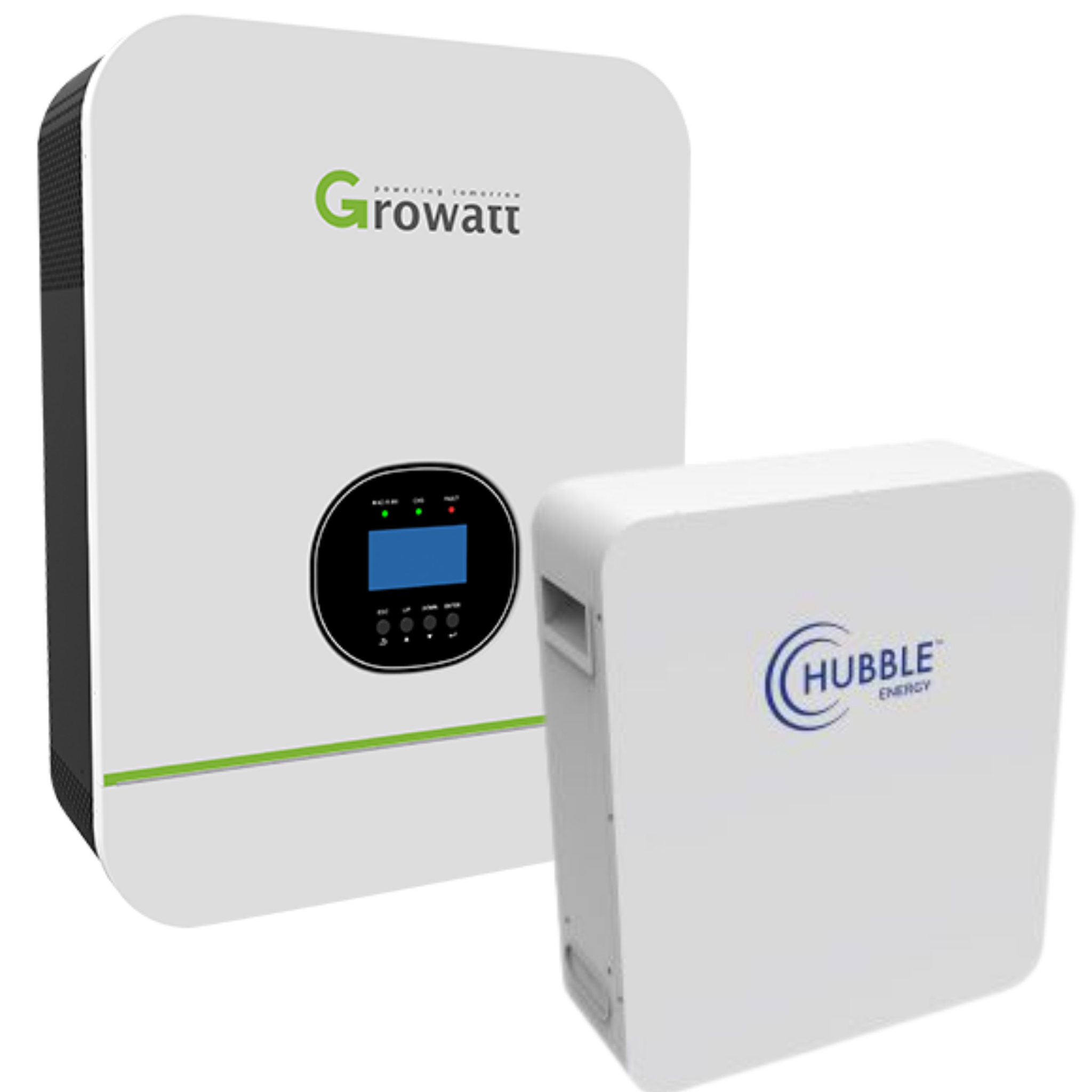

Growatt 3000W Solar Ready Hybrid Inverter Trolley + 2.5 KWH Hubble Lithium Battery

The perfect solution for load shedding!

The all-in-one portable plug-and-play inverter battery trolley system  (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.

 PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE

What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?

It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers,  chargers, and wifi running during load shedding. Solar ready: Add a solar panel and charge your batteries when there is no power.

How much battery backup power will I have when the power is off?

If you connect 100w which is usually a TV, Wifi, Lights, etc. This portable system will last 25 Hours at a 100% dod.

Inverter Specifications & Fixtures:

Growatt Hybrid Inverter 24V 3KW Inverter Pure Sine Wave SPF 3000TL HVM-24+ Wifi Dongle

Technical Details:

• Rated Power: 3000VA/ 3000W
• Parallel Capability: No
• Integrated MPPT charge controller: Yes
• Works with battery: Yes
• Surge Power: 6000VA

• Waveform: Pure sine wave

Solar Charger:

• Maximum PV Array Power: 1500W
• MPPT Range @ Operating Voltage: 30VDC ~80VDC
• Maximum PV Array Open Circuit Voltage: 102VDC
• Maximum Solar Charge Current: 50A
• Maximum Efficiency: 93%

Battery Specifications:

Nominal Energy 2.56 kWh
*Rated Capacity 100 Ah
Nominal Voltage 25.6 V
Equalized Charge Voltage 27.6 V
Max. Continuous Charging Current 100 A
Max. Continuous Discharging Current 100 A
Depth of Discharge 100%
C Rating 1.0 C
Cells LiFePO4 (LFP)
Cycle Life @ 1C +/- 6000 Cycles @ 50% DOD, Above 3000 cycles @ 100% DOD
Design Life +/- 15 Years
Parallel Parallel connection up to 15 packs with full communications
Ports 1x CAN-bus, 2x Battery Link Ports
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Operating Temperature
Charging: 0 to +55°C
Discharging: -10 to +55°C
Storage: -10 to +55°C
Weight Approx. 25 Kg
Dimensions (WxDxH) mm 420mm x 153mm x 490mm
Outer Package Material White bake lacquer steel case
Certification CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015

Plug & Play System Size & Weight:

50cm (H) x 61 (L)  x 61 (W)

40KG

This all-in-one system Includes:

1x Growatt Hybrid Inverter 24V 3KW Inverter Pure Sine Wave SPF 3000TL HVM-24+ Wifi Dongle

2 Years Warranty on the inverter

1xHubble Lithium Battery Wallmount 25V 2.5kWh 100AH AM-4 V3

10 Years Warranty on The Battery

1x Battery Fuse

1x 1m Power Cable With Wall Plug

1x 1m Cable With Power Socket

1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
