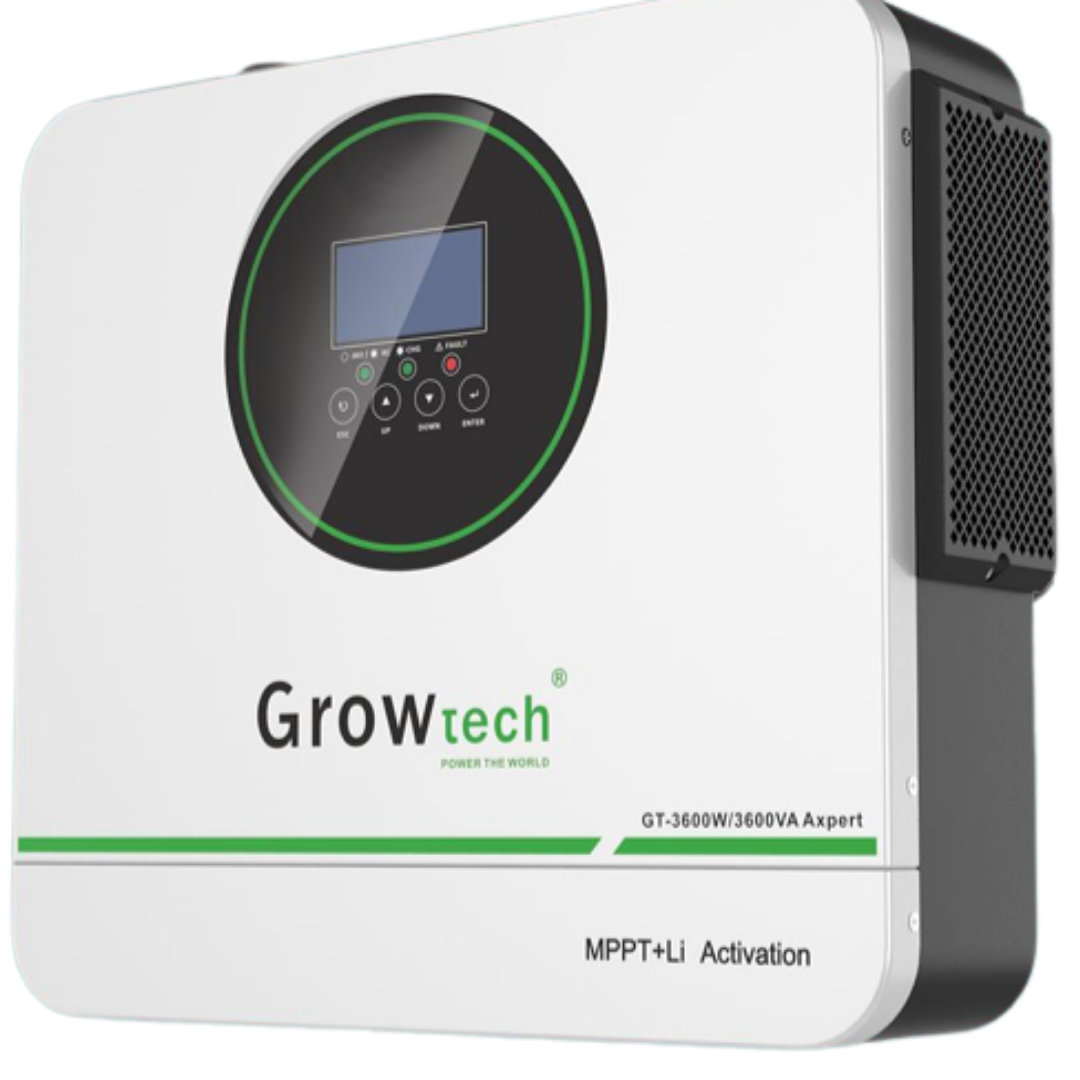

Growtech 3.6KW 3600W 100A 24V MPPT Solar Hybrid Inverter GT-3600W/3600VA Axpert

Growtech 3.6KW 3600W 100A 24V MPPT Solar Hybrid Inverter GT-3600W/3600VA Axpert

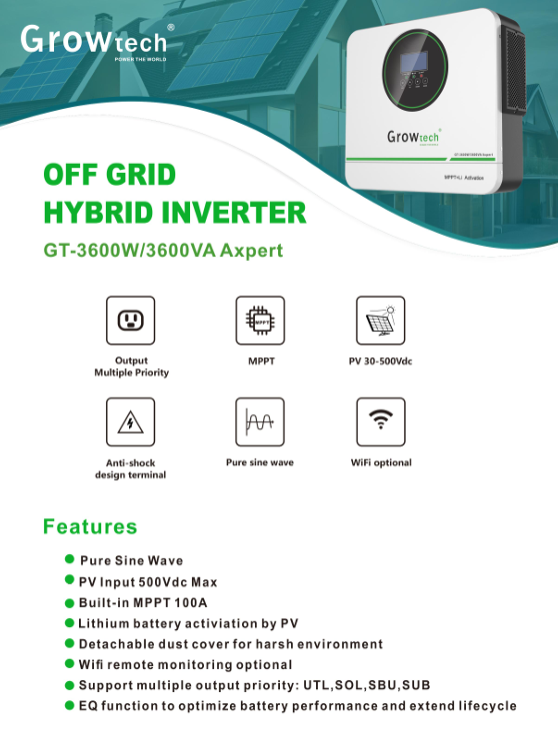

The GroWtech® GT-3600W/3600VA Axpert Inverter is a compact, lightweight, and efficient power solution, perfect for load-shedding and small off-grid setups. With pure sine wave output, MPPT solar charging, and high efficiency (96%), it ensures stable and reliable power for essential appliances. Designed for easy installation, it supports both solar and AC charging, making it an ideal backup power option for homes and businesses.

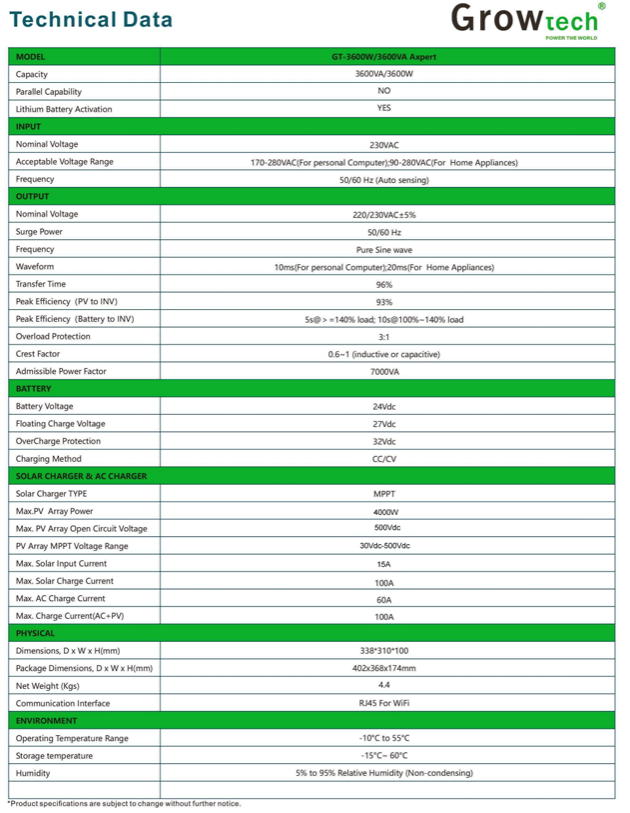

Capacity & Performance

• Rated Power: 3600VA / 3600W
• Parallel Operation: NO
• Lithium Battery Activation : YES

Input Specifications

• Nominal Voltage: 230VAC
• Voltage Range:
  • 170-280VAC (For Personal Computers)
  • 90-280VAC (For Home Appliances)
• Frequency: 50/60 Hz (Auto Sensing)

Output Specifications

• Nominal Voltage: 220/230VAC ±5%
• Surge Power: 7000VA
• Frequency: 50/60 Hz
• Waveform: Pure Sine Wave
• Transfer Time:
  • 10ms (For Personal Computers)
  • 20ms (For Home Appliances)
• Efficiency:
  • PV to Inverter: 96%
  • Battery to Inverter: 93%
• Overload Protection: 3:1
  • 5s @ ≥140% Load
  • 10s @ 100%-140% Load
• Crest Factor: 0.6 ~ 1 (Inductive or Capacitive)
• Admissible Power Factor: 7000VA

Battery Specifications

• Battery Voltage: 24VDC
• Floating Charge Voltage: 27VDC
• Overcharge Protection: 32VDC
• Charging Method: CC/CV (Constant Current / Constant Voltage)

Solar & AC Charger Specifications

• Solar Charger Type: MPPT
• Maximum PV Array Power: 4000W
• Maximum PV Array Open Circuit Voltage: 500VDC
• MPPT Voltage Range: 30VDC – 500VDC
• Maximum Solar Input Current: 15A
• Maximum Solar Charge Current: 100A
• Maximum AC Charge Current: 60A
• Maximum Total Charge Current (AC + PV): 100A

Physical Specifications

• Unit Dimensions (D x W x H): 338 × 310 × 100 mm
• Package Dimensions (D x W x H): 402 × 368 × 174 mm
• Net Weight: 4.4 kg
• Communication Interface: RJ45 (WiFi Compatible)

Environmental Conditions

• Operating Temperature Range: -10°C to 55°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% to 95% Relative Humidity (Non-Condensing)

1 Year Repair Warranty

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
