Growtech 3.6KW 3600W MPPT 100 AH 2.56 Felicity Lithium Combo Kit

Growtech 3.6KW 3600W MPPT 100 AH 2.56 Felicity Lithium Combo Kit

Inverter Specifications :

Growtech 3.6KW 3600W 100A 24V MPPT Solar Hybrid Inverter GT-3600W/3600VA Axpert

The GroWtech® GT-3600W/3600VA Axpert Inverter is a compact, lightweight, and efficient power solution, perfect for load-shedding and small off-grid setups. With pure sine wave output, MPPT solar charging, and high efficiency (96%), it ensures stable and reliable power for essential appliances. Designed for easy installation, it supports both solar and AC charging, making it an ideal backup power option for homes and businesses.

Capacity & Performance

• Rated Power: 3600VA / 3600W
• Parallel Operation: NO
• Lithium Battery Activation : YES

Input Specifications

• Nominal Voltage: 230VAC
• Voltage Range:
  • 170-280VAC (For Personal Computers)
  • 90-280VAC (For Home Appliances)
• Frequency: 50/60 Hz (Auto Sensing)

Output Specifications

• Nominal Voltage: 220/230VAC ±5%
• Surge Power: 7000VA
• Frequency: 50/60 Hz
• Waveform: Pure Sine Wave
• Transfer Time:
  • 10ms (For Personal Computers)
  • 20ms (For Home Appliances)
• Efficiency:
  • PV to Inverter: 96%
  • Battery to Inverter: 93%
• Overload Protection: 3:1
  • 5s @ ≥140% Load
  • 10s @ 100%-140% Load
• Crest Factor: 0.6 ~ 1 (Inductive or Capacitive)
• Admissible Power Factor: 7000VA

Solar & AC Charger Specifications

• Solar Charger Type: MPPT
• Maximum PV Array Power: 4000W
• Maximum PV Array Open Circuit Voltage: 500VDC
• MPPT Voltage Range: 30VDC – 500VDC
• Maximum Solar Input Current: 15A
• Maximum Solar Charge Current: 100A
• Maximum AC Charge Current: 60A
• Maximum Total Charge Current (AC + PV): 100A

Physical Specifications

• Unit Dimensions (D x W x H): 338 × 310 × 100 mm
• Package Dimensions (D x W x H): 402 × 368 × 174 mm
• Net Weight: 4.4 kg
• Communication Interface: RJ45 (WiFi Compatible)

Environmental Conditions

• Operating Temperature Range: -10°C to 55°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% to 95% Relative Humidity (Non-Condensing)

Battery Specifiications :

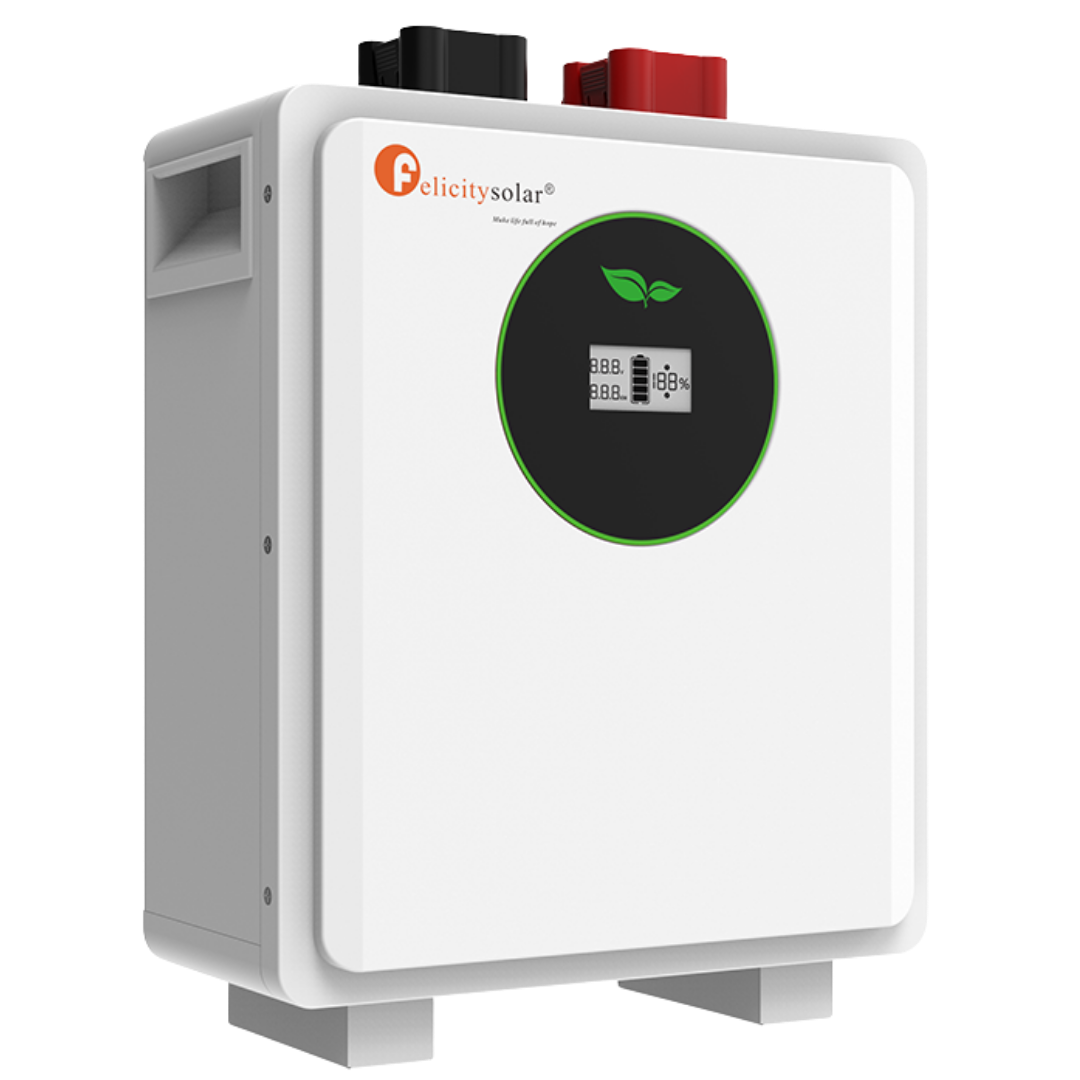

Felicty 25.6v 100Ah 2.56 kWh Lithium Battery FLA24100WG2

Features :

• Remote Monitoring Via FSolar APP

• Max 15 Units Parallel

• Wall / Floor Mounted Installation

• High Compatibility With Leading Inverter Brands

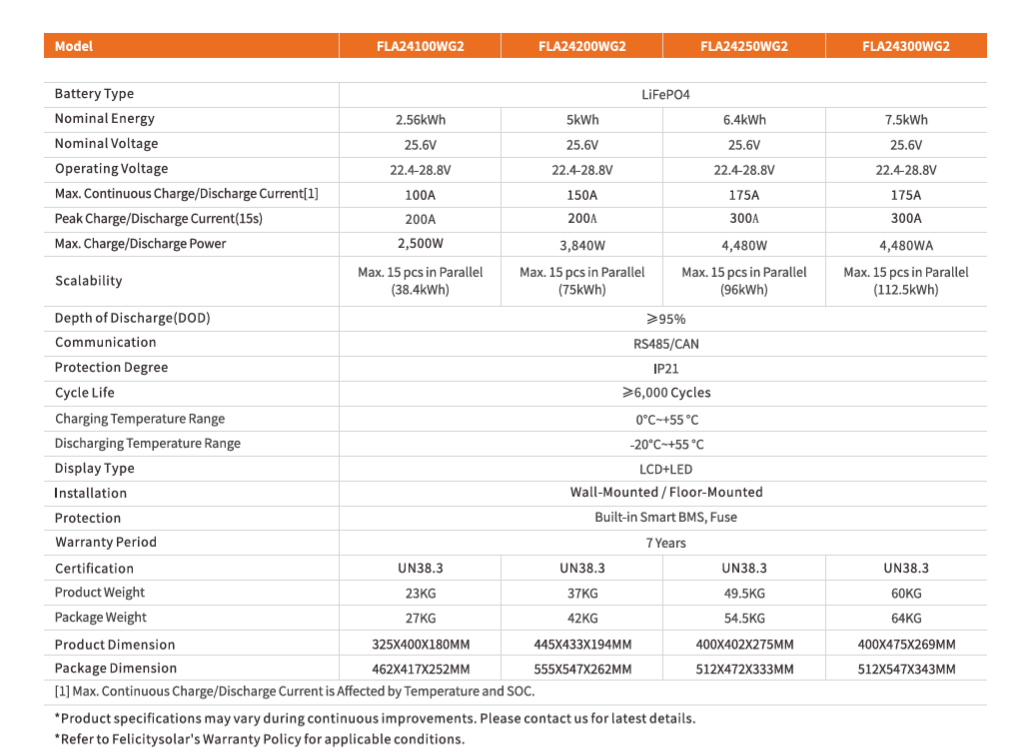

Specifications :

Battery Type Nominal Energy : LiFePO4
Nominal Voltage : 25.6V
Operating Voltage : 22.4-28.8V
Max. Continuous Charge/Discharge Current[1] : 100A
Peak Charge/Discharge Current(15s) : 200A
Max. Charge/Discharge Power : 2500W
Scalability : MAX 15 IN PARRALEL
Depth of Discharge (DOD) : 95%
Communication :  RS485/CAN
Protection Degree : IP21
Cycle Life : 6000 CYCLES
Display Type : LCD+LED
Installation :  WALL / FLOOR MOUNTED
Protection :  Built In Smart BMS,FUSE
Warranty Period : 7 Years
Certification : UN38.3
Product Weight : 23KG
Package Weight :  27KG
Product Dimension : 325 X 400 X 180MM
Package Dimension : 462 X 417 X 252MM

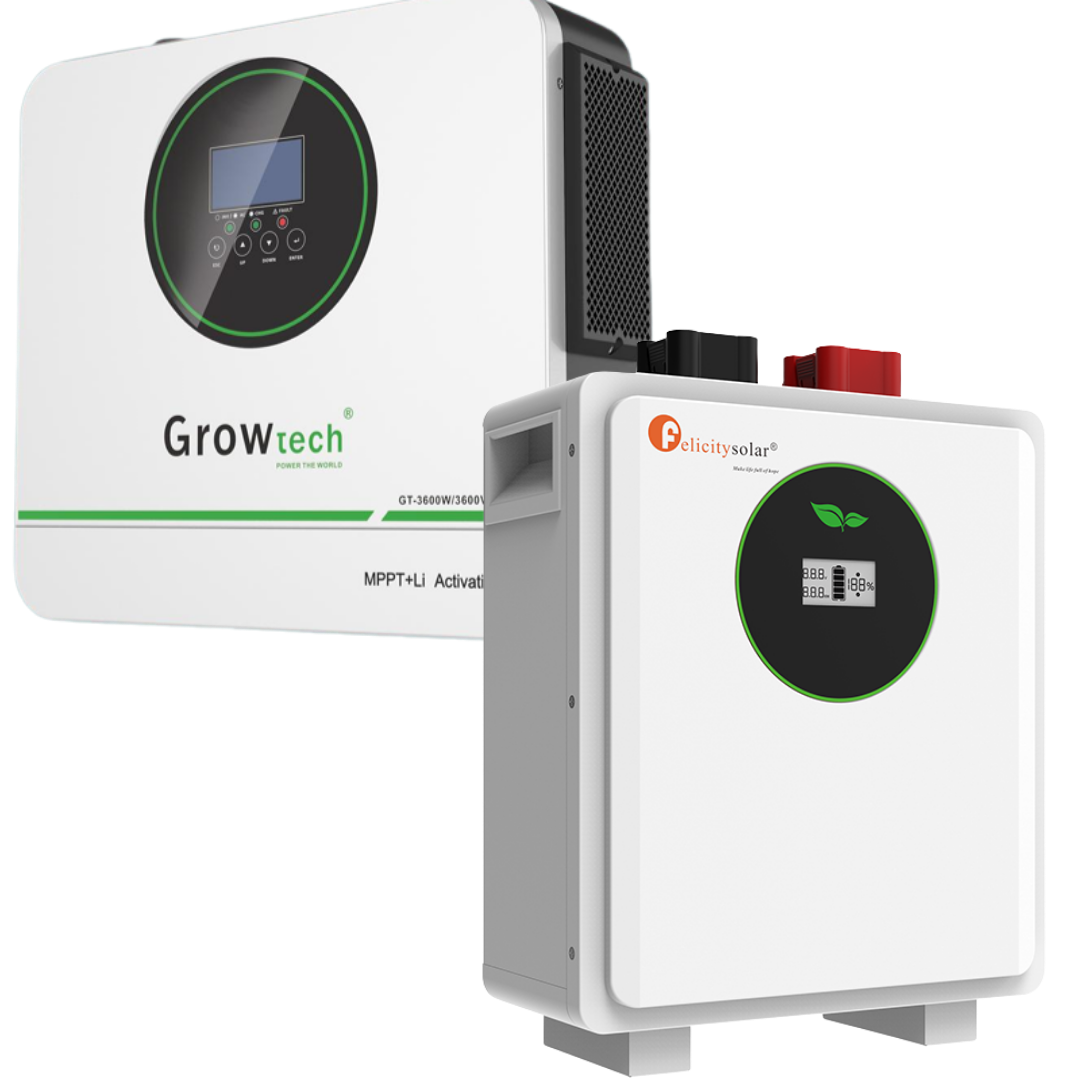

Package Includes:

1x Growtech 3.6KW 3600W 100A 24V MPPT Solar Hybrid Inverter GT-3600W/3600VA Axpert (1 Year Warranty)
1x Felicty 25.6v 100Ah 2.56 kWh Lithium Battery FLA24100WG2 (7 Years Warranty)
