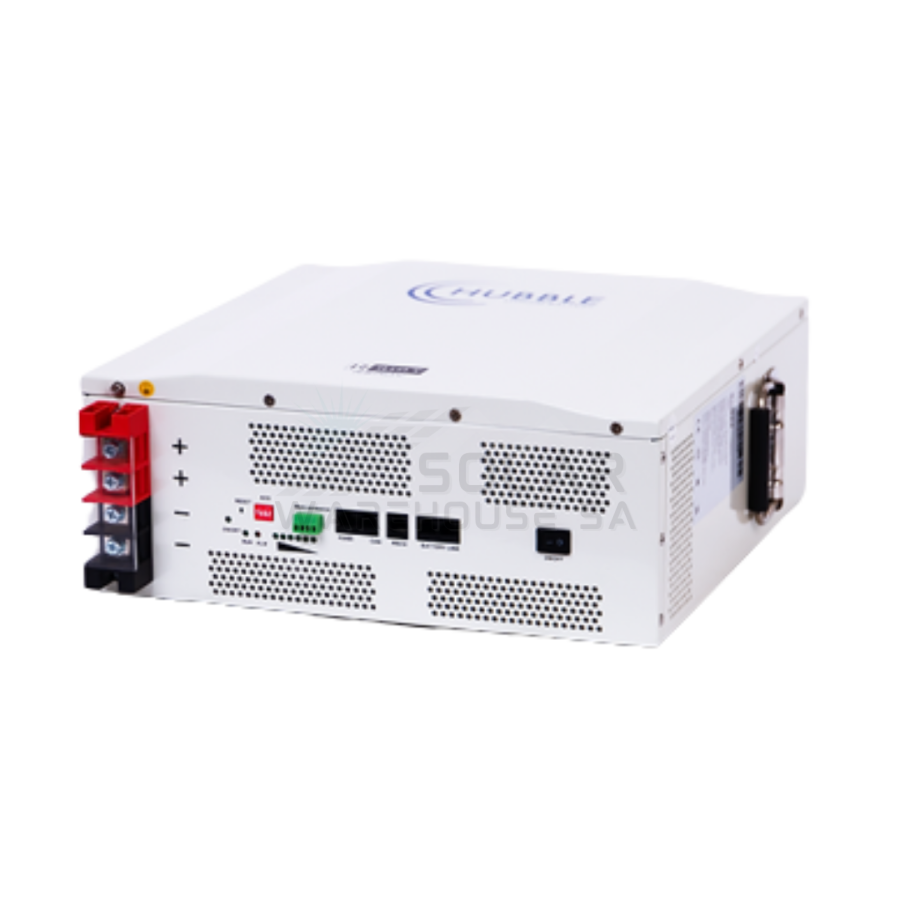

Hubble Lithium Battery Wallmount 25.5V 2.75kWh AM-4
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are The AM-4 is a 25.5V Lithium battery we are producing to cater for the 24V inverter market. The AM-4 is the perfect fit for 24V inverters where you still have the need to install lithium.
specification: 25.5V 2.6KWh
Rating: 1C
Parallel: up to 15 units per string
Extras: Battery Link & DC cables included
Internal Fire Suppression System: Yes
CAN Bus: Yes
Hubble Cloudlink Ready: Yes
Rated Capacity (5HR): 125 Ah
Nominal Voltage: 25V
Design Capacity: 3.1kWh
Equalized Charge Voltage: 29V
Max. Continuous Charging Current: 115A
Max. Continuous Discharging Current: 100A
C Rating: 1.0C
Weight: Approx. 21kg
Display: None
Parallel: Parallel connection up to 15 packs with full communications
Dimensions: 375mm (w) x 147mm (d) x 371mm (h)
Ports: 1x CAN-bus, X2 Battery Link Ports
Cells: New Li-ion Prismatic Cells
Design Life: ±15 Years
Cycle Life @ 1C: Above 6000 cycles @50% DOD, +/- 3 000 Cycles @ 100% DOD
Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material: White baked lacquer steel case
Operating Temperature
-
Charging: 0°C to +55°C
-
Discharging: -10°C to +55°C
-
Storage: -10°C to +55°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Battery Warranty:
https://www.hubblelithium.co.za/_files/ugd/49fdd5_006693318a91462aba88ffe9ea36aec3.pdf
The warranty period commences on the date of purchase from Hubble Lithium (Pty) Ltd (“Hubble Lithium”) as reflected in the relevant Hubble Lithium tax invoice. Hubble Lithium warrants that the Battery cells will achieve at least 10 years’ service life or deliver at least 3000 charge-discharge cycles as counted by the BMS, which ever event occurs first.
