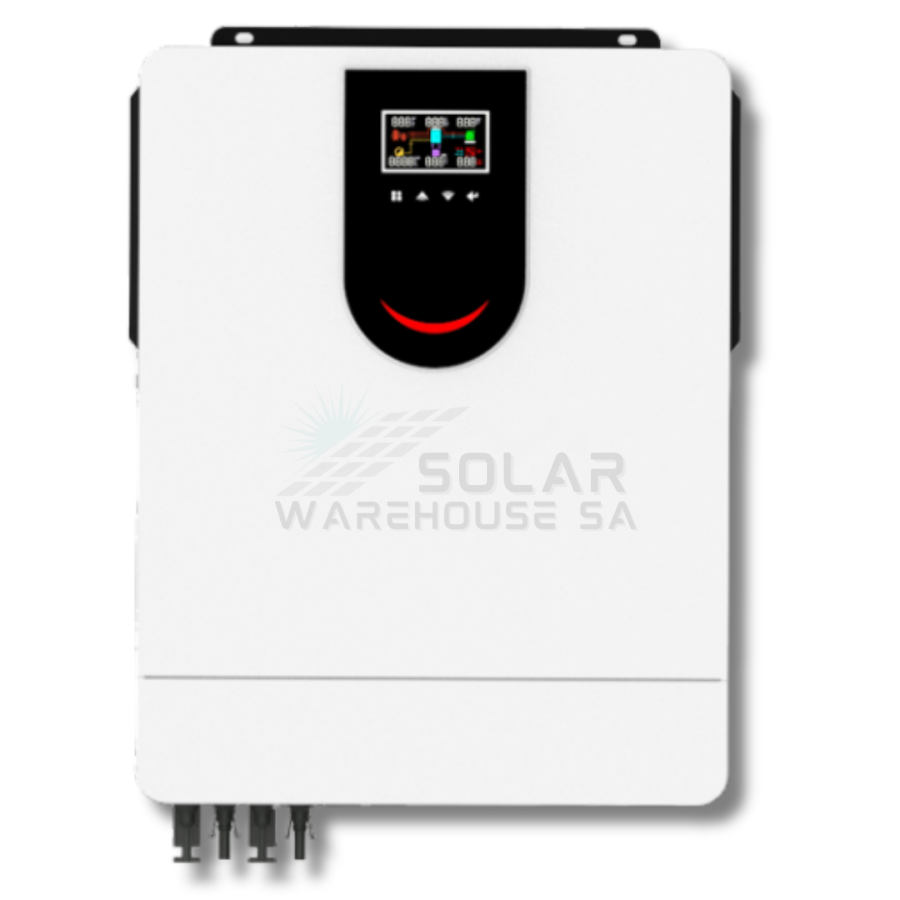

Hybrid On/Off Grid Inverter 10.2 KVA 10200 Watt S-2400 Conderenergy (DEMO PRODUCT)
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Hybrid On/Off Grid Inverter 10.2 KVA 10200 Watt 2x MPPT Inputs 48V- Conderenergy S-2400
Demo Used Products Includes 6 Months Repair Warranty
Condition 10/10
Box : No
Manaul : No
Cables : No
Wifi Dongle : No
Working Conditon : 100%

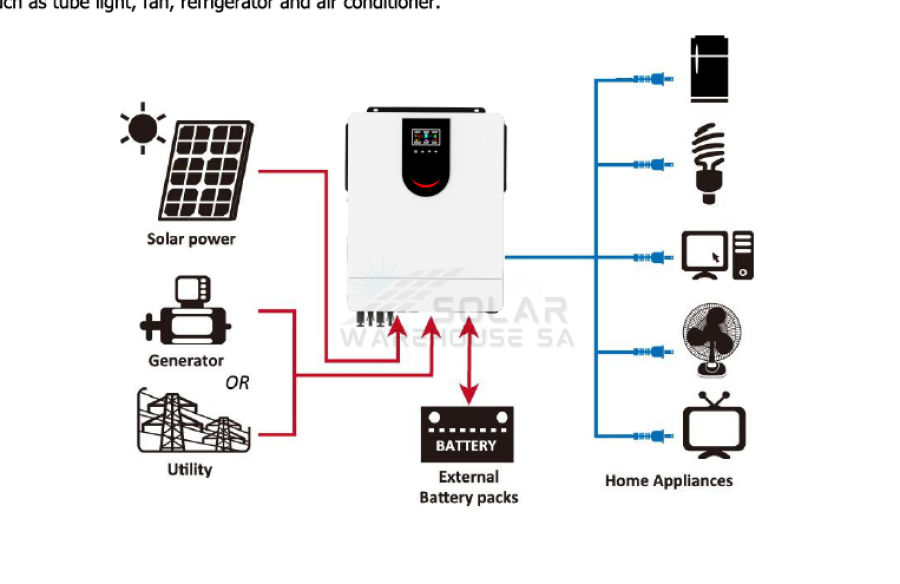

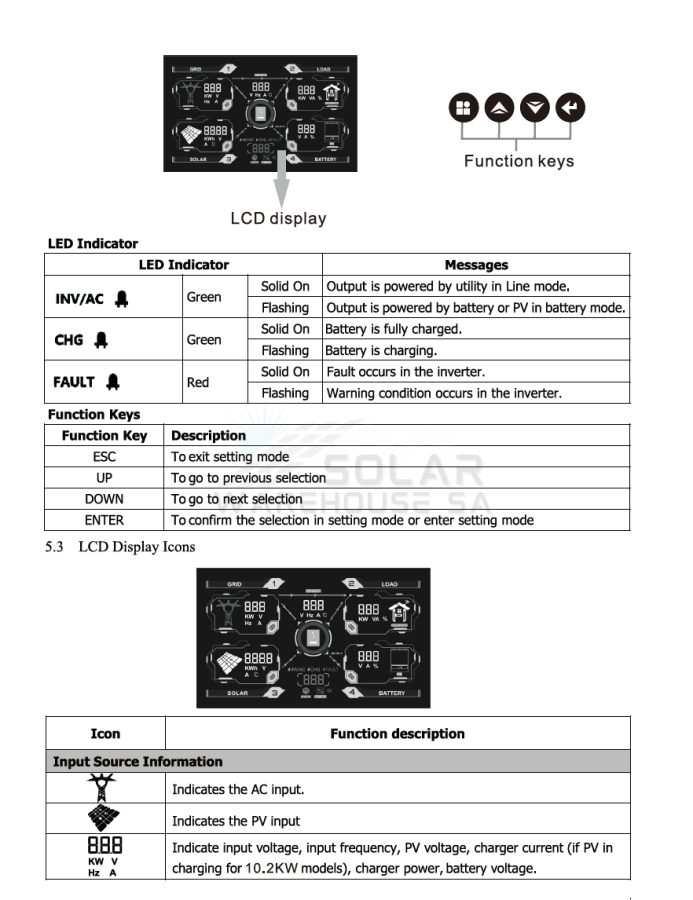

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible with mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function

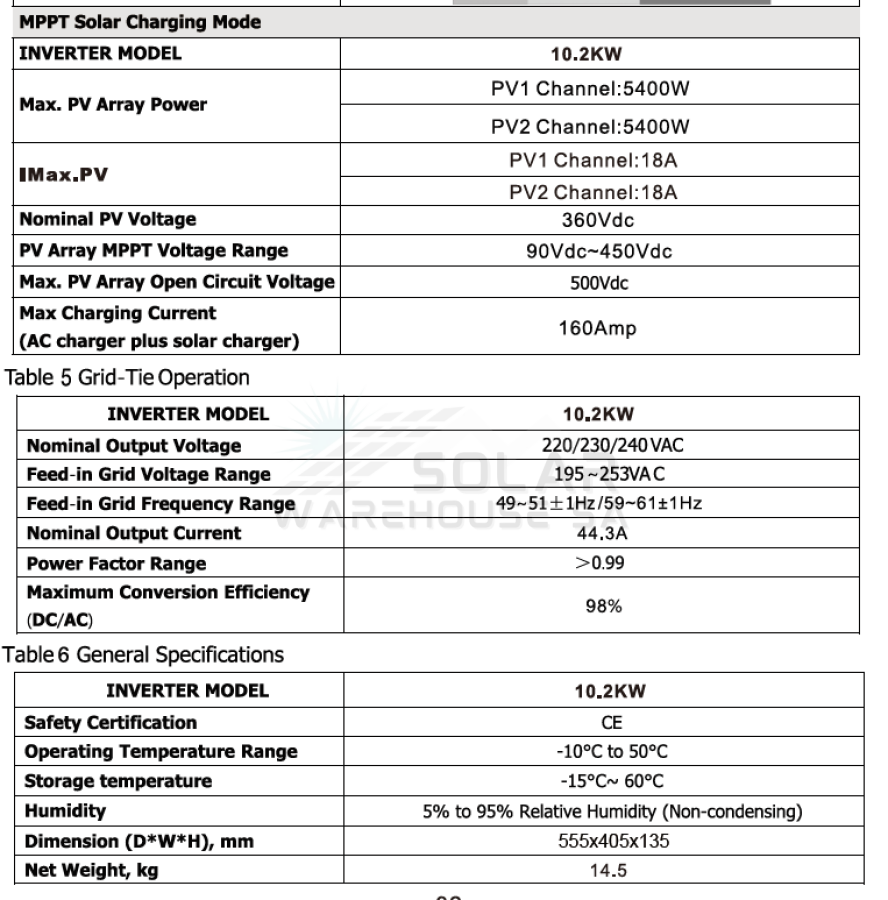

2X PV INPUTS:
Max. PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90Vdc~450Vdc
Max. PV Array Power
PV1 Channel 5400W
PV2 Channel 5400W
RGB Light
Battery Mode: Red Light
Utility Mode: Blue Light
PV Mode: Purple Light

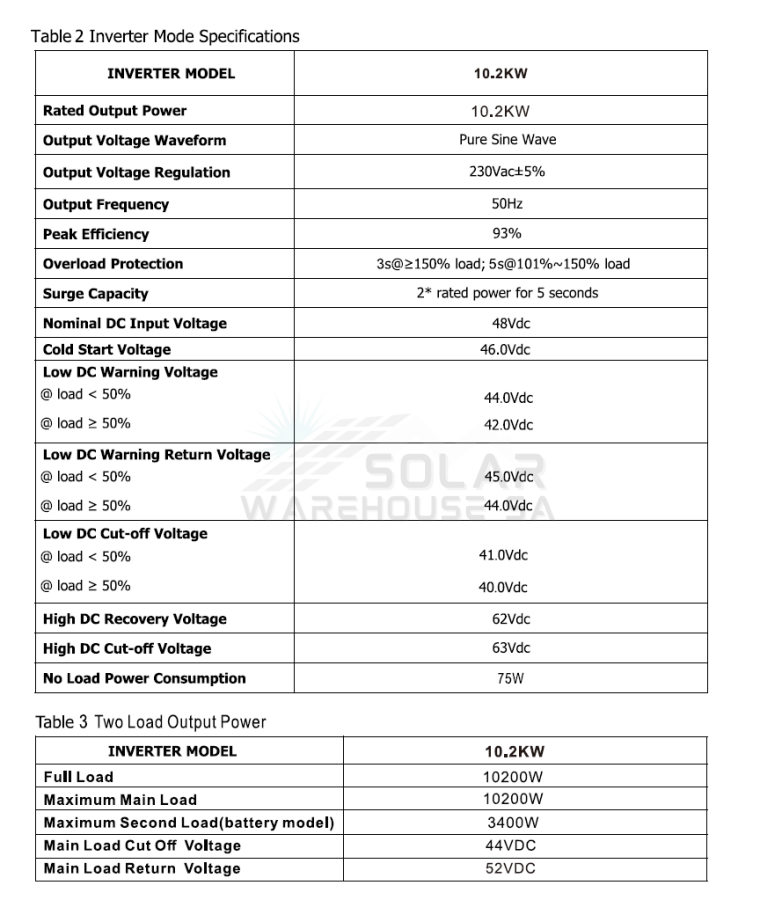

GRID/AC OUTPUT:
Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range 195-253Vac Feed-in Gnd Frequency Range 49-51±1Hz Nominal Output Current: 15 7A Power Factor Range >0.99
Maximum Conversion Efficiency (DC/AC).97% Nominal Operating Frequency 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load 10200W
Maximum Main Load 10200W
Maximum Second Load 3400W
Size:
555 X 405 X 135
14.5Kg
