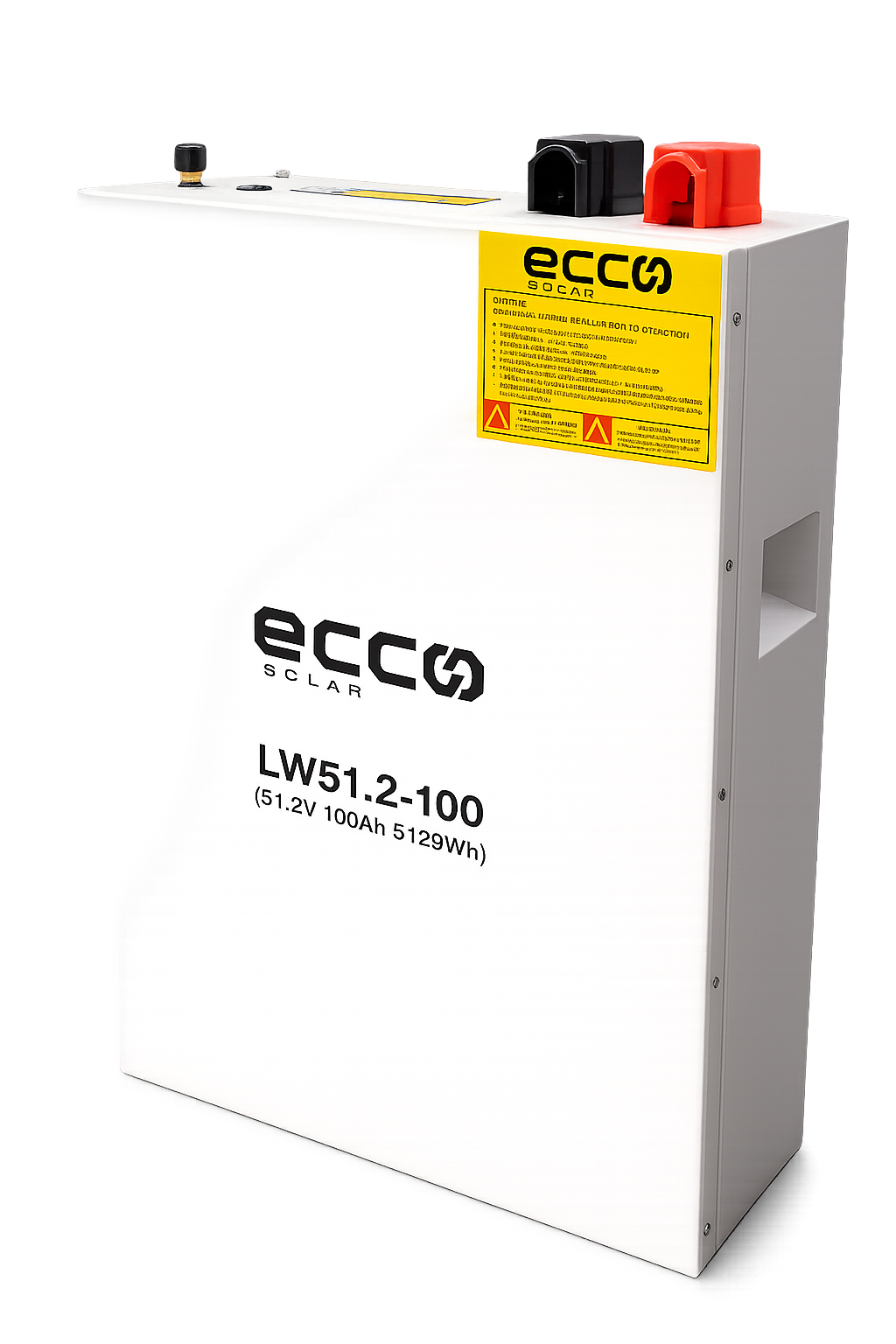

Leoch 51.2v 100ah 5.12kWh Lithium Battery LW51.2-100 Wall-Mounted
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Leoch 51.2v 100ah 5.12kWh Lithium Battery LW51.2-100 Wall-Mounted
Features
- Compact Size
- Eco-Friendly
- Long Lifespan
- Built-in BMS
- Can be used in parralel with Ecco W51100 & ELV51100 Battery.
Product Introduction
Up to 15 groups of parallel connections, flexible
capacity expansion
Compatible with mainstream inverters in the
market, providing more options
Built-in BMS provides multiple protection
functions

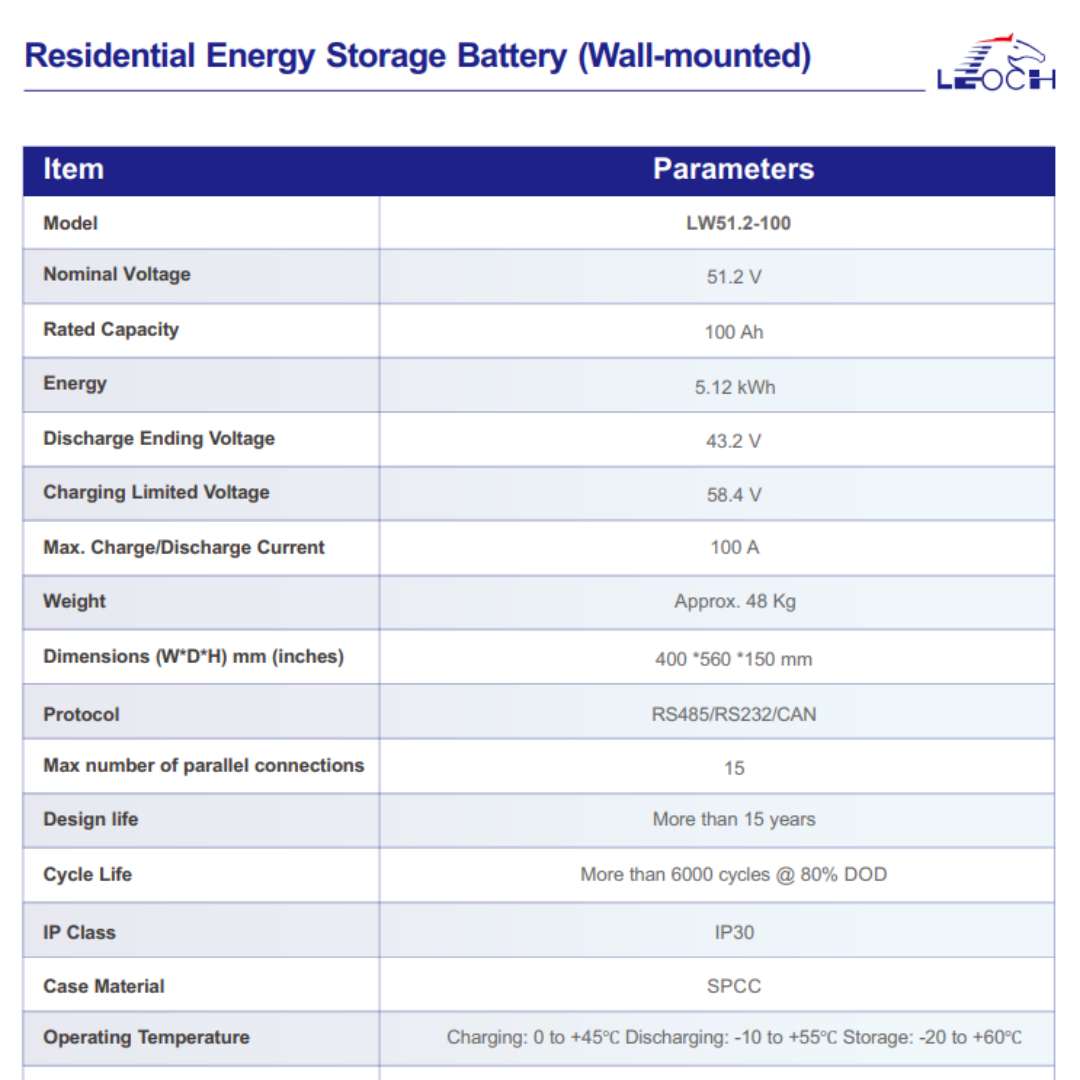

Specifications :
Model : LW51.2-100
Nominal Voltage : 51.2 V
Rated Capacity : 100 Ah
Energy : 5.12 kWh
Discharge Ending Voltage : 43.2 V
Charging Limited Voltage : 58.4 V
Max. Charge/Discharge Current : 100 A
Weight Approx. 48 Kg
Dimensions (W*D*H) mm (inches) : 400 *560 *150 mm
Protocol : RS485/RS232/CAN
Max number of parallel connections : 15
Design life : More than 15 years
Cycle Life : More than 6000 cycles @ 80% DOD
IP Class : IP30
Case Material : SPCC
Operating Temperature Charging : 0 to +45℃ Discharging: -10 to +55℃ Storage: -20 to +60℃
Warranties:
5 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
