Megatron 51.2v 100AH 5.12Kwh Slim Lithium Battery
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11

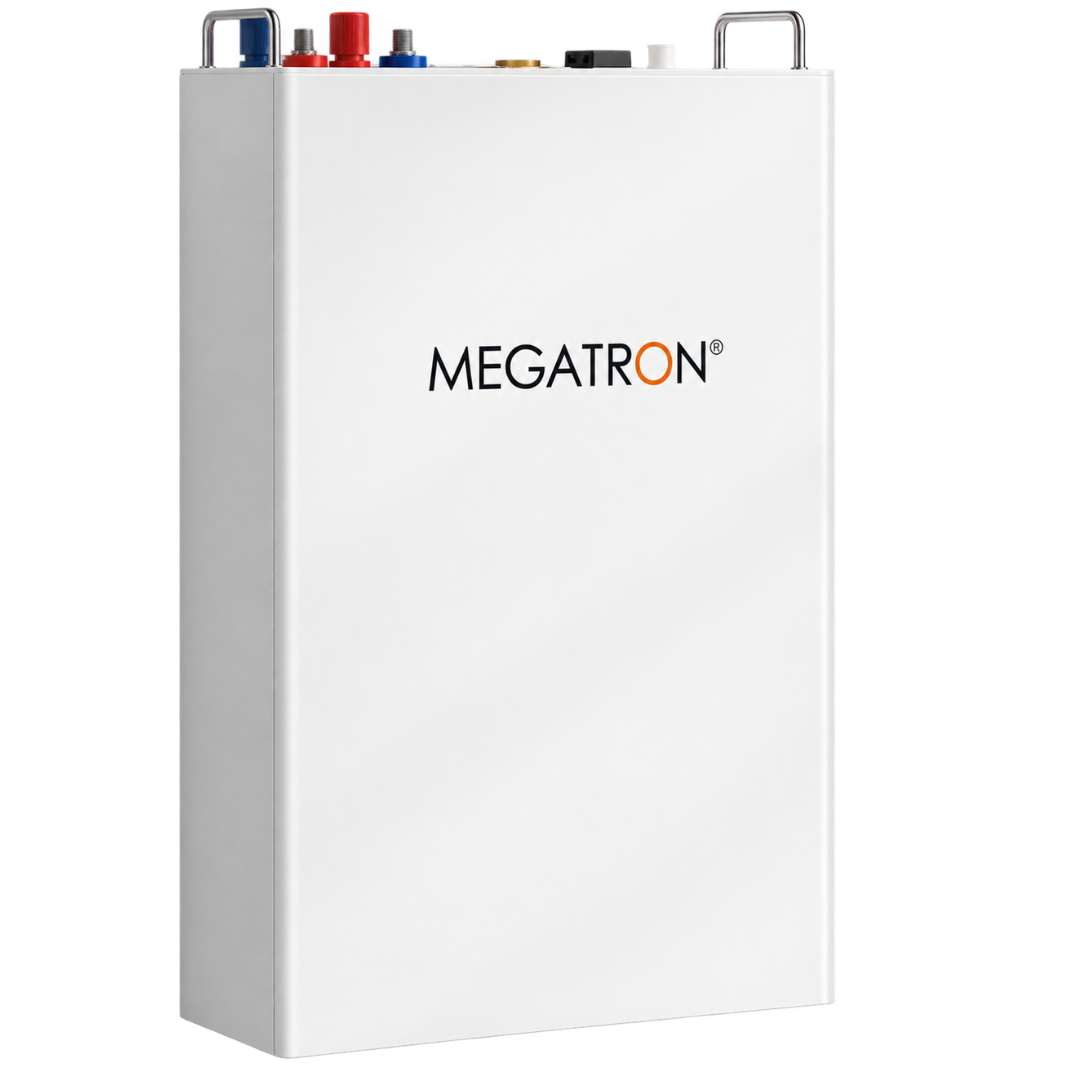

There are Megatron 51.2v 100AH 5.12Kwh Slim Lithium Battery

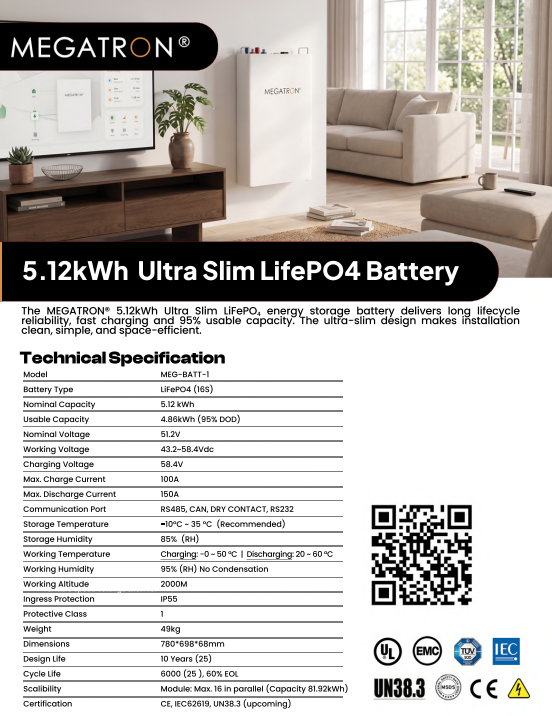

The MEGATRON®5.12kWh Ultra Slim LiFePO₄energystorage batterydeliverslong lifecycle
reliability,fastchargingand95% usablecapacity.Theultra-slim designmakesinstallation
clean,simple,andspace-effici
Communicate With Major Brands:
Deye , Sunsynk , Victron , Growatt , Voltronic & Luxpower

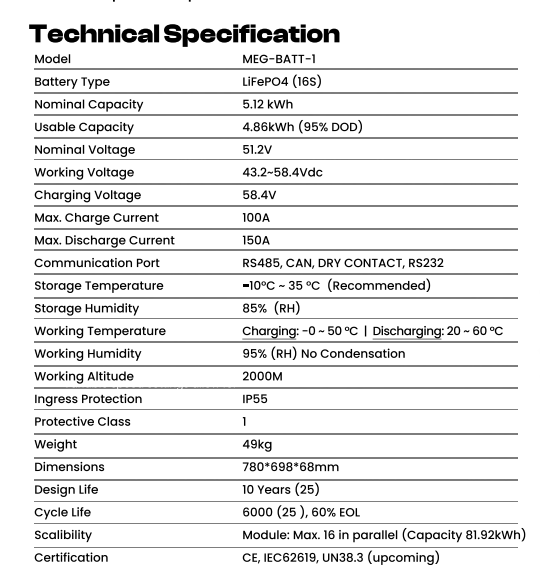

Specifications
Product Name Ultra Slim LiFePO4 Battery
Module Model MEG-BATT-1
Battery Type LFP 16S
Nominal Capacity 5.12kWh
Usable Capacity 4.86kWh (95% DOD)
Nominal Voltage 51.2V
Working Voltage 43.2 ~58.4Vdc
Charging Voltage 58.4V
Max. Charge Current 100A
Max. Discharge Current 150A
Communication Port RS485, CAN, DRY CONTACT, RS232
Storage Temperature-10 ~35 (Recommended)
Storage Humidity 85% (RH)
Working Temperature
Charging 0 ~50
Discharging -20 ~60
Working Humidity 95% (RH) No Condensation
Working Altitude 2000m
Ingress Protection IP55
Protective Class 1
Weight 49kg
Dimension 780*698*68mm
Design Life 10 Years (25 )
Cycle Life 6000 (25 ), 60% EOL
Scalability Module: Max. 16 in parallel (Capacity 81.92kWh)
Certification CE, IEC62619, UN38.3
10 Years Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
