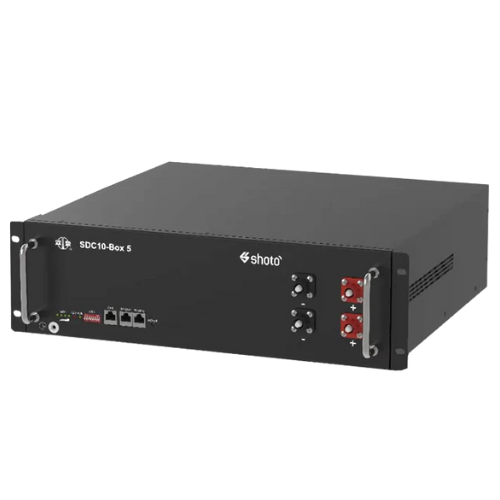

SDC10-Box 5 Shoto 48V Lithium Iron Phosphate LiFePO4 48V 5.12KWH (Rack Mount)
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are SDC10-Box 5 Shoto 48V Lithium Iron Phosphate LiFePO4 48V 5.12KWH (Rack Mount)
Description:
High LFP Cyclic Cell
Wide Compatibility (Installed 20+ Communication Protocols)
Multiple Installation Methods (19 /23 inch/Wall-mounted/stacking)
Easy Expansion (Max 20 Pcs Parallel)
Nominal Capacity 5.12KWh
Usable Capacity 4.1kWh (Suggest) 5.12 kWh (Max)
Charge Voltage 54.0 -56.4V
Discharge Voltage 51.2V
Charge/Discharge Current Recommended 50A (0.5C), Max 100A (1C)
Communication Port CAN & RS485
Dimensions 443 x 135 x 440 mm
Operating Temperature
Charge 0 to +45
Discharge -20 to +35
Storage -20 to +35
Weight 40Kg
Protection Level IP20
Expansion Up to 20 Units in Parallel
Pros Support embedded, wall-mounted, stacked mounting.
Compatible Inverters Deye/ Goodwe/ Luxpower/ Victron/ SMA/ Growatt/ Sofar/ SRNE/ TBB/ Megarevo/ Soruide/ Solis/ Voltronic/ Epever etc.
Certification UL1972/ IEC62619/ CE/ UN38.3/ CEI 0-21
Compatible Inverters
• Growatt, Goodwe, Victron, Deye, Sofar, Luxpower & more
