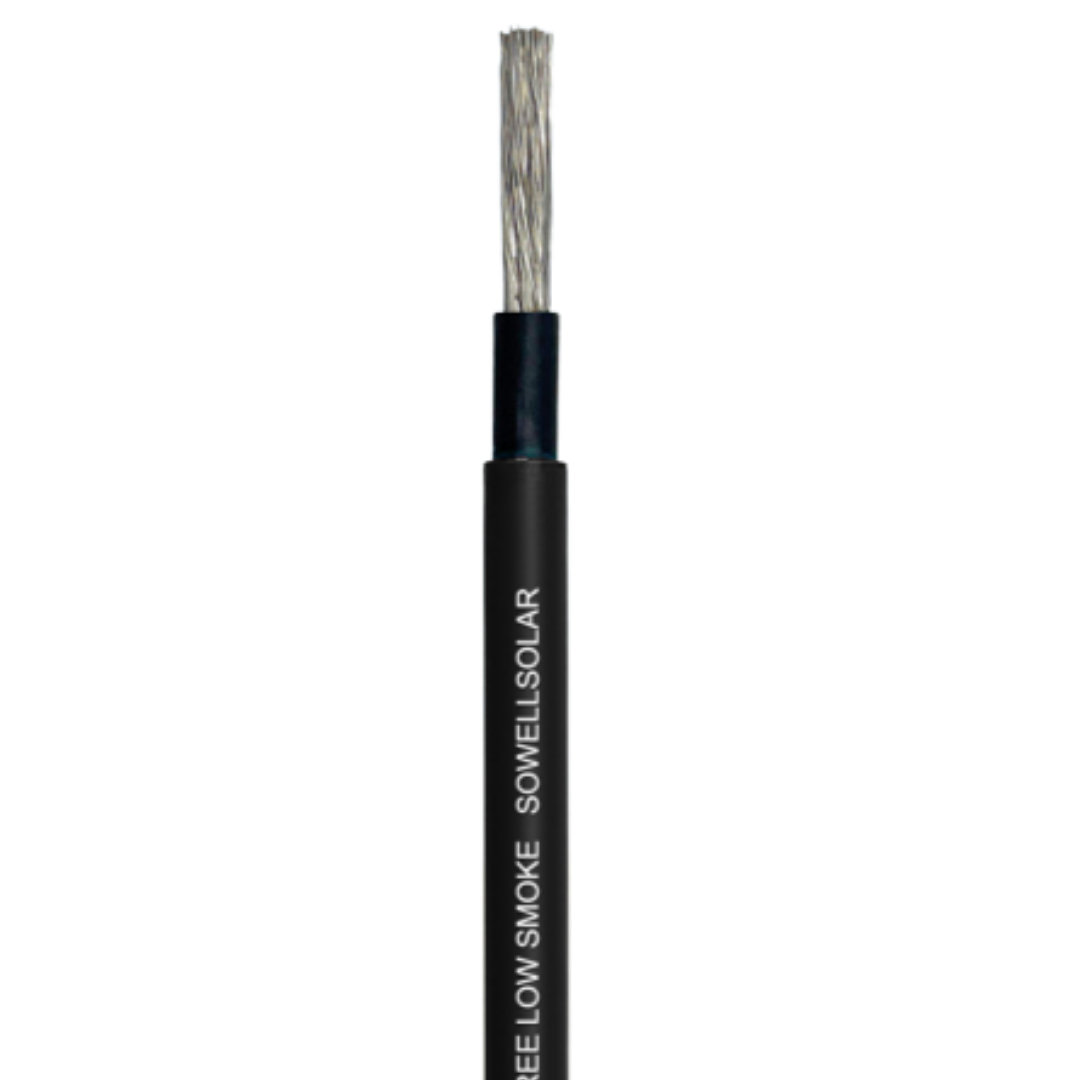

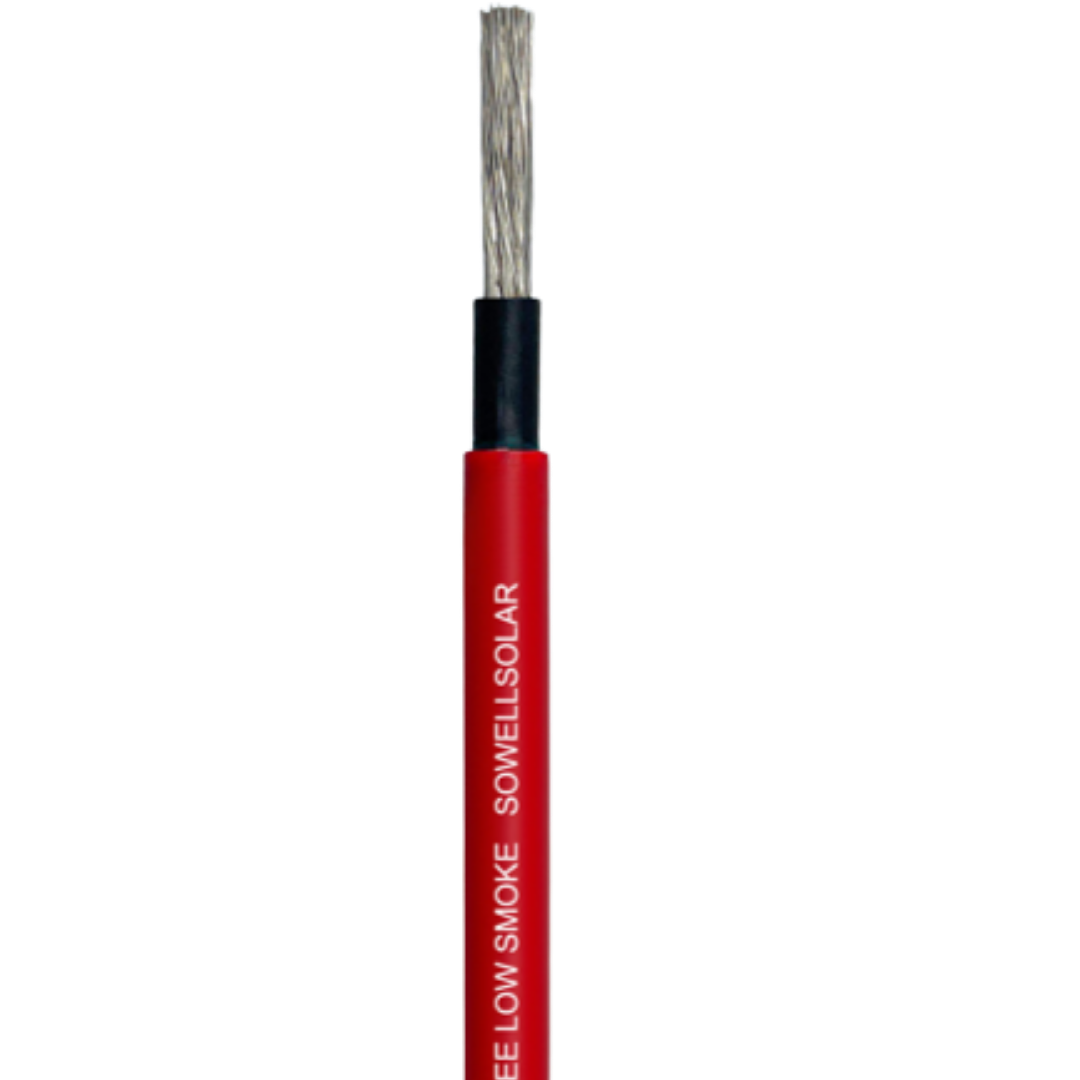

Solar Panel Solar PV Extension DC Cable 6mm Sowell Tinned Copper Alloy (TCA)
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Solar Panel Solar PV Extension DC Cable 6mm Sowell Tinned Copper Alloy (TCA)

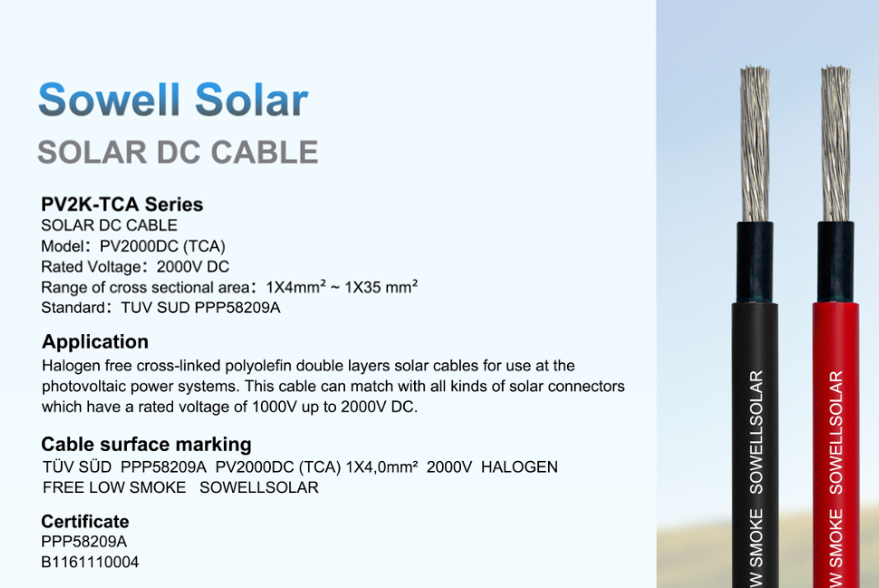

PV2K-TCA Series SOLAR DC CABLE
Model: PV2000DC (TCA)
Rated Voltage: 2000V DC
Range of cross sectional area: 1X4mm2~ 1X35 mm2
Standard: TUV SUD PPP58209A
Application
Halogen free cross-linked polyolefin double layers solar cables for use at the
photovoltaic power systems. This cable can match with all kinds of solar connectors
which have a rated voltage of 1000V up to 2000V DC.
Cable surface marking
TÜV SÜD PPP58209A PV2000DC (TCA) 1X4,0mm2 2000V HALOGEN FREE LOW SMOKE SOWELLSOLAR
Certificate
PPP58209A
B1161110004

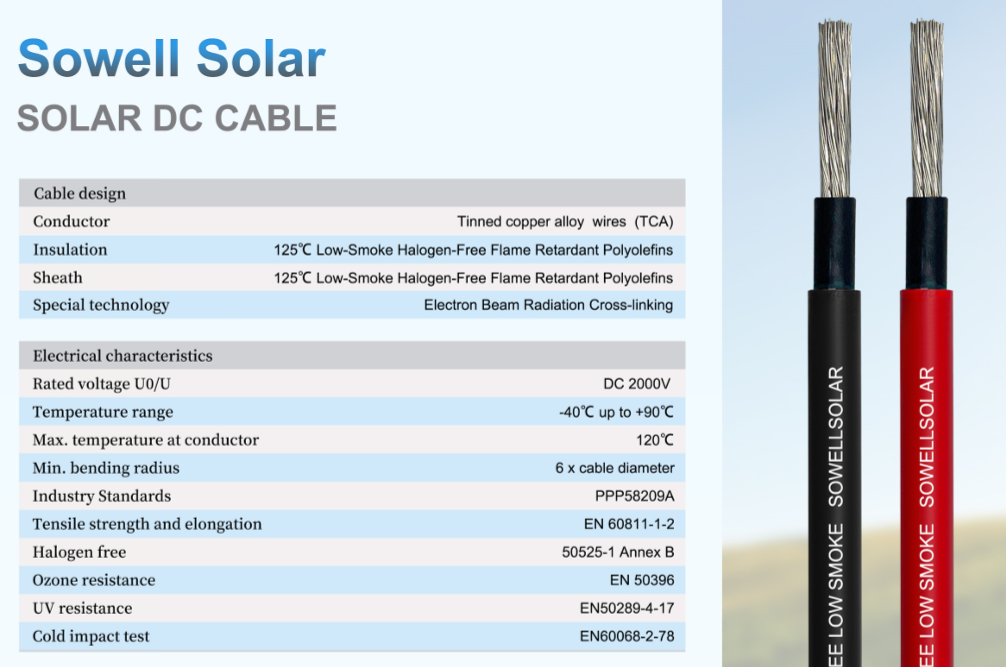

Cable design
Conductor : Tinned copper alloy wires (TCA)
Insulation : 125°C Low-Smoke Halogen-Free Flame Retardant Polyolefins
Sheath : 125°C Low-Smoke Halogen-Free Flame Retardant Polyolefins
Special technology : Electron Beam Radiation Cross-linking
Warranty :
10 Years Limited Product Warranty
