5000W Growatt Lite Solar Ready Hybrid Inverter Trolley 5.12 KWh Dyness Lithium Battery+Wifi

The perfect solution for load shedding!

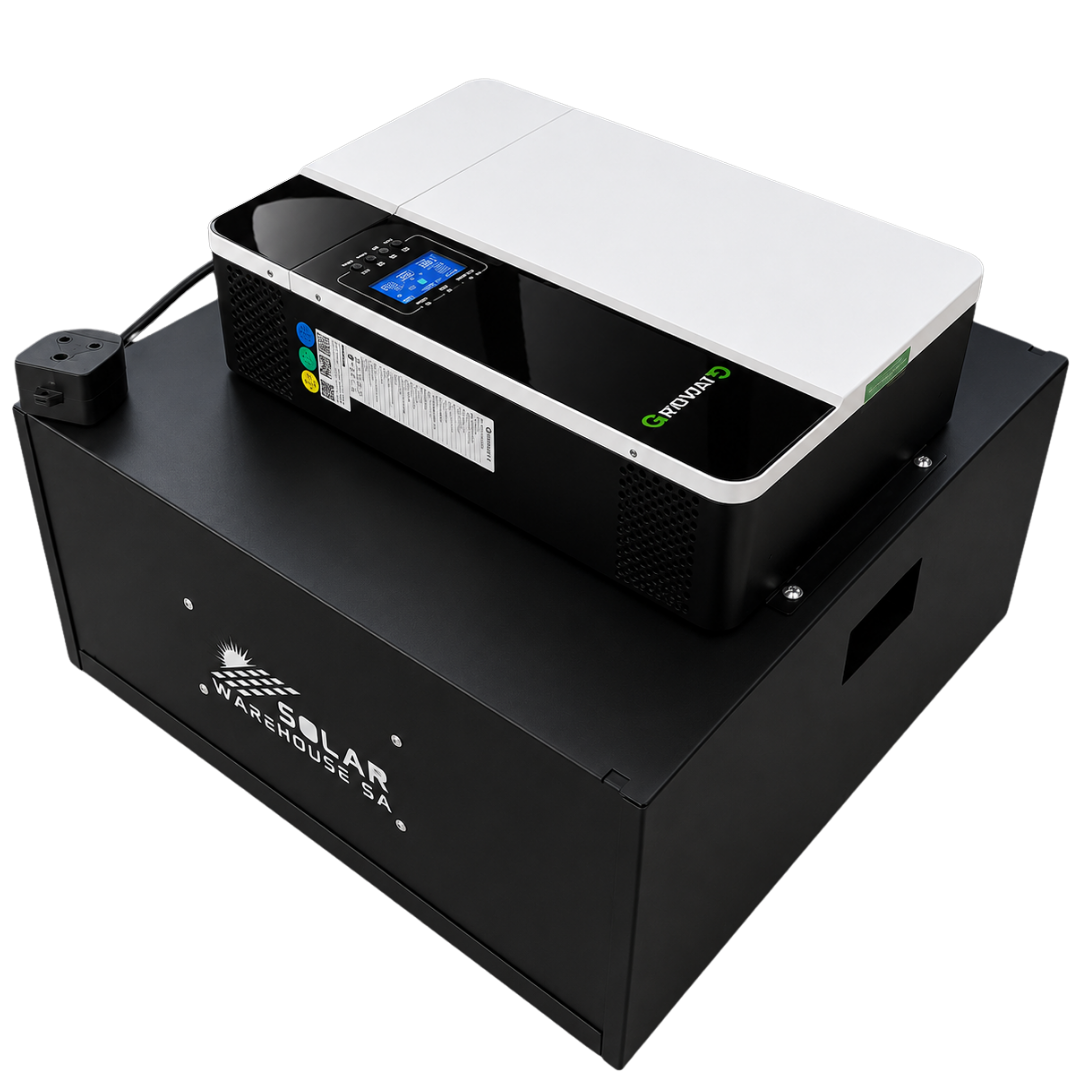

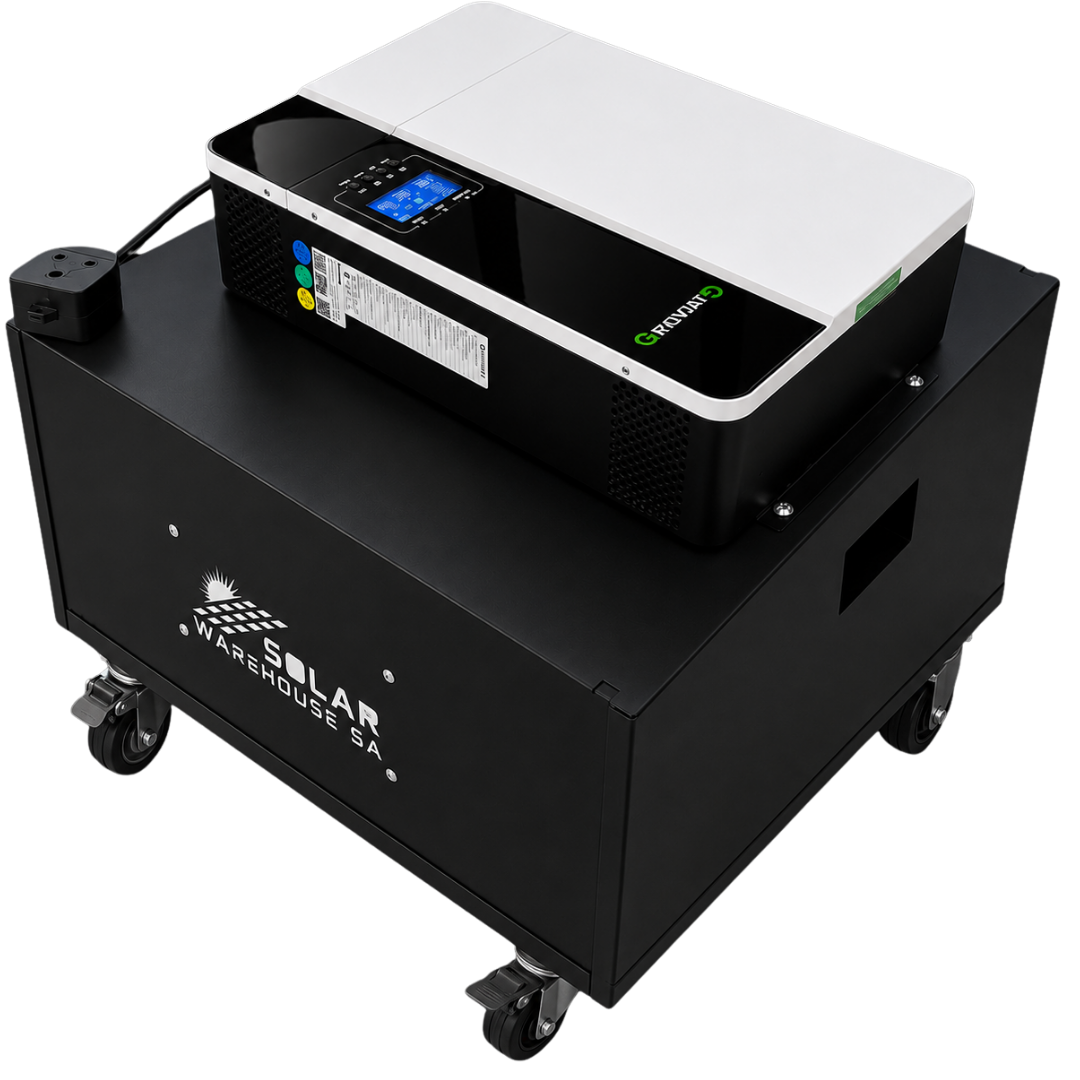

The all-in-one portable plug & play inverter battery trolley system  (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.

 PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE

What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?

It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers,  chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.

How much battery backup power will I have when the power is off?

If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 45-50 Hours With a 100% DOD.

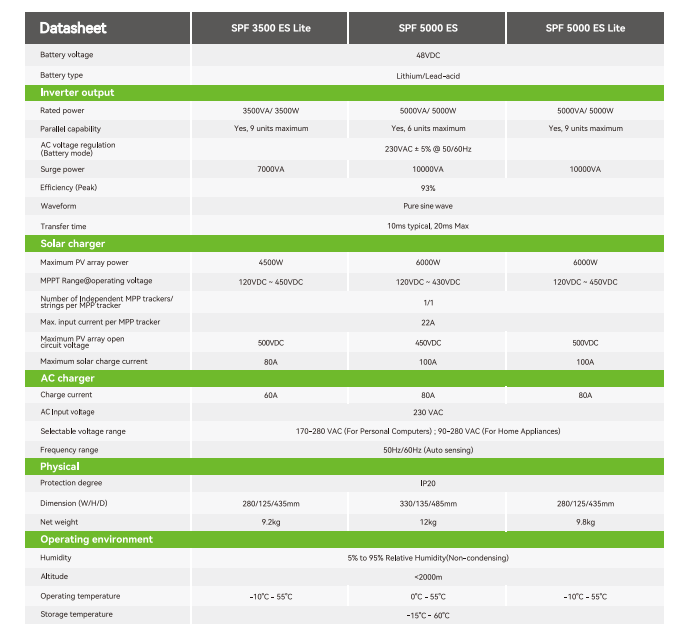

Inverter Specifications:

The GROWATT ES Lite features an integrated MPPT charge controller, allowing optimal solar harvesting throughout the day. Users can configure grid or solar input priority depending on energy needs, while flexible scheduling enables customised charging and discharging times for improved energy savings.

Key smart features include:

• Works with or without battery

• PV and grid power supply loads jointly when solar energy is sufficient

• Equalization charging function for improved battery health

• Configurable inverter operating modes

Performance & Scalability

• Max PV Array Power: 6000W

• MPPT Operating Voltage: 120–450VDC

• Max PV Open Circuit Voltage: 500VDC

• Max Solar Charge Current: 100A

• Parallel capability of up to 9 units

This scalability makes the inverter suitable for expanding energy requirements over time.

Battery Specifications:

Product Features:

• Supports Wall Mount, Floor Mount & Rack Mount

• 1C Discharge

• Connect up to 50 Units in Parallel

• Module Free Design

• Integrated Aerosol Fire Suppression

• IP20 Ingress Protection

• Wide Compatibility

• 8000 Cycle Life Span

• Backward Compatible with DL5.0C Range (Without LINK Module)

• 95% DOD

• Easy Installation using only 1 Bracket

- Model: DL5.0F
- Battery Type: LiFePO4
- Nominal Battery Energy: 5.12kWh
- Usable Battery Energy: 4.864kWh
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V~57.6V
- Recommended Charge & Discharge C Rate: 0.5C (50A)
- Max. Charge C Rate: 0.75C (75A)
- Max. Discharge C Rate: 1C (100A)
- Peak Discharge Current (25°C): 110A, 15s
- Recommended Charge & Discharge Power: 2.56kW
- Max. Charge Power: 3.84kW
- Max. Discharge Power: 5.12kW
- Depth of Discharge (DOD): 95%
- Charge Temp. Range: 0~55°C
- Discharge Temp. Range: -20°C~55°C
- Net Weight: 41kg
- Dimension [W/D/H]: 345/548/146mm
- Protection Level: IP20
- Communication: CAN/RS485
- Cycle Life: ≥8000 Cycles
- User Interface: WIFI+APP (optional)
- Safety Protection: Built-in aerosol fire extinguisher
- Installation: wall-mounted, floor-standing, flexible bracket, rack-mounted
- Expansion: Up to 50 units in parallel
- Certification & Safety Standard: UN38.3/CE-EMC/CE-RED/IEC 62619/IEC 63056/RoHS/REACH
- Compatible Inverters: SMA/Schneider/Victron Energy/Ingeteam/Solis/GoodWe/Growatt/Solplanet/Luxpower/Deye/Apsystem etc.

50cm (H) x 61 (L)  x 61 (W)

67KG

This all-in-one system Includes:

1x GROWATT Lite HYBRID INVERTER 48V 5KW INVERTER PURE SINE WAVE (INCLUDING WIFI) SPF 5000 ES LITE + Wifi Dongle (2 Years Warranty)

1x DYNESS Lithium Battery DL5.0F 5.12kWh LV Lithium Battery (100AH 51.2V ) (7 Years Warranty)

1x Battery Fuse

1x 1m Power Cable With Wall Plug

1x 1m Cable With Power Socket

1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
