Ecco 3500VA / 3500W High MPPT Solar Ready Hybrid Inverter Trolley + 2.56 kWh Lithium Battery

The perfect solution for load shedding!

The all-in-one portable plug-and-play inverter battery trolley system  (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.

 PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE

What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?

It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers,  chargers, and wifi running during load shedding. Solar ready: Add a solar panel and charge your batteries when there is no power.

How much battery backup power will I have when the power is off?

If you connect 100w which is usually a TV, Wifi, Lights, etc. This portable system will last 25 Hours at a 100% dod.

Inverter Specifications & Fixtures:

Hybrid Inverter 24v 3.5 Kva 3500w Mppt 100A Inverter Pure Sine Wave - Ecco

Features:

Pure sine wave
Power factor 1.0
PV input Voltage 120Vdc~450Vdc
Built-in MPPT 100A
Detachable dust cover for harsh environment
WIFI remote monitoring optional
Support multiple output priority: UTL, SOL, SBU,
RS485 BMS Communication
Lithium battery activation

Add A Wifi Dongle:

https://solarwarehousesa.com/products/ecco-hybrid-inverter-wifi-dongle?_pos=1&_sid=c4861135d&_ss=r

Technical Specifications:

• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Total Energy: 2.56 KWh
• Operating Voltage Range: 21.6V - 28.8V
• Discharge Ending Voltage: 21.6V
• Charge Voltage Range: 28.8V (nominal), Max 29.2V
• Standard Charge/Discharge Current: 50A
• Max Charge/Discharge Current: 100A
• Max Continuous Output Power: 2560W
• Max Momentary Output Power: 3200W
• Efficiency of Charge: 99% (at 0.5C, 25°C)
• Efficiency of Discharge: 98% (at 1C)
• Protection Rating: IP54
• Cycle Life: >5000 cycles at 0.5C and 80% DOD at 25°C

Plug & Play System Size & Weight:

50cm (H) x 61 (L)  x 61 (W)

40KG

This all-in-one system Includes:

1x Hybrid Inverter 24v 3.5 Kva 3500w Mppt 100A Inverter Pure Sine Wave - Ecco

5 Years Warranty on the inverter

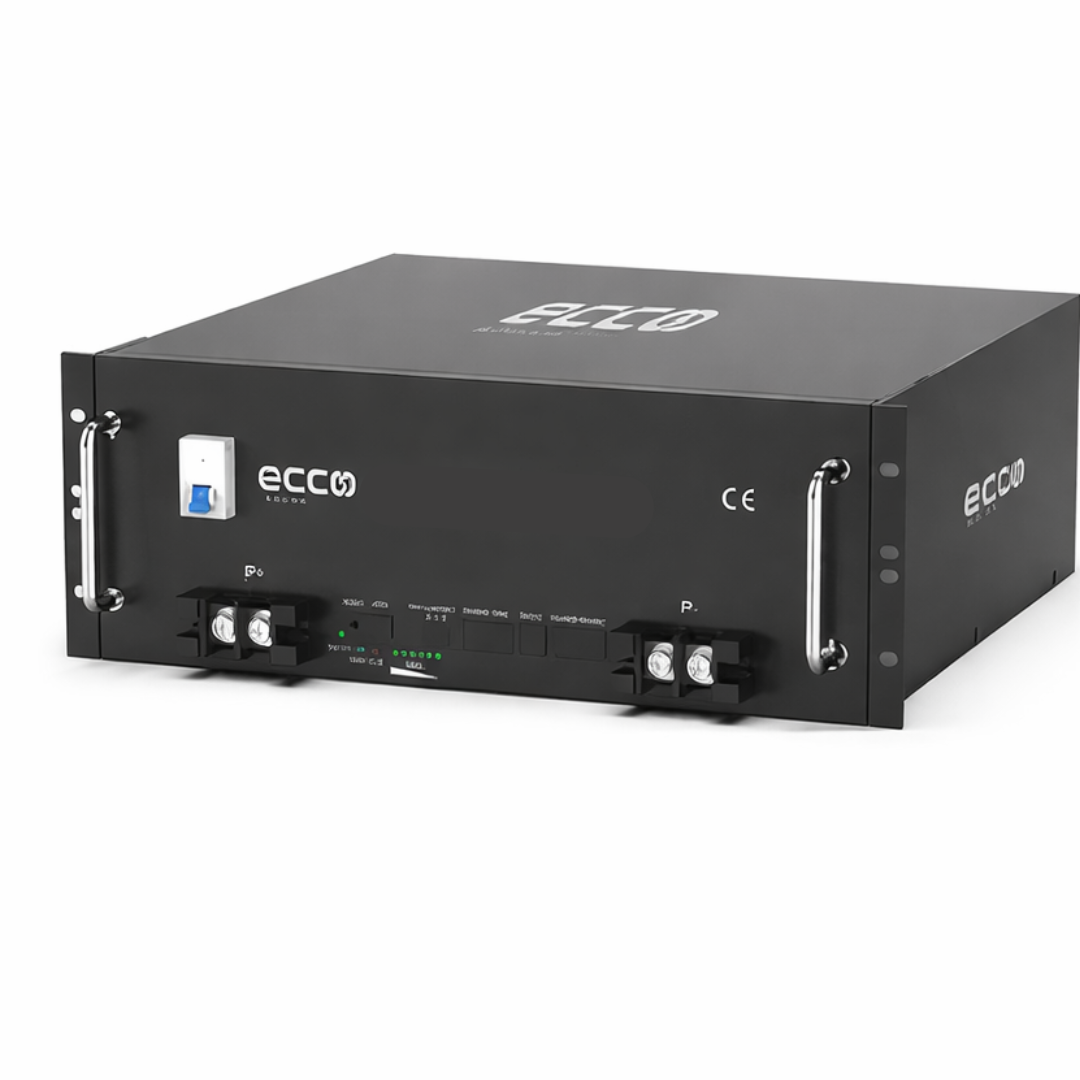

• 1x Ecco 25.6V 100Ah 2.5kWh Lithium Battery with BMS – LR24100  (5 Years Warranty)

5 Years Warranty on The Battery

1x Battery Fuse

1x 1m Power Cable With Wall Plug

1x 1m Cable With Power Socket

1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
