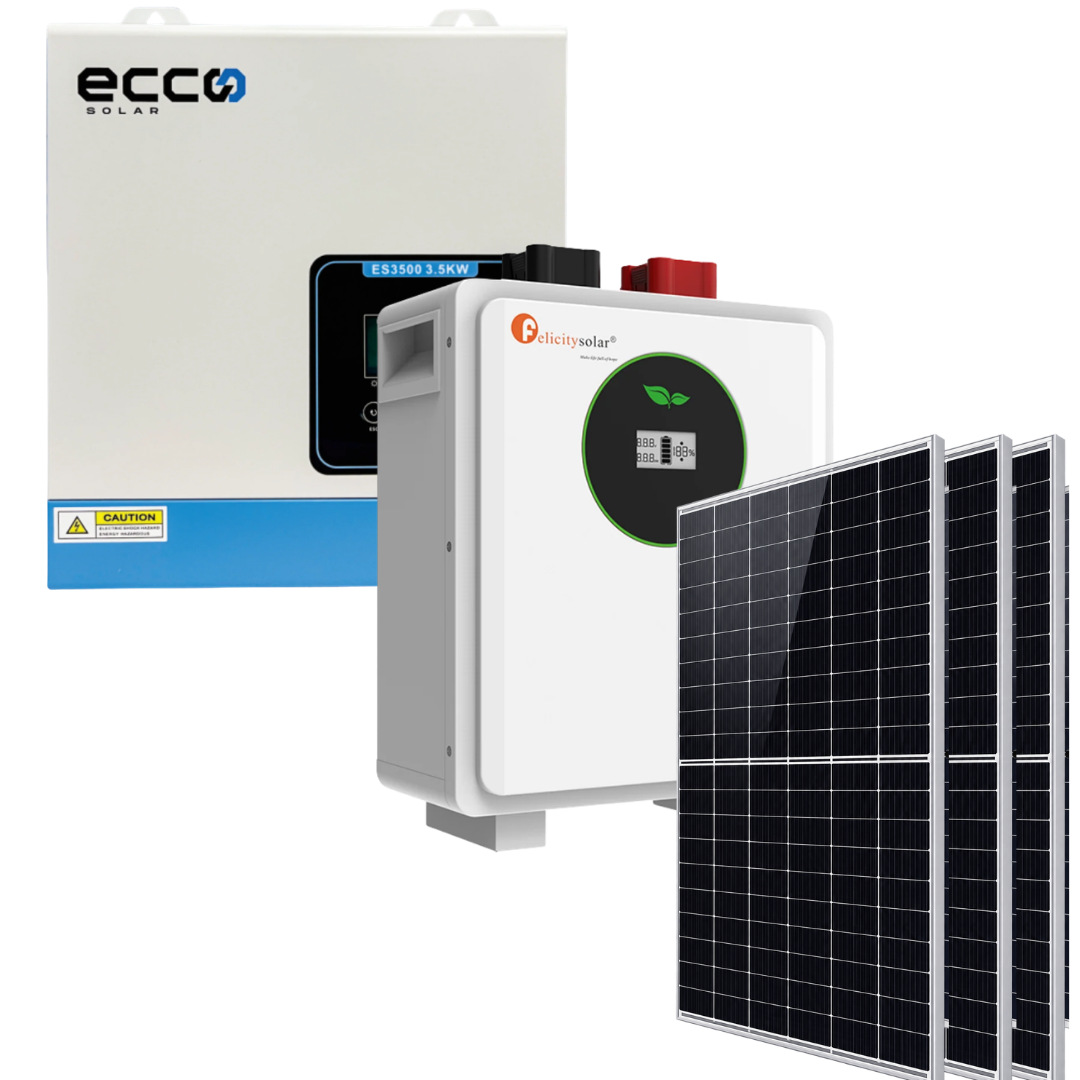

Ecco 3.5KW 3500W MPPT 100 AH 2.56 Felicity Lithium Combo Kit 3x 460W Solar Mono Panels

Ecco 3.5KW 3500W MPPT 100 AH 2.56 Felicity Lithium Combo Kit 3x 460W Solar Mono Panels

Inverter Specifications :

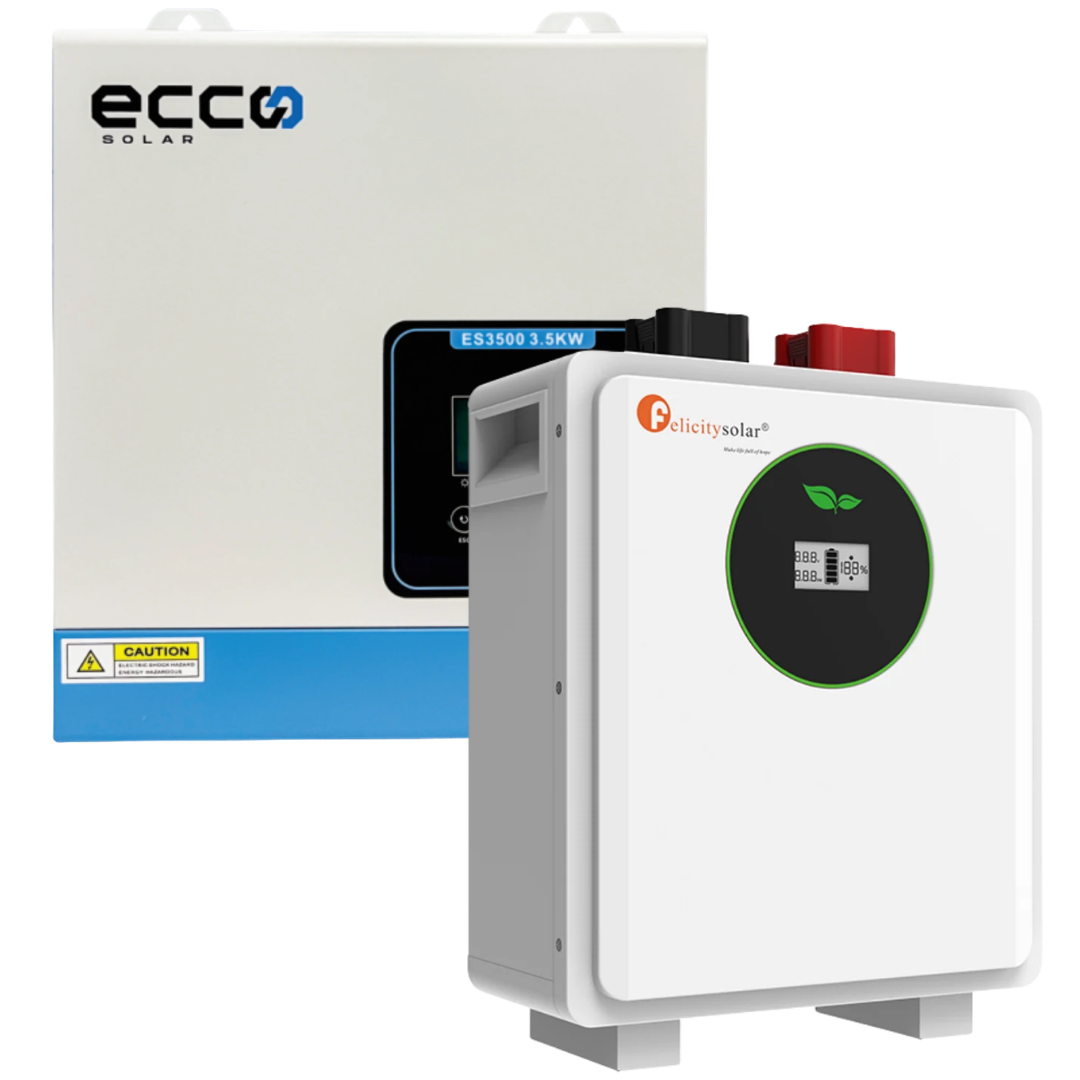

Hybrid Inverter 24v 3.5 Kva 3500w MPPT 100A Inverter Pure Sine Wave - Ecco

Model Name : ES3500

Inverter Mode :
Rated Power : 3500VA/3500W
Nominal Voltage : 24V

Ac Charger Mode :
AC Input : 230VAC 50/60HZ
MAX Charge Current : 60A
Max Charger Current AC+PV : 100A
AC Ouptut : 230VAC

Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 30VDC
Max Solar Voltage (VOC) : 500VDC
Max MPPT Charge Current : 100A

Battery Specifiications :

Felicty 25.6v 100Ah 2.56 kWh Lithium Battery FLA24100WG2

Features :

• Remote Monitoring Via FSolar APP

• Max 15 Units Parallel

• Wall / Floor Mounted Installation

• High Compatibility With Leading Inverter Brands

Specifications :

Battery Type Nominal Energy : LiFePO4
Nominal Voltage : 25.6V
Operating Voltage : 22.4-28.8V
Max. Continuous Charge/Discharge Current[1] : 100A
Peak Charge/Discharge Current(15s) : 200A
Max. Charge/Discharge Power : 2500W
Scalability : MAX 15 IN PARRALEL
Depth of Discharge (DOD) : 95%
Communication :  RS485/CAN
Protection Degree : IP21
Cycle Life : 6000 CYCLES
Display Type : LCD+LED
Installation :  WALL / FLOOR MOUNTED
Protection :  Built In Smart BMS,FUSE
Warranty Period : 7 Years
Certification : UN38.3
Product Weight : 23KG
Package Weight :  27KG
Product Dimension : 325 X 400 X 180MM
Package Dimension : 462 X 417 X 252MM

Package Includes:

• 1x Hybrid Inverter 24v 3.5 Kva 3500w MPPT 100A Inverter Pure Sine Wave - Ecco (5 Year Warranty)

• 1x Felicty 25.6v 100Ah 2.56 kWh Lithium Battery FLA24100WG2 (7 Years Warranty)


• 3x Megatron 460w SG460 Mono Solar Panel Mono Bifacial N-Type Solar Module

  (25 Year Product Warranty)
