5KW MPPT Deye Load Shedding Dyness 5.12 KWh Combo Backup Power Kit+Wifi
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are 5KW MPPT Deye Load Shedding Dyness 5.12 KWh Combo Backup Power Kit+Wifi
HYBRID INVERTER SOLAR KIT COMBO

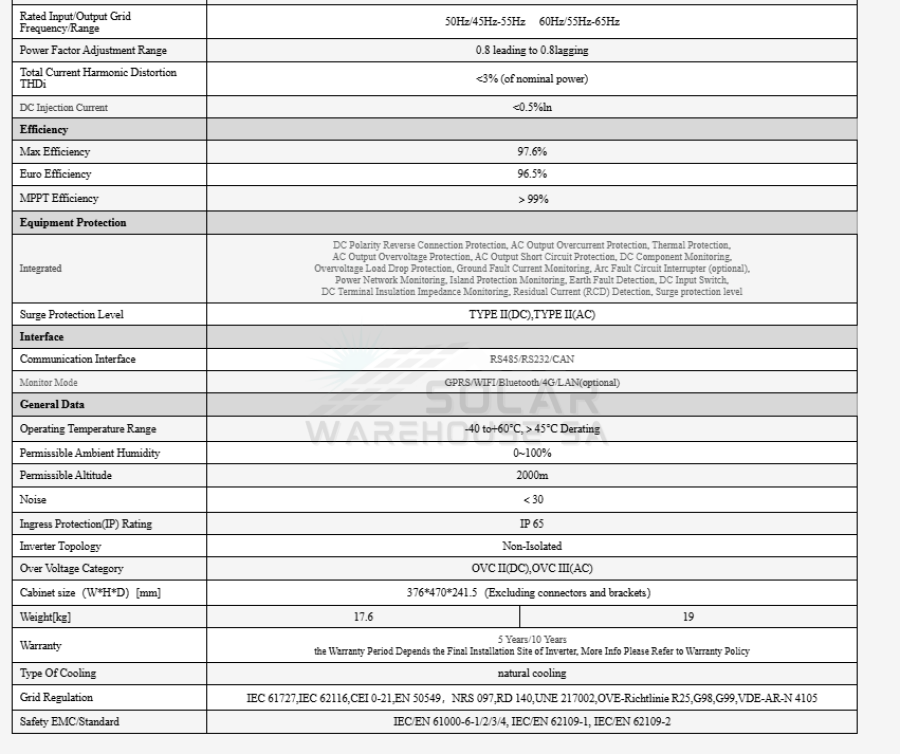

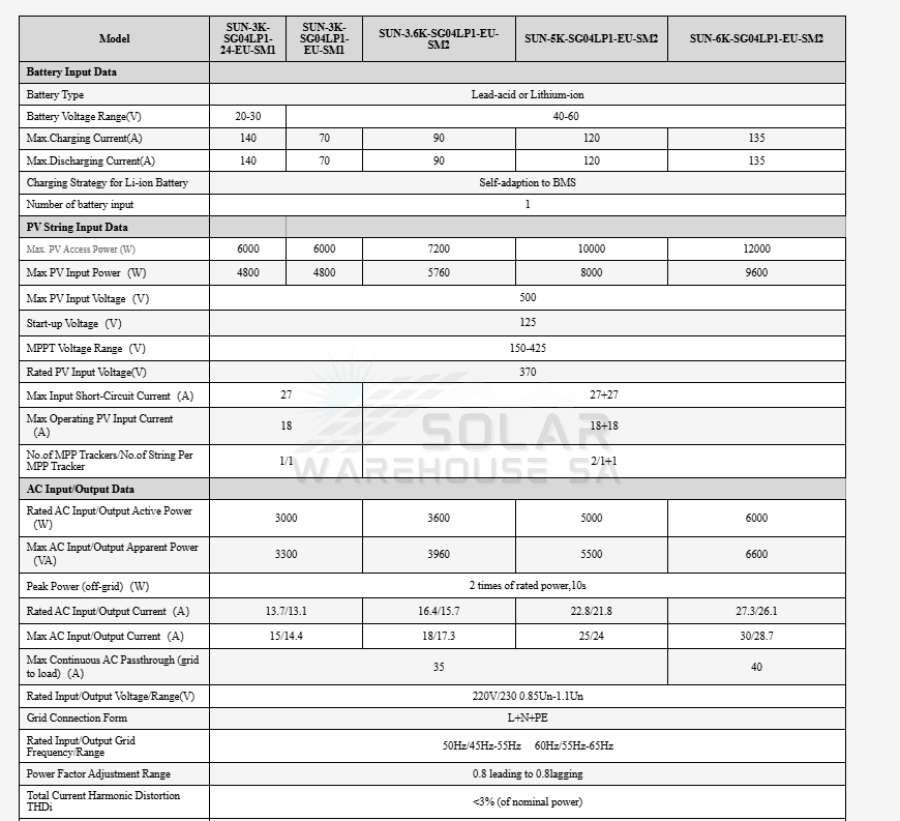

Inverter Specifications:

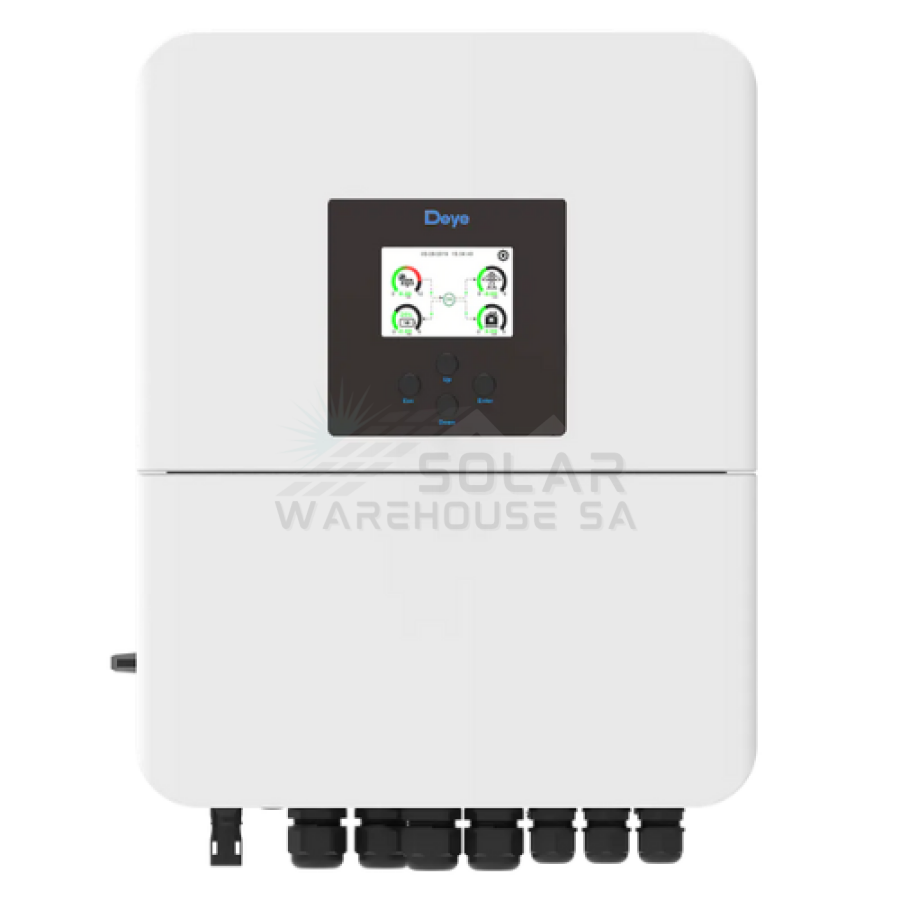

Deye 5kw hybrid inverter (SUN-5K-SG04LP1-EU-SM2)
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 140A 6 time periods for battery charging/discharging Support storing energy from diesel generator
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range(V): 40-60
Max.Charging Current(A): 120
Max.Discharging Current(A): 120
Charging Strategy for Li-ion Battery: Self-adaption to BMS
PV String Input Data
Max. PV Access Power (W):10000
Max PV Input Power（W）: 8000
Max PV Input Voltage（V): 500
Start-up Voltage（V）: 125
MPPT Voltage Range（V）: 150-425
Rated PV Input Voltage(V): 370
Max Input Short-Circuit Current（A）: 27+27
Max Operating PV Input Current（A）: 18+18
No.of MPP Trackers/No.of String Per MPP Tracker: 2/1+1
| Height (mm) | 470 |
| Width (mm) | 376 |
| Depth (mm) | 241.5 |
| Weight (kg) | 19 |
Battery Specifications:
The BX51100 is more than just a robust energy storage solution; it’s a testament to reliability. Its advanced BMS ensures the safety and longevity of the battery, and with 5.12kWh of capacity, it provides you with the perfect power backup. Whether it’s for residential or commercial use, the Dyness solar battery BX51100 is the key to uninterrupted, sustainable energy.
Key Specifications:
- Capacity: 5.12kWh
- Battery Type: Lithium-ion
- Continuous Output Power
- Battery Management System (BMS): Yes
- Protection Features: Overcharging, Over-discharging, Short Circuit Protection
- Cycle Life: Ensuring a long-lasting energy solution

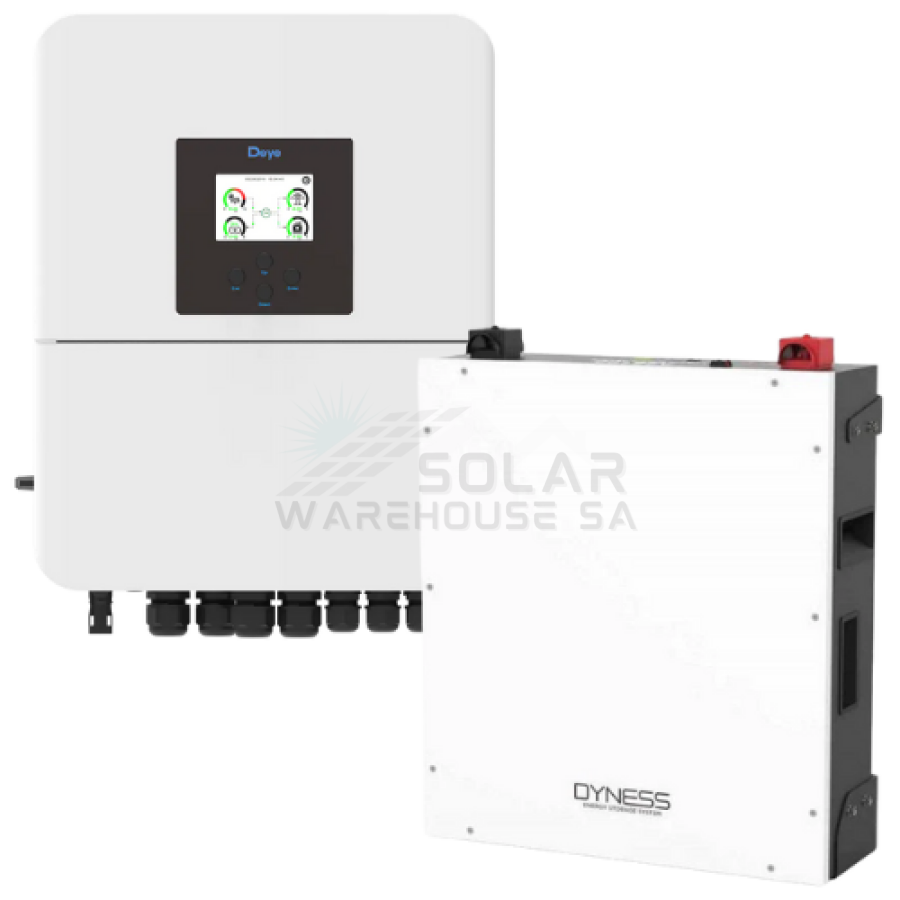

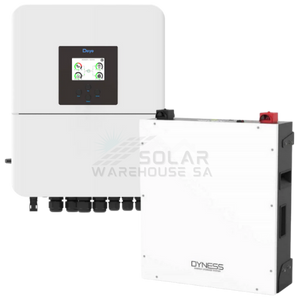

Combo includes:
-
1x Deye 5kwh Hybrid Inverter Including Wifi Dongle
(5 Years Warranty) -
DYNESS Lithium Battery BX51100(10 Years Warranty)
- Battery cables and brackets included
