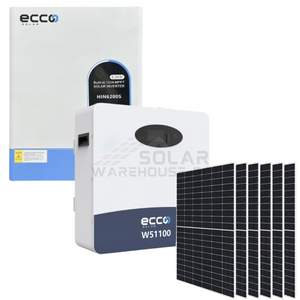

6.2KVA/6200W Ecco MPPT Combo 1 X 5.12 KWH AH Battery 6X 360W Mono Solar Panels Inverter Combo
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
6.2KVA/6200W Ecco MPPT Combo 1 X 5.12 KWH AH Battery 6X 360W Mono Solar Panels Inverter Combo
Overcome load shedding with this premium hybrid inverter load-shedding Combo
Hybrid Inverter 48v 6.2 Kva 6200w MPPT 120A Inverter Pure Sine Wave - Ecco
Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle
What's in the box
1 x Inverter
1 x User Manual
Add A Wifi Dongle:
https://solarwarehousesa.com/products/ecco-hybrid-inverter-wifi-dongle?_pos=1&_sid=c4861135d&_ss=r
Battery Specifications:
What's in the box:
Battery
Battery Cables & Mounts Included
Battery Parameters:
Battery Type is set to "USE."
Bulk Charge Voltage is set to 56.4
Float Charge Voltage is set to 54.5V
Cut Off Voltage is set to 43V.
Charging Amps : 30A
Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Operating Voltage Range (V) 43-54.5
Short Circuit Protection yes
Power-on Reverse Connection Protection optional
Maximum Charging Voltage (V) 57.6
Best Charging Voltage (V) 56.4 (recommended)
Maximum Continuous Output Power (W) 5500
Maximum Momentary Output Power (W) 7500
Local Parameter Configuration support
Max Installation Dimension (mm) 480*170*500
Package Size (mm) 590*290*615
Weight (kg) 49
IP Class IP 54
Communication RS485, RS232, CAN
Design Life 15 years
Combo Includes:
1x Ecco 51.2v 100ah 5.12kWh Lithium Battery W51100 Wall-Mounted ( 5 Years Warranty)
1x Hybrid Inverter Ecco 6.2KVA 6200W Watt MPPT(5 Years Warranty)
6x Sun God 360w Solar Panel Mono (15 Year Product Workmanship Warranty)
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
