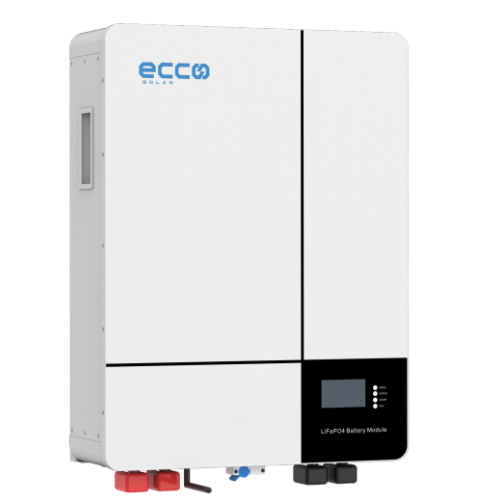

Ecco 51.2v 100ah 5.12kWh Lithium Battery ME51100 Wall-Mounted

Ecco 51.2v 100ah 5.12kWh Lithium Battery ME51100 Wall-Mounted

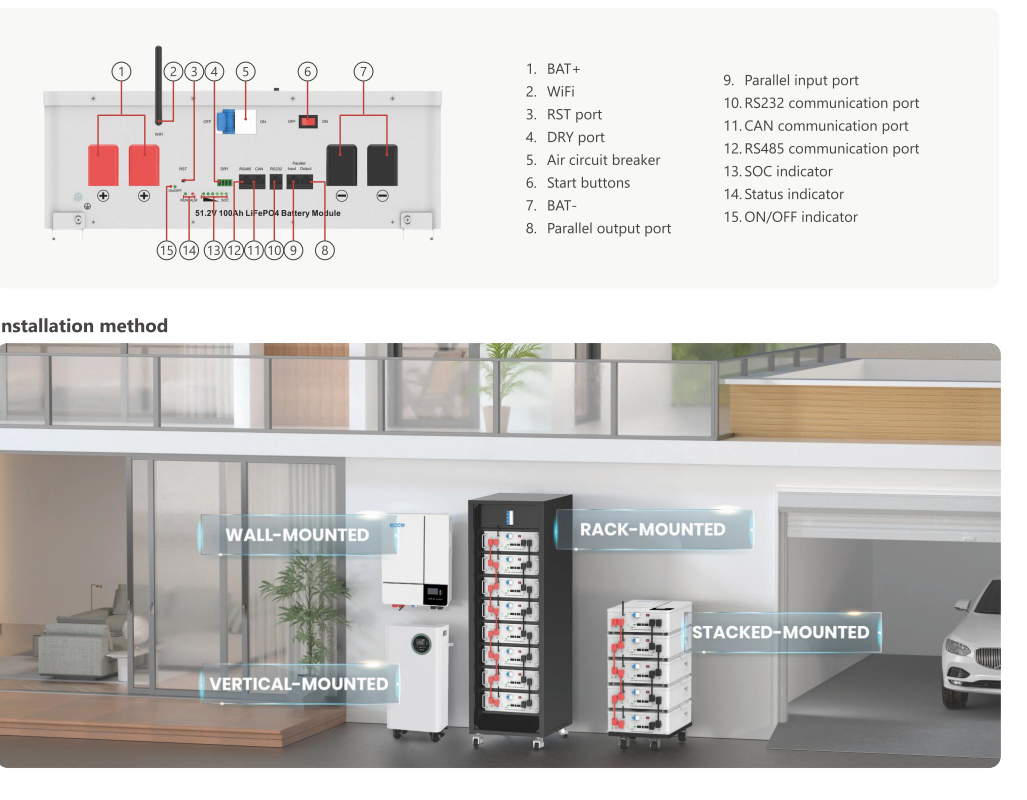

The ME Series offers a versatile and reliable power solution. Combine up to 40 units for energy capacities ranging from 2560Wh to 15360Wh. With WiFi Remote Monitoring, stay connected and in control. Whether it's wall- mounted convenience, stacked-mounting (up to 5 units) for space efficiency, or rack-mounted for industrial power management, this series offers seamless adaptability.

- Vertical-mounted only for ME51300 & ME51320
- Large capacity, high power output
- Safest lithium iron phosphate battery cell with high energy density
- Modular design: supports up to 40 units in parallel
- Support CAN & RS485 communication with mainstream inverters Local monitoring via LCD monitor
- Built-in WiFi Smart BMS Module

Specifications:

Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Charging Voltage (V) 58.4 (recommended)
Maximum Continuous Output Power (A) 100A
Maximum Momentary Output Power (A) 100A

Package Size (mm) 442 X 625.5 X 177
Weight (kg) 45

Warranties:

5 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
