6.2KVA/6200W Ecco MPPT Combo 1 X 5.12 KWH AH Battery 6X 460W Mono Solar Panels Inverter Combo
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
6.2KVA/6200W Ecco MPPT Combo 1 X 5.12 KWH AH Battery 6X 460W Mono Solar Panels Inverter Combo
Overcome load shedding with this premium hybrid inverter load-shedding Combo
Hybrid Inverter 48v 6.2 Kva 6200w MPPT 120A Inverter Pure Sine Wave - Ecco
Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle
What's in the box
1 x Inverter
1 x User Manual
Add A Wifi Dongle:
https://solarwarehousesa.com/products/ecco-hybrid-inverter-wifi-dongle?_pos=1&_sid=c4861135d&_ss=r
Battery Specifications:
Model : LW51.2-100
Nominal Voltage : 51.2 V
Rated Capacity : 100 Ah
Energy : 5.12 kWh
Discharge Ending Voltage : 43.2 V
Charging Limited Voltage : 58.4 V
Max. Charge/Discharge Current : 100 A
Weight Approx. 48 Kg
Dimensions (W*D*H) mm (inches) : 400 *560 *150 mm
Protocol : RS485/RS232/CAN
Max number of parallel connections : 15
Design life : More than 15 years
Cycle Life : More than 6000 cycles @ 80% DOD
IP Class : IP30
Case Material : SPCC
Operating Temperature Charging : 0 to +45℃ Discharging: -10 to +55℃ Storage: -20 to +60℃

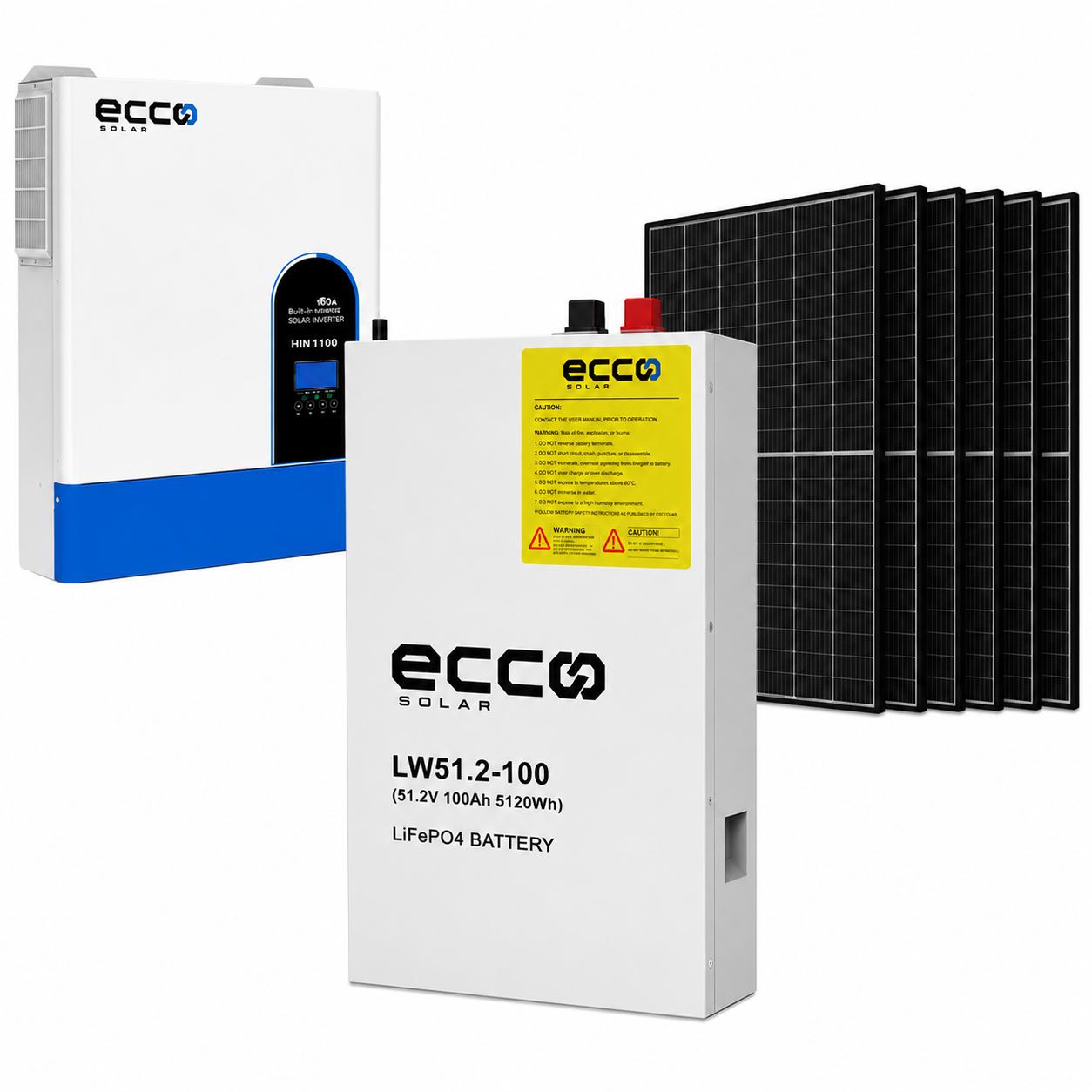

Combo Includes:
1x Leoch 51.2v 100ah 5.12kWh Lithium Battery LW51.2-100 Wall-Mounted
( 5 Years Warranty)
1x Hybrid Inverter Ecco 6.2KVA 6200W Watt MPPT(5 Years Warranty)
6x Trina 460W Tier 1 Mono Solar Panel Mono TSM-XXXNEG9R.28 460W (BLACK FRAME )(25years warranty)
PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
