5KW MPPT Growatt Dyness 5.12 Lithium Battery Combo Backup Power Kit 6x Solar 460w Solar Panels Mono
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Hybrid Inverter Solar Kit Combo
5KW MPPT Growatt Dyness 5.12 Lithium Battery Combo Backup Power Kit 6x Solar 460w Solar Panels Mono Crystaline
INVERTER SPECIFICATIONS:
Key smart features include:
-
Works with or without battery
-
PV and grid power supply loads jointly when solar energy is sufficient
-
Equalization charging function for improved battery health
-
Configurable inverter operating modes
Performance & Scalability
-
Max PV Array Power: 6000W
-
MPPT Operating Voltage: 120–450VDC
-
Max PV Open Circuit Voltage: 500VDC
-
Max Solar Charge Current: 100A
-
Parallel capability of up to 9 units
WIFI Dongle (INCLUDED)
Battery Specifications:
DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max Continous Charge Current | 75A |
| Max Continous Discharge Current | 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |

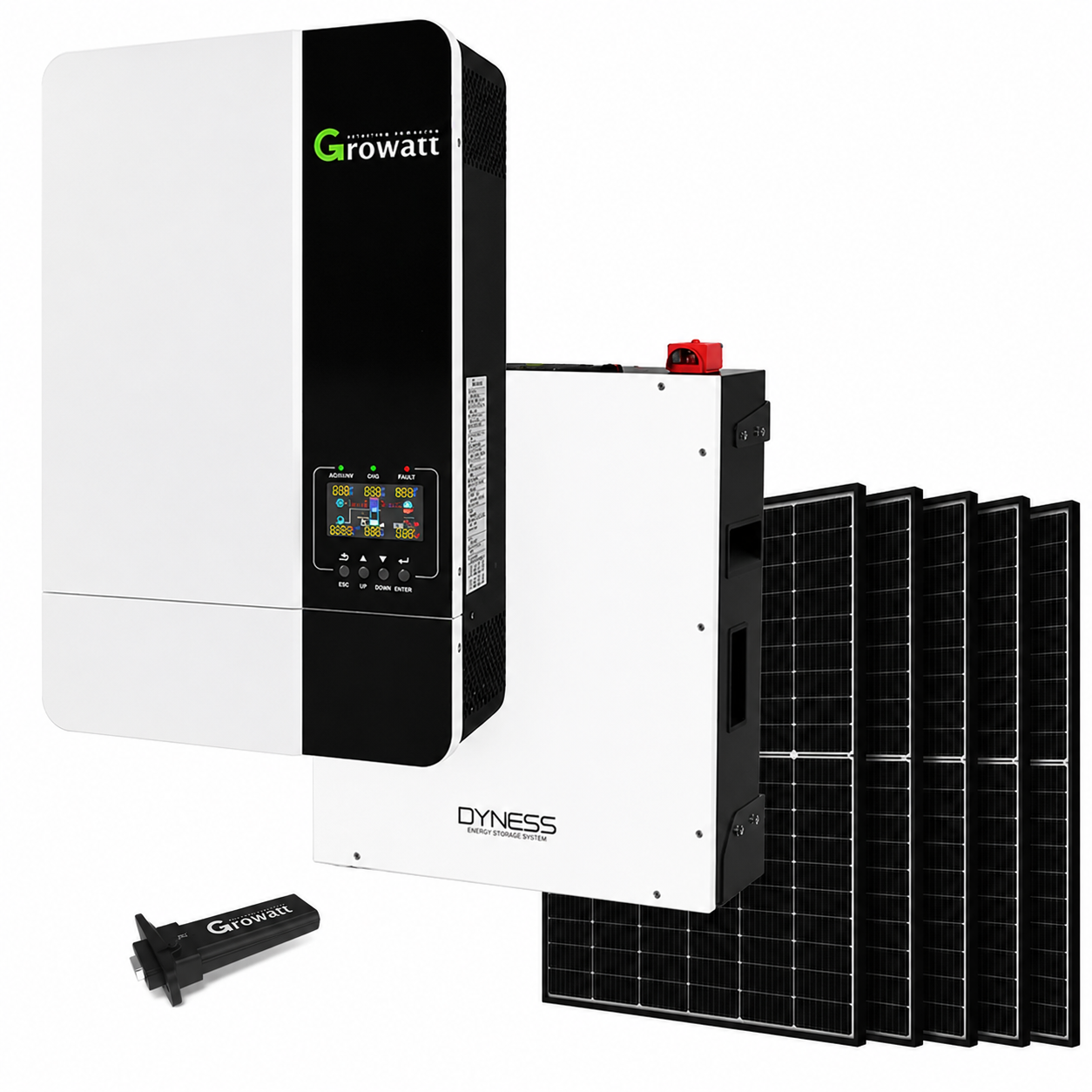

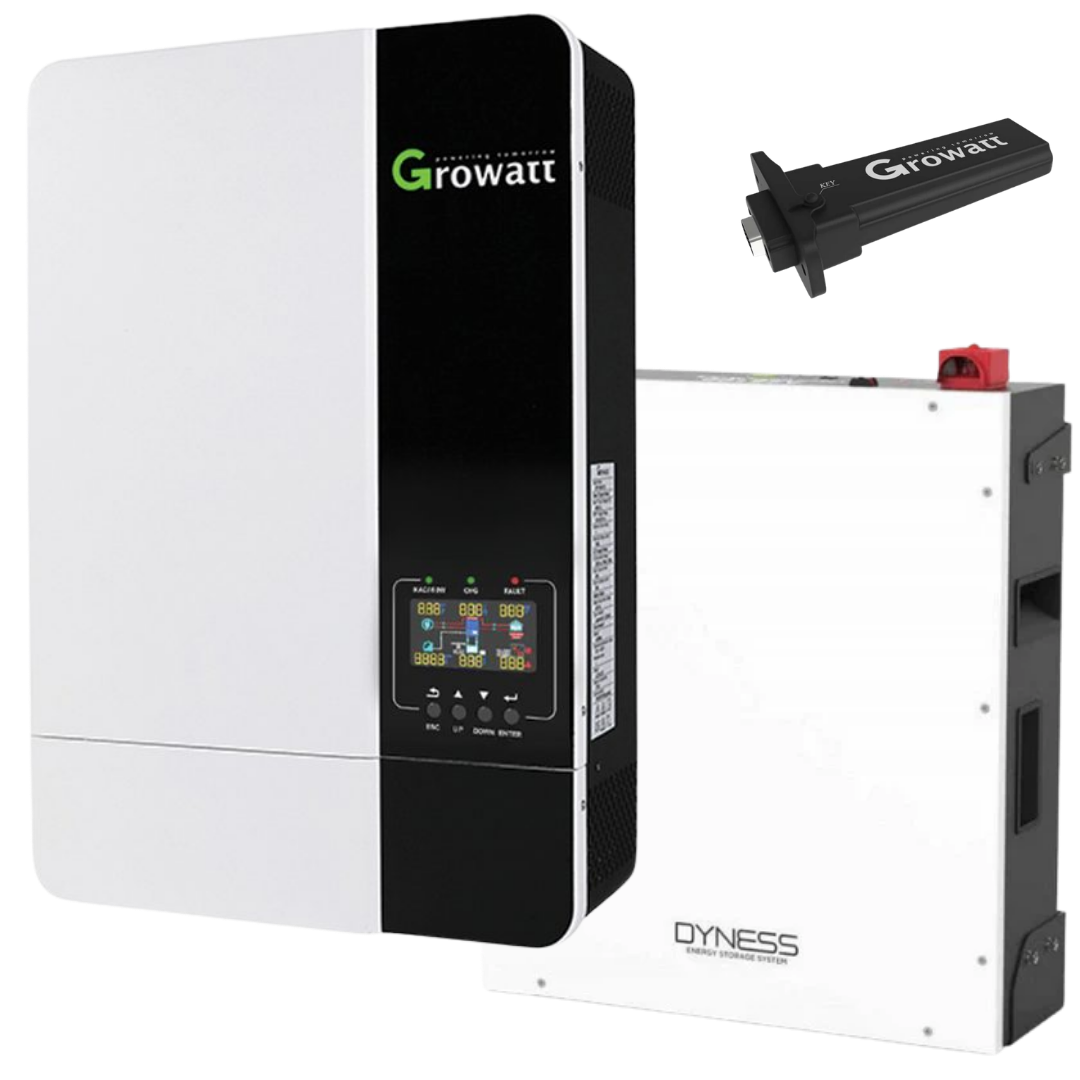

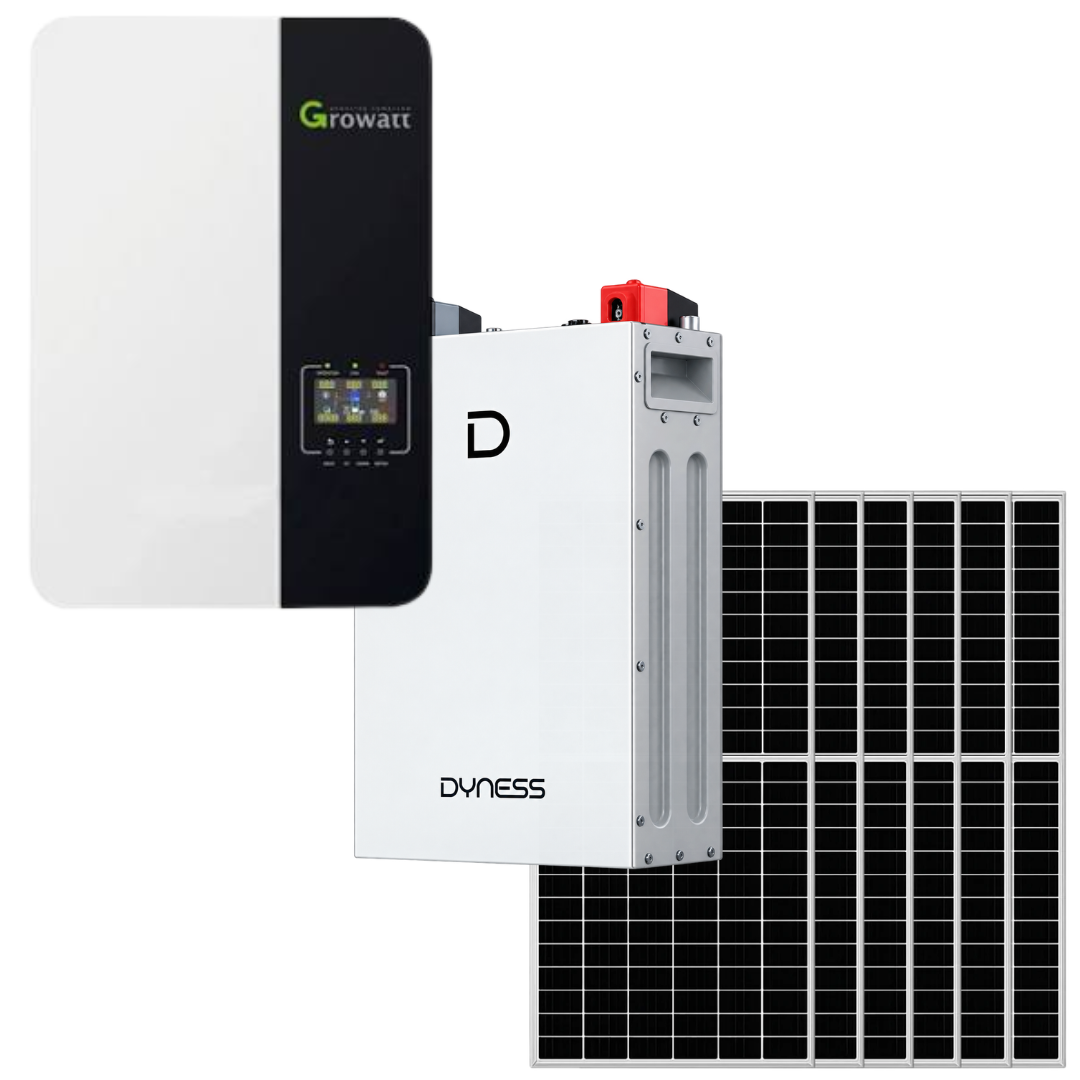

Combo includes:
- 1x GrowattInverter 5kW 48VDC SPF 5000 ES LITE (2 Years Warranty)
+ WIFI Dongle
- 1x Dyness 5.12 Battery DL5.0C 5.12 kWh 51.2v Version 2(7 Years Warranty)

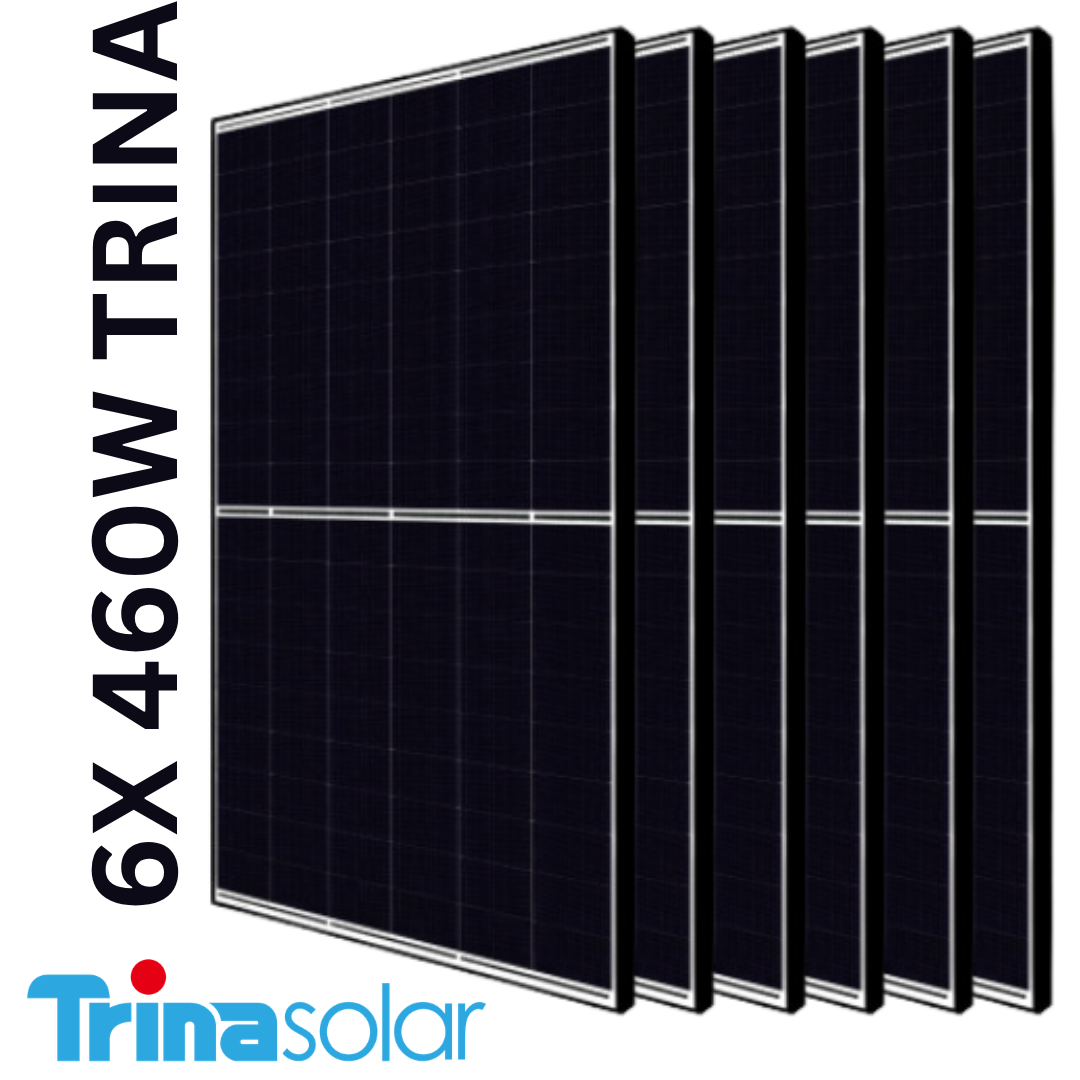

- 6x Trina 460W Tier 1 Mono Solar Panel Mono TSM-XXXNEG9R.28 460W (25 Year Product Warranty)
- Battery cables included
