Deye 16Kw Lithium Battery SE-F16
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Deye 16Kw Lithium Battery SE-F16
ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED
- High Capacity: 16 kWh nominal energy & 314 Ah capacity with LiFePO₄ chemistry
- Scalable Power: Expandable up to 32 units in parallel for increased capacity
- Superior Durability: Over 6000 cycle life with 90% recommended DoD
- Advanced Protection: Integrated BMS with active fuse for enhanced safety
- Robust Performance: Reliable operation from -20°C to 55°C
- Easy Monitoring: Local battery and remote ESS monitoring via app/interfaces
- Flexible Installation: Wall, floor, or stack-mounted options

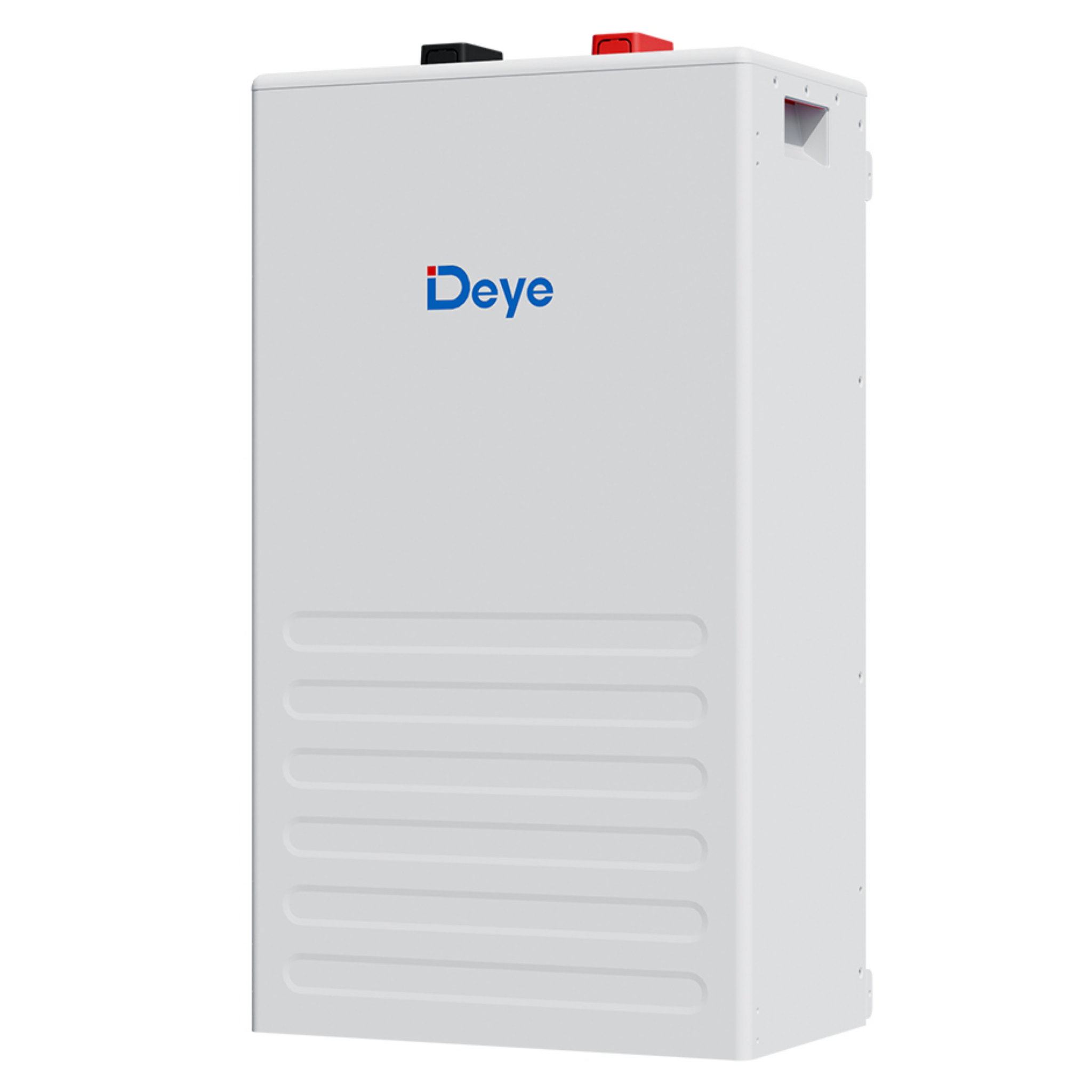

The SE – F16 is a standout energy storage solution from Deye, engineered to meet diverse energy needs with excellence.

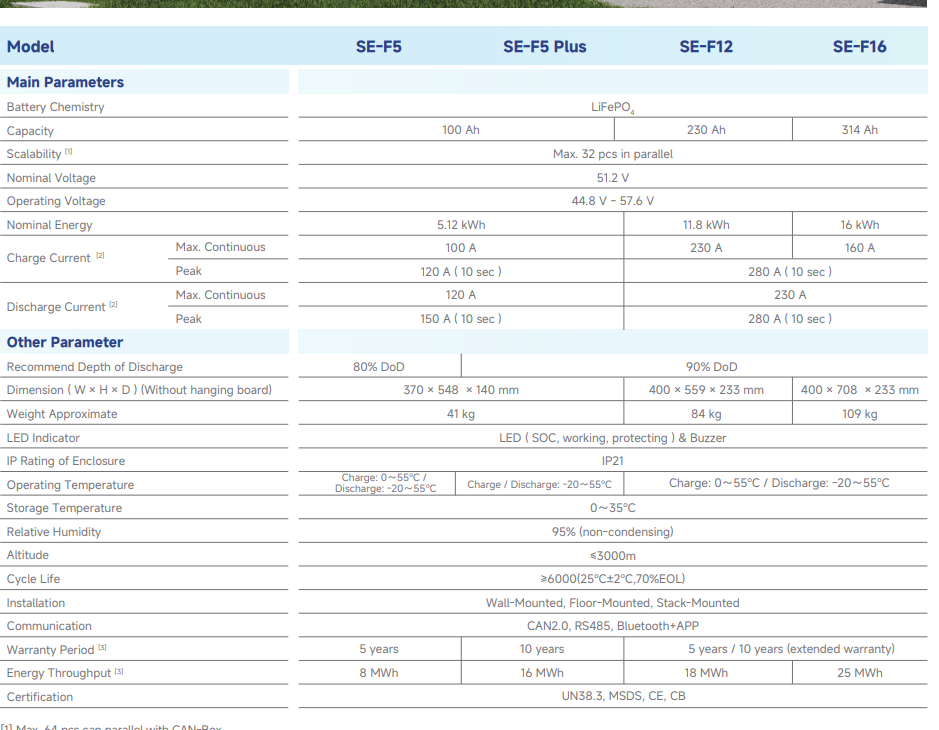

| Parameter | Value |
|---|---|
| Model | SE-F16 |
| Battery Chemistry | LiFePO₄ |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 16 kWh |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8 V – 57.6 V |
| Max. Cont. Charge Current | 160 A |
| Max. Cont. Discharge Current | 230 A |
| Peak Discharge Current | 280 A (10 sec) |
| Dimensions (W×H×D) | 400 × 708 × 233 mm (Without hanging board) |
| Weight Approximate | 109 kg |
| Recommended DoD | 90% |
| Cycle Life | >6000 cycles (25°C±2°C, 70%EOL) |
| IP Rating | IP21 |
| Operating Temperature | Charge: 0~55°C / Discharge: -20°C~55°C |
| Communication | CAN2.0, RS485, Bluetooth+APP |
| Scalability | Max. 32 units in parallel |
| Warranty | 5 years / 10 years (extended) |
| Certifications | UN38.3, MSDS |
Key Features & Benefits:
- Comprehensive Protection: Equipped with an advanced Battery Management System (BMS) and active fuse, it ensures the safety and stability of the energy storage process, guarding against potential risks.
- Superior Performance: Supports a maximum 1C charge and 1.2C discharge. Featuring GaN MOSFETs, it achieves a 50% reduction in energy loss and demonstrates strong resistance to high temperatures, ensuring efficient operation even in tough conditions.
- Optimized Energy Density: The integrated PACK design cuts down line loss significantly, boosting energy density and making the most of every unit of energy stored.
- Flexible Expansion: Allows for parallel connection of up to 32 units, enabling users to scale up the energy storage capacity as their requirements grow.
- Easy Maintenance: Comes with auto – networking functionality. It offers a local monitoring mode for individual batteries and a remote monitoring mode for the entire Energy Storage System (ESS), simplifying upkeep and management.
- Reliable Durability: Operates reliably within a temperature range of – 20°C to 55°C relying on natural cooling, ensuring consistent performance in various environmental conditions.
