DYNESS Lithium Battery DL5.0C PRO 5.12 kWh 51.2V
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v

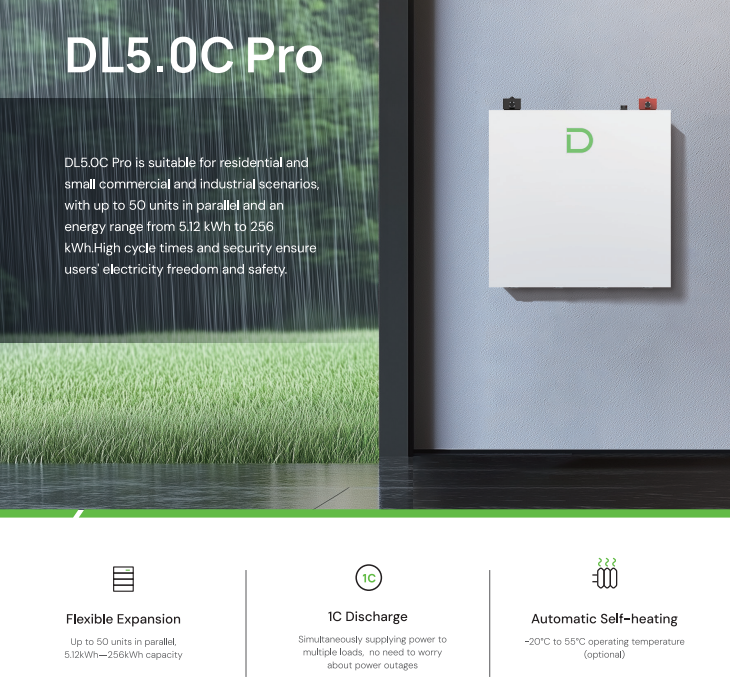

The DL5.OC Pro is suitable for residential and small commercial and industrial scenarios, with up to 50 units in parallel and an energy range from 5.12 kWh to 256 kWh.High cycle times and security ensure users' electricity freedom and safety.
Key Features
- SAFE- Intelligent fire extinguishing system, detects and extinguishes a fire in 5 seconds.
- SMART MANAGEMENT- Real-time system monitoring, remote control, OTA updates.

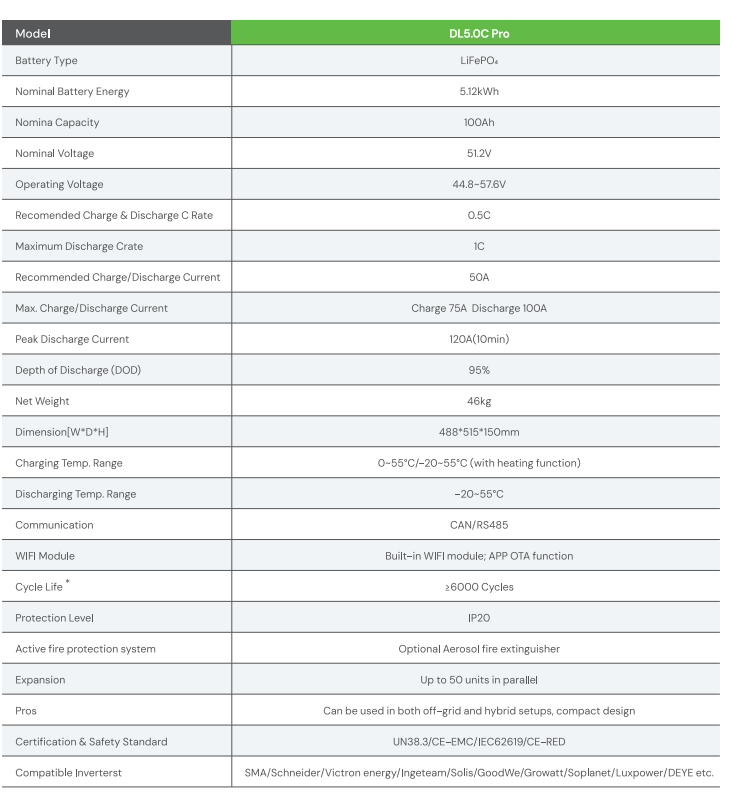

| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max Continous Charge Current | 75A |
| Max Continous Discharge Current | 100A |
| Peak Power Charge/Discharge Current | 120A (15s) |
| Depth of Discharge (DOD) | 95% |
| Net Weight | 46 kg |
| Dimension[W*D*H] | 488 x 515 x 150 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 95% DOD
10 Years Warranty
