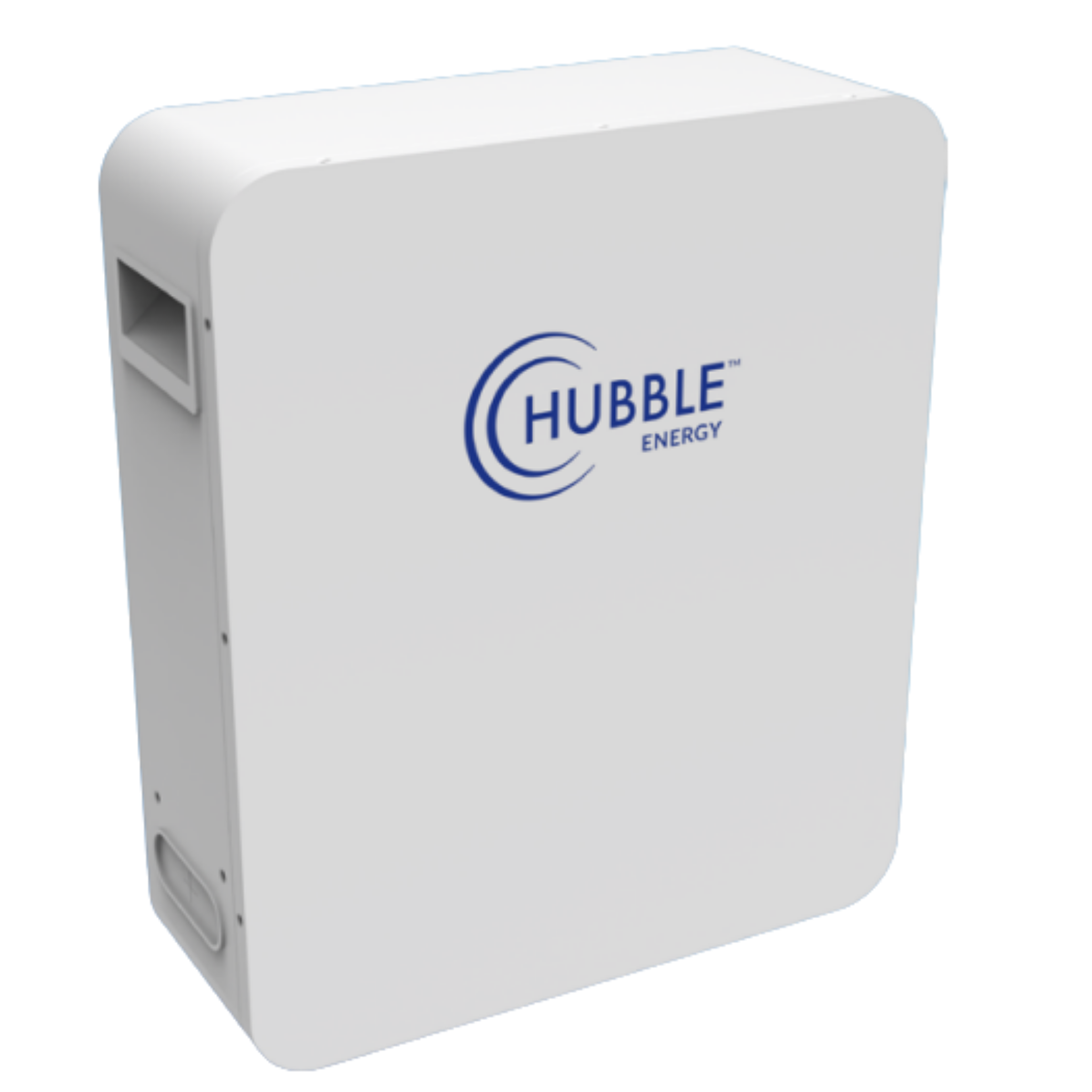

Hubble Lithium Battery Wallmount 25V 2.5kWh 100AH AM-4 V3
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Hubble Lithium Battery Wallmount 25V 2.5kWh 100AH AM-4 V3
FEATURES
+ Optional remote monitoring with the Hubble
Cloudlink
+ 1C high performance lithium battery
+ Advanced BMS with current limiting function
+ Easy wall mount or shelf rack installation
+ Heavy duty side handles for easy handling
and mounting on the wall
+ High cycle and service life
+ Compatible with most inverters and chargers
+ Built in protection for over-charge, overdischarge and over-temperature
+ CAN Bus, fully integrates and communicates
with leading Inverter brands

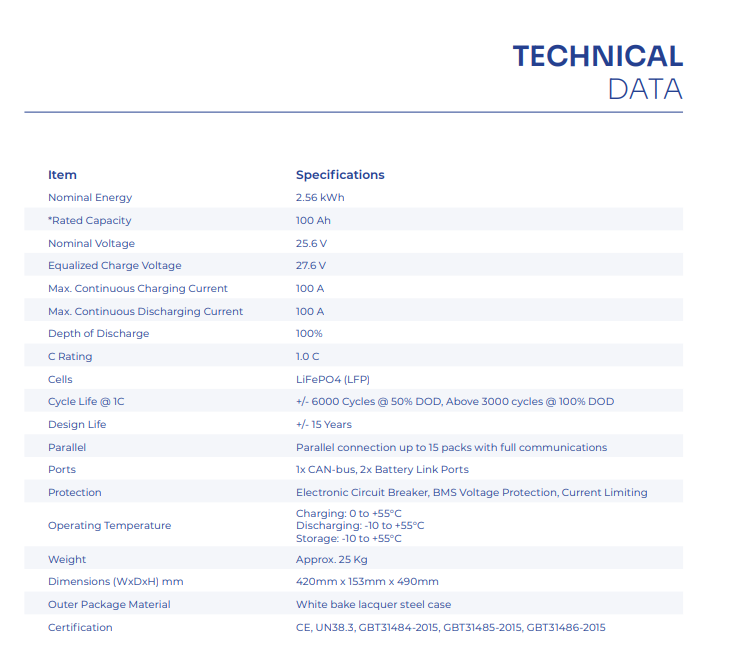

SPECIFICATIONS
Nominal Energy 2.56 kWh
*Rated Capacity 100 Ah
Nominal Voltage 25.6 V
Equalized Charge Voltage 27.6 V
Max. Continuous Charging Current 100 A
Max. Continuous Discharging Current 100 A
Depth of Discharge 100%
C Rating 1.0 C
Cells LiFePO4 (LFP)
Cycle Life @ 1C +/- 6000 Cycles @ 50% DOD, Above 3000 cycles @ 100% DOD
Design Life +/- 15 Years
Parallel Parallel connection up to 15 packs with full communications
Ports 1x CAN-bus, 2x Battery Link Ports
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Operating Temperature
Charging: 0 to +55°C
Discharging: -10 to +55°C
Storage: -10 to +55°C
Weight Approx. 25 Kg
Dimensions (WxDxH) mm 420mm x 153mm x 490mm
Outer Package Material White bake lacquer steel case
Certification CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Battery Warranty:
https://www.hubblelithium.co.za/_files/ugd/49fdd5_006693318a91462aba88ffe9ea36aec3.pdf
The warranty period commences on the date of purchase from Hubble Lithium (Pty) Ltd (“Hubble Lithium”) as reflected in the relevant Hubble Lithium tax invoice. Hubble Lithium warrants that the Battery cells will achieve at least 10 years’ service life or deliver at least 3000 charge-discharge cycles as counted by the BMS, which ever event occurs first.
