Pylontech UP5000 4.8kWh Li-Ion Solar Battery 48V (Copy)
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11

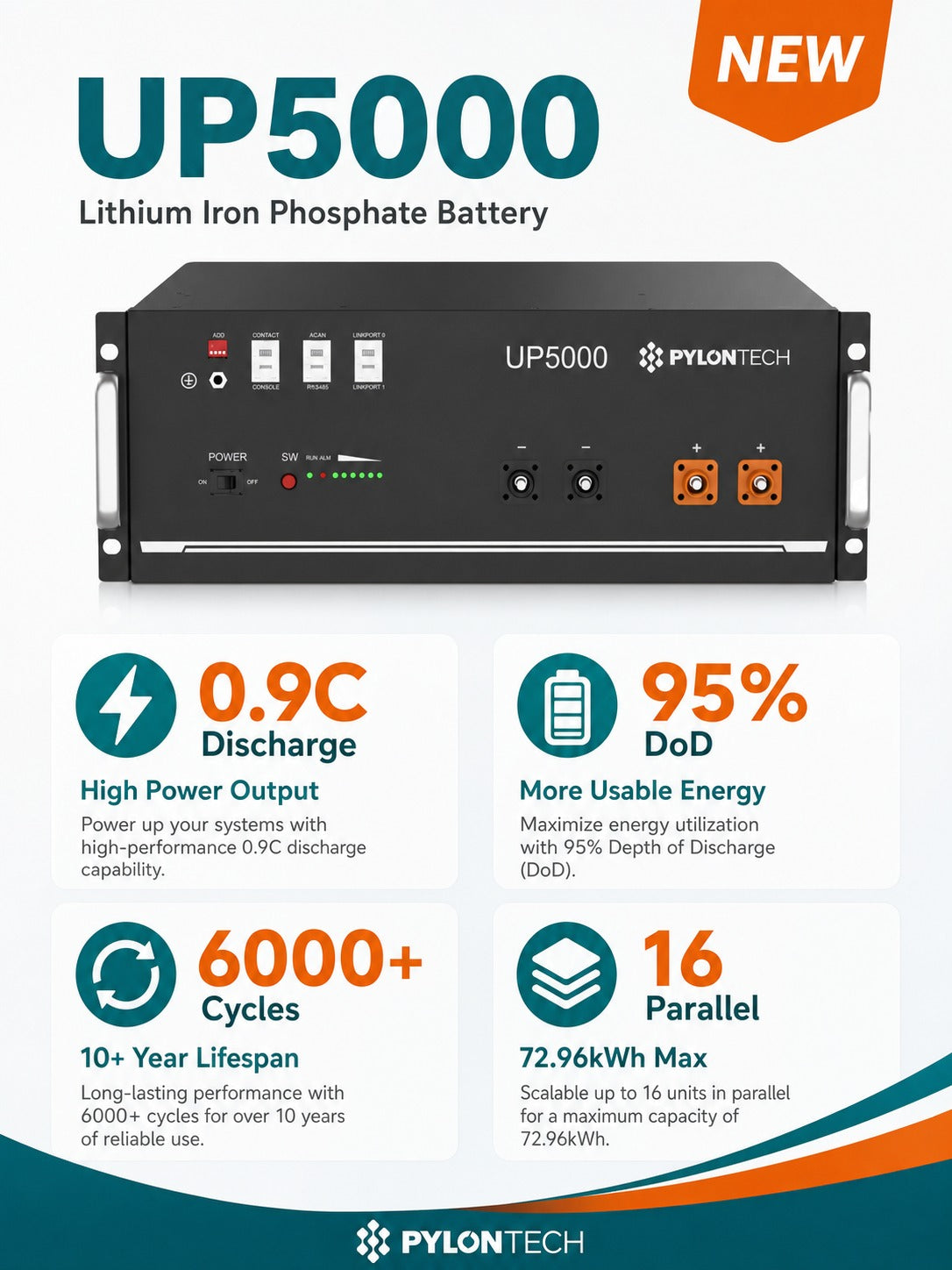

There are Pylontech UP5000 4.8 kWh Li-Ion Battery (48 V)
Model: UP5000
Brand: Pylontech
Type: 48 V LiFePO₄ (Lithium Iron Phosphate) Battery Module
Key Features
-
Compact 4.8 kWh nominal capacity — ideal for smaller solar storage, backup or modular expansion.
-
High usable capacity (≈4.56 kWh) thanks to deep-discharge (95% DoD) capability.
-
Modular and scalable — can parallel multiple units (up to 16 modules) to scale system capacity.
-
LiFePO₄ cell chemistry — known for long cycle life, stability and enhanced safety.
-
Built-in Battery Management System (BMS) — protecting against over-voltage, over-current, temperature extremes and ensuring reliability.
-
Compact footprint and manageable weight, engineered for modern installation environments.

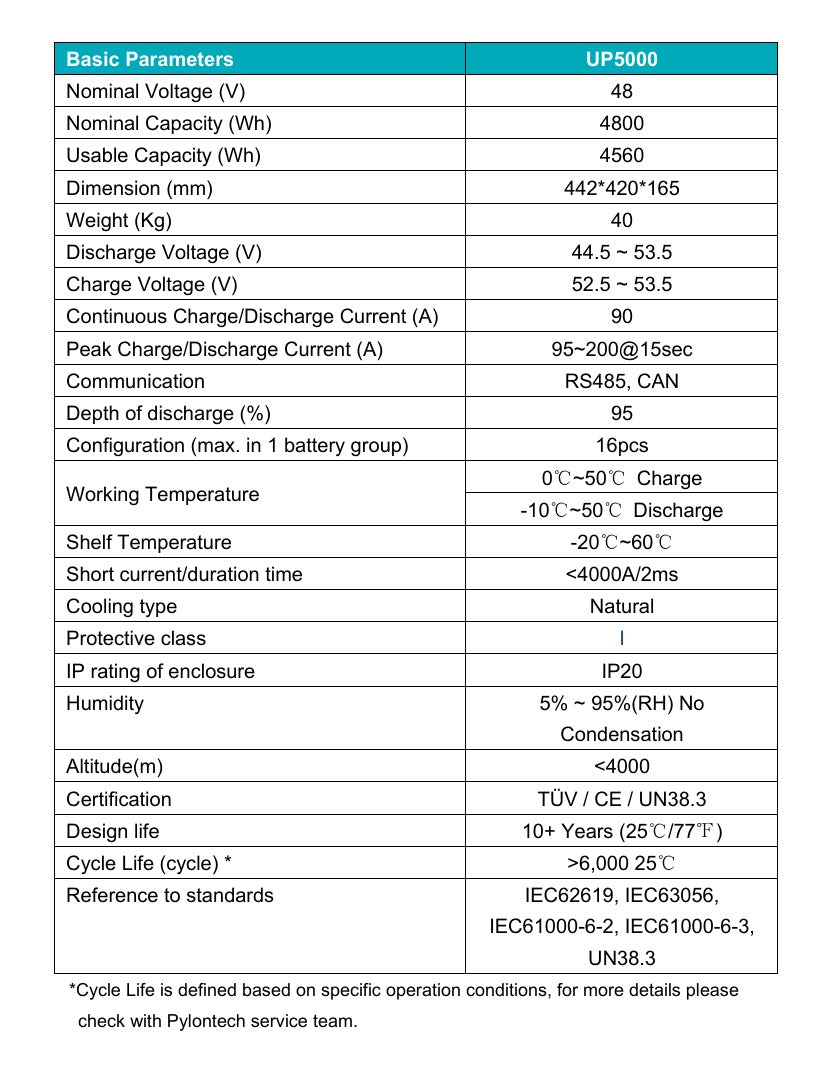

📐Specifications
| Specification | Value |
|---|---|
| Model | UP5000 |
| Nominal Energy Capacity | 4.8 kWh |
| Usable Capacity | ~4.56 kWh |
| Nominal Voltage | 48 V |
| Usable Depth of Discharge | 95% |
| Module Dimensions (approx.) | 442 × 420 × 165 mm (or similar) |
| Net Weight (approx.) | ~40 kg |
| Warranty | 5 Years (region dependent) |
Quality & Support
Pylontech is a respected brand in residential and commercial energy-storage modules. The UP5000 offers proven performance, modular expandability and integration flexibility with many inverter systems. Scalable, safe and ready for modern storage needs.
