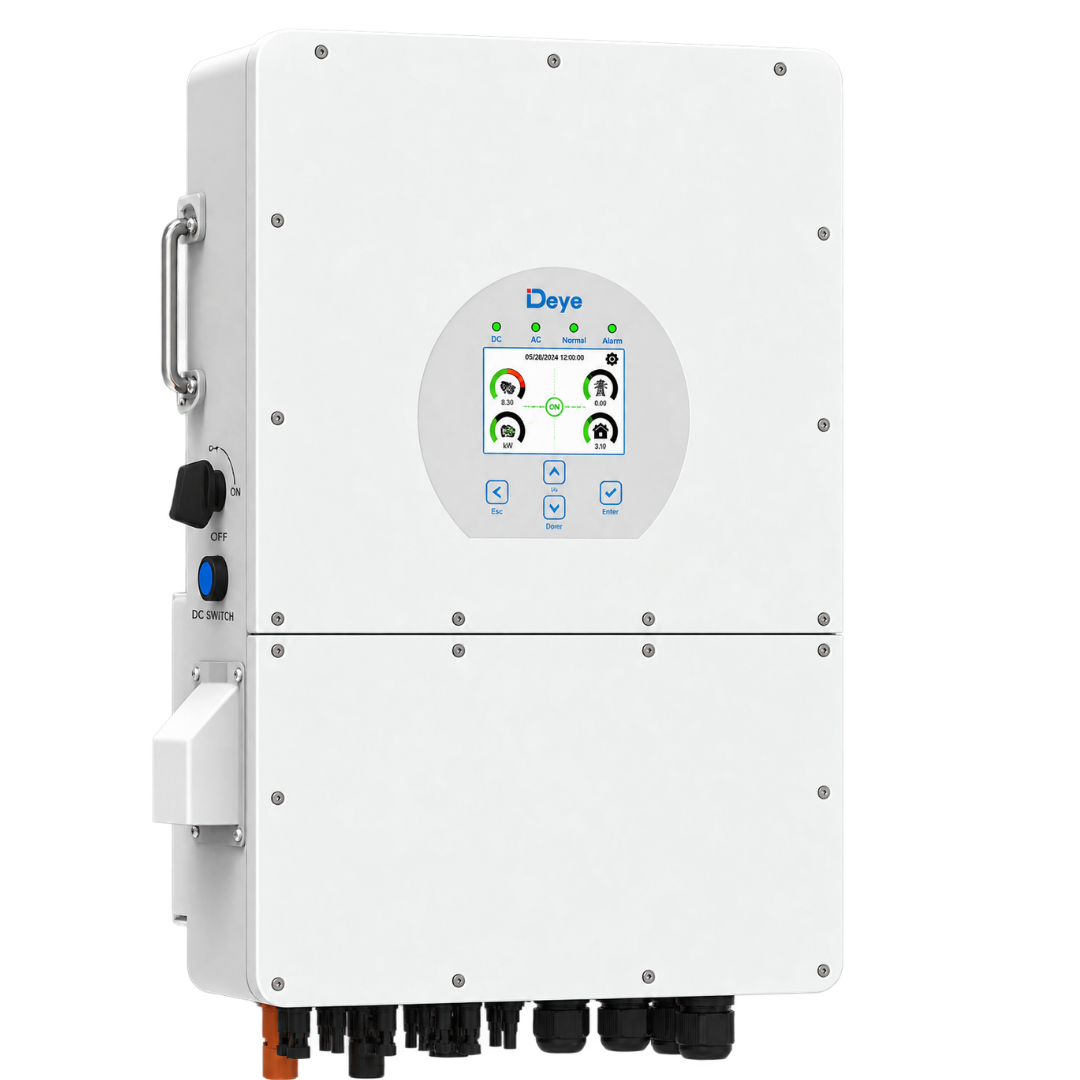

Deye 30kw Hybrid Inverter 3 Phase High Voltage
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are Deye: 30Kw Three Phase HV Hybrid Inverter – VOC: 850V Battery: 800V CT&WIFI Incl (SUN-30K-SG02HP3-EU-AM3)
Description
ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED
General Data
• 100% Unbalanced Output, Each Phase
• AC Couple to retrofit existing Solar System
• Maximum 10 PCS Parallel for on-grid and off-grid operation
• Supports multiple Batteries in Parallel
• Maximum Charging / Discharging Current of 100A
• High Voltage Battery for higher efficiency
• 6 time periods for Battery Charging / Discharging
• Support storing energy from Diesel Generator

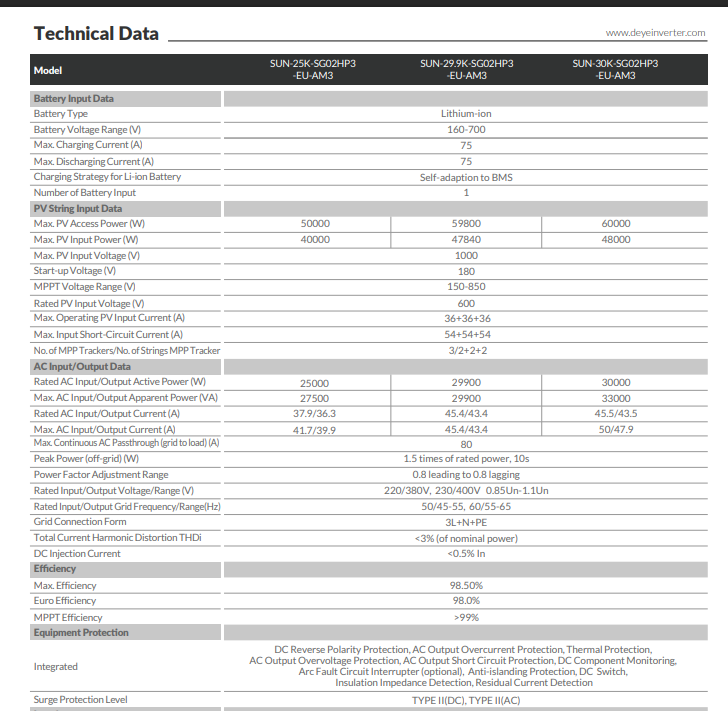

| Model | SUN-25K-SG02HP3-EU-AM3 | SUN-29.9K-SG02HP3-EU-AM3 | SUN-30K-SG02HP3-EU-AM3 |
| Battery Input Data | |||
| Battery Type | Lithium-ion | ||
| Battery Voltage Range(V) | 160-700 | ||
| Max.Charging Current(A) | 75 | ||
| Max.Discharging Current(A) | 75 | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Number of battery input | 1 | ||
| PV String Input Data | |||
|
Max. PV Access Power (W)
|
50000 | 59800 | 60000 |
| Max PV Input Power（W） | 40000 | 47840 | 48000 |
| Max PV Input Voltage（V） | 1000 | ||
| Start-up Voltage（V） | 180 | ||
| MPPT Voltage Range（V） | 150-850 | ||
| Rated PV Input Voltage(V) | 600 | ||
| Max Input Short-Circuit Current（A） | 54+54+54 | ||
| Max Operating PV Input Current（A） | 36+36+36 | ||
| No.of MPP Trackers/No.of String Per MPP Tracker | 3/2+2+2 | ||
| AC Input/Output Data | |||
| Rated AC Input/Output Active Power（W） | 25000 | 29900 | 30000 |
| Max AC Input/Output Apparent Power （VA） | 27500 | 29900 | 33000 |
| Peak Power (off-grid)（W） | 1.5 times of rated power,10s | ||
| Rated AC Input/Output Current（A） | 37.9/36.3 | 45.4/43.4 | 45.5/43.5 |
| Max AC Input/Output Current（A） | 41.7/39.9 | 45.4/43.4 | 50/47.9 |
| Max Continuous AC Passthrough (grid to load)（A） | 80 | ||
| Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | ||
| Grid Connection Form | 3L+N+PE | ||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||
| Power Factor Adjustment Range | 0.8 leading-0.8 lagging | ||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max Efficiency | 98.50% | ||
| Euro Efficiency | 98.0% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
|
Integrated
|
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage
Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit
Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection,
Residual Current Detection
|
||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||

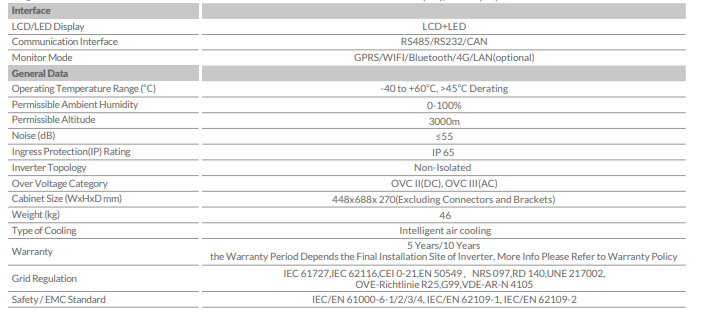

| Interface | |||
| Communication Interface | RS485/RS232/CAN | ||
|
Monitor Mode
|
GPRS/WIFI/Bluetooth/4G/LAN(optional)
|
||
| General Data | |||
| Operating Temperature Range | -40℃+60℃,＞45℃ Derating | ||
| Permissible Ambient Humidity | 0-100% | ||
| Permissible Altitude | 3000m | ||
| Noise | ≤ 55 | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet size（W*H*D）[mm] | 448x688x 270(Excluding Connectors and Brackets |
||
| Weight[kg] | 46 | ||
| Warranty |
5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. |
||
| Type Of Cooling | Intelligent air cooling | ||
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
