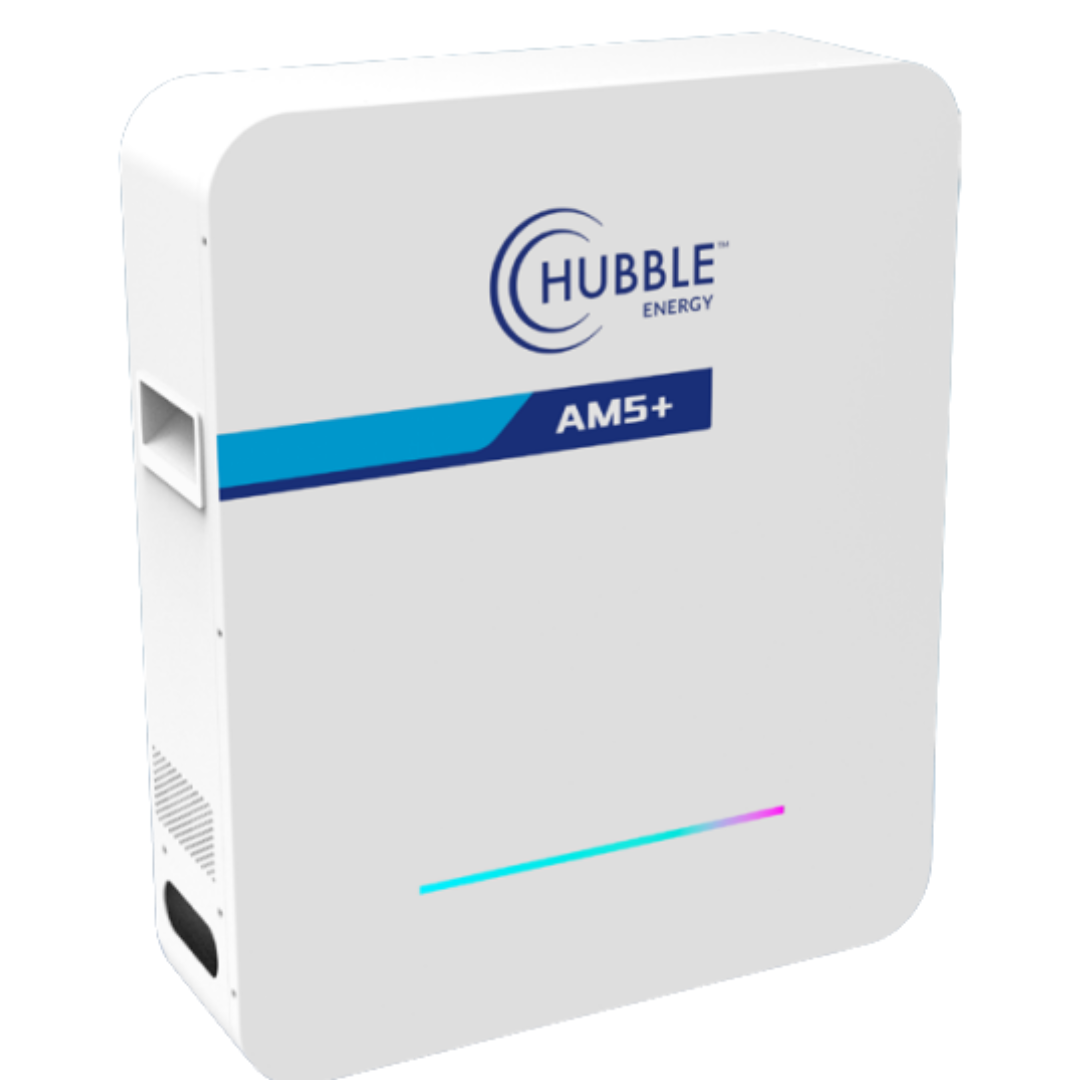

Hubble AM-5+ LiFePO4 5.12kWh 51.2V Battery (Unlimited Cycles)

Hubble AM-5+ LiFePO4 5.12kWh 51.2V Battery (Unlimited Cycles)

Please note all the AM-5 Models Will Work Together.

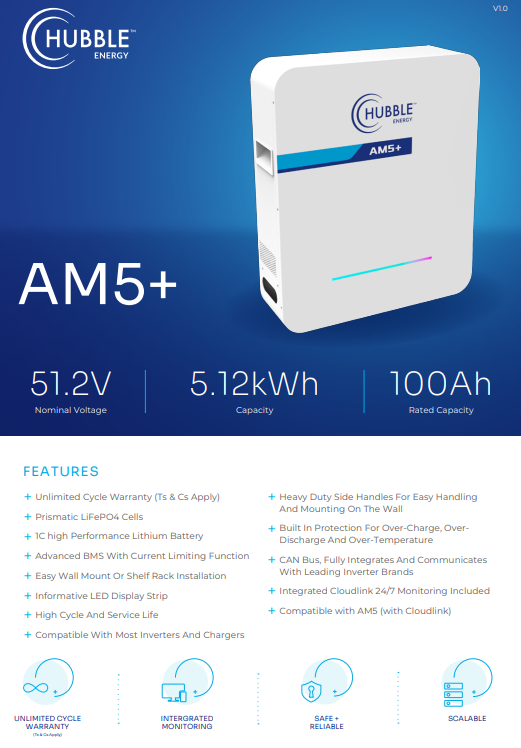

 Features:

+ Unlimited Cycle Warranty (Ts & Cs Apply)
+ Prismatic LiFePO4 Cells
+ 1C high Performance Lithium Battery
+ Advanced BMS With Current Limiting Function
+ Easy Wall Mount Or Shelf Rack Installation
+ Informative LED Display Strip
+ High Cycle And Service Life
+ Compatible With Most Inverters And Chargers
+ Heavy Duty Side Handles For Easy Handling
And Mounting On The Wall
+ Built In Protection For Over-Charge, OverDischarge And Over-Temperature
+ CAN Bus, Fully Integrates And Communicates
With Leading Inverter Brands
+ Integrated Cloudlink 24/7 Monitoring Included
+ Compatible with AM5 (with Cloudlink)

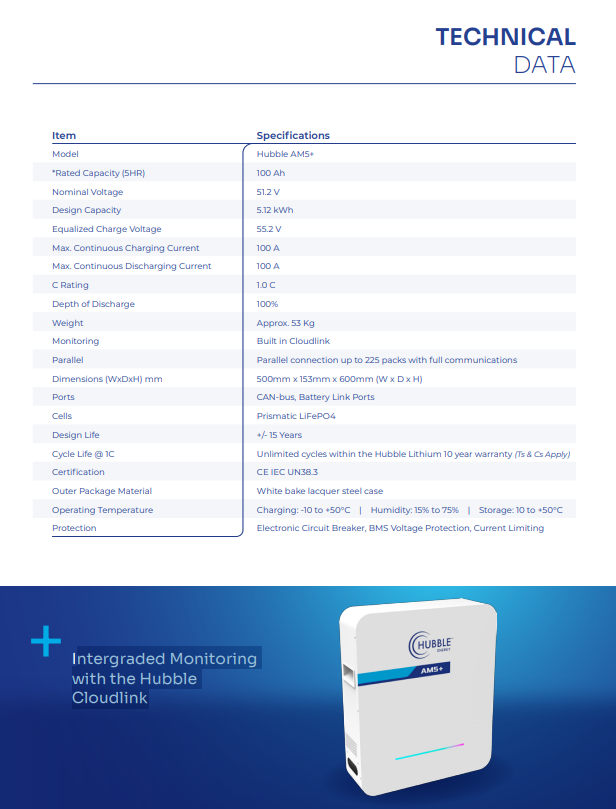

Technical Specifications:

Model Hubble AM5+
*Rated Capacity (5HR) 100 Ah
Nominal Voltage 51.2 V
Design Capacity 5.12 kWh
Equalized Charge Voltage 55.2 V
Max. Continuous Charging Current 100 A
Max. Continuous Discharging Current 100 A
C Rating 1.0 C
Depth of Discharge 100%
Weight Approx. 53 Kg
Monitoring Built in Cloudlink
Parallel Parallel connection up to 225 packs with full communications
Dimensions (WxDxH) mm 500mm x 153mm x 600mm (W x D x H)
Ports CAN-bus, Battery Link Ports
Cells Prismatic LiFePO4
Design Life +/- 15 Years
Cycle Life @ 1C Unlimited cycles within the Hubble Lithium 10 year warranty (Ts & Cs Apply)
Certification CE IEC UN38.3
Outer Package Material White bake lacquer steel case
Operating Temperature Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
