JA 590w Tier 1 Bifacial Mono Solar Panel (JAM72D40-590/MB) (6X PACK)
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11

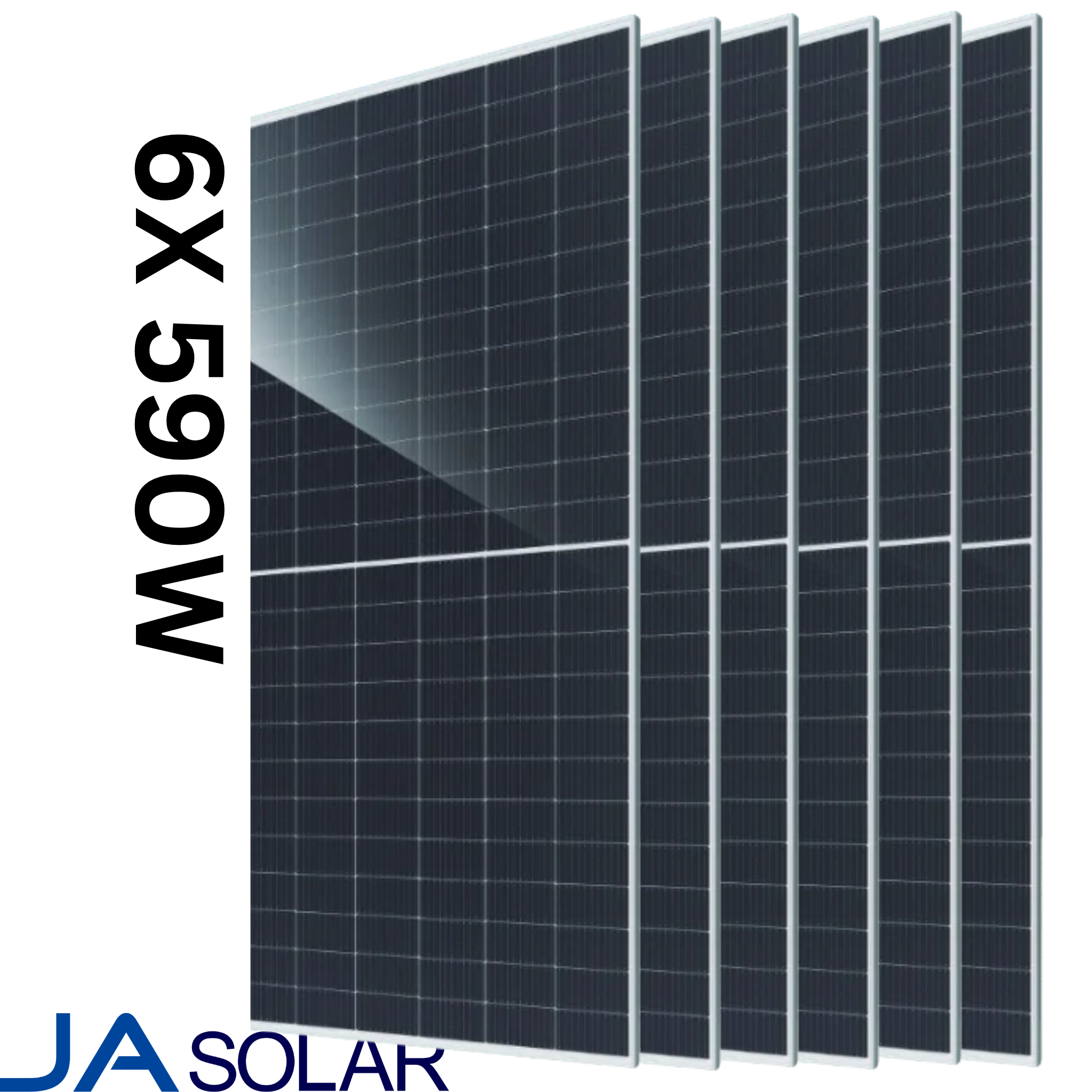

There are 6X JA 590w Tier 1 Bifacial Mono Solar Panel (JAM72D40-590/MB)
(Courier for panels are at your own risk)
Designed for commercial and utility-scale projects, it features low degradation (~1% first year; ~0.40% p.a. thereafter) and an industry warranty package (12 years product workmanship / 30 years power warranty), making it a reliable choice for high-density PV installations.
High per-module output — 590 Wp: reduces BOS and mounting costs per installed kWp.
• Efficient cell layout — 16-busbar / 144 cells: improved current collection and lower series resistance for better real-world yield.
• Good module efficiency — ~21.8%: maximizes energy per m² and is excellent for constrained roof/ground space.
• Tight power tolerance — 0 ~ +5 W: predictable string design and simpler binning for large projects.
• Low degradation & long warranty: 1% first year and ~0.40% annual degradation with 12 y product + 30 y power warranty lowers lifecycle risk.
• Installer-friendly electrical spec: conservative temperature coefficient (~−0.30%/°C) supports stable output in hot climates.
• B2B advantages: high power density and reliable warranty make it a strong choice for commercial and utility procurements.

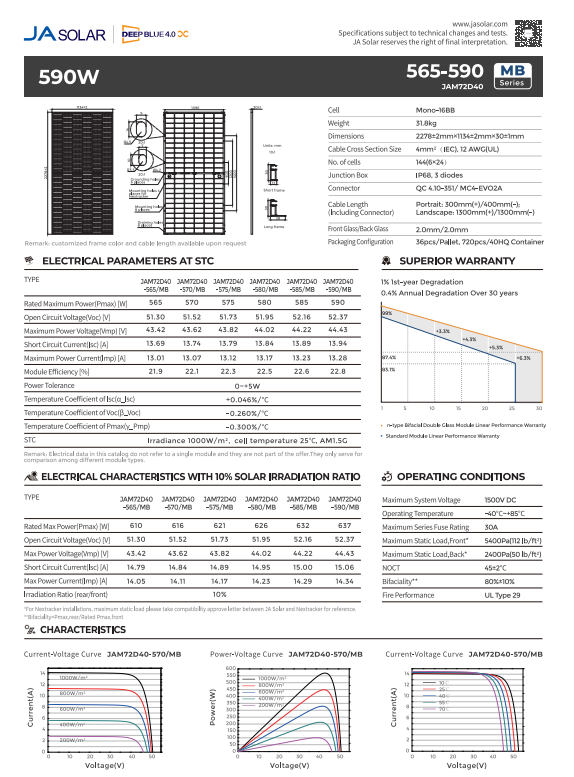

Specifications :
Nominal Max. Power (Pmax) 590 W
Open Circuit Voltage (Voc) 52.37 V
Opt. Operating Voltage (Vmp) 44.43 V
Short Circuit Current (Isc) 13.34 A
Opt. Operating Current (Imp) 13.28 A
| Weight | 33,6 kg |
|---|---|
| Dimensions | 30 × 1134 × 2278 cm |
