JA 615W Tier 1 Bifacial Mono Solar Panel (JAM66D45-615/LB) (6X PACK)
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
There are 6X JA 615W Tier 1 Bifacial Mono Solar Panel Black Frame (JAM66D45-615/LB)
(Courier for panels are at your own risk)

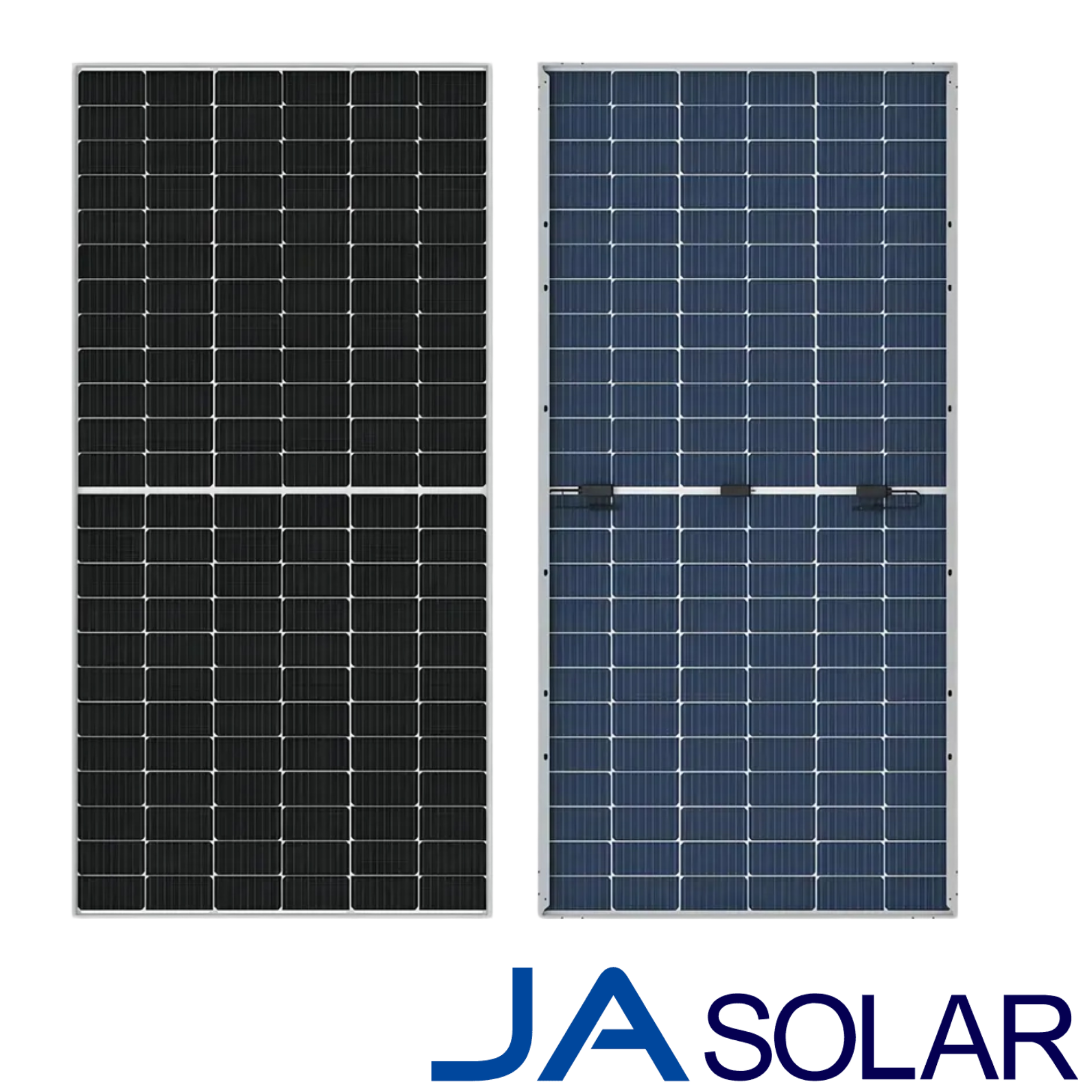

The JA Solar JAM66D45-615/LB is a 615 Wp bifacial glass-glass module built with 132 n-Type TOPCon cells and a high module efficiency of approximately 22.77%. Measuring 2382 × 1134 × 30 mm and weighing 33.1 kg, it offers robust mechanical ratings (snow 5,400 Pa / wind 2,400 Pa), a 12-year product warranty and a 30-year performance guarantee to 87%, making it ideal for commercial and utility-scale projects.
| Model | JAM66D45-615/LB |
| Rated Power Output | 615 W |
| Module Efficiency | 22.8% |
| Cell Type | n-type Bycium+ Half-Cell (Mono), 16BB |
| Number of Cells | 132 (6 x 22) |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 33.1 kg |
| Glass | 2.0 mm front + 2.0 mm back, tempered |
| System Voltage | 1500V DC |
| Front Load Rating | 5400 Pa (112 lb/ft²) |
| Rear Load Rating | 2400 Pa (50 lb/ft²) |
| Bifaciality | 80% ± 5% |
| Certifications | IEC 61215 / 61730, UL 61730, ISO 9001, ISO 14001, ISO 45001 |
| Warranty | 12-year product / 30-year linear performance |
Specifications :
Nominal Max. Power (Pmax) 615 W
Open Circuit Voltage (Voc) 48.30 V
Opt. Operating Voltage (Vmp) 39.96 V
Short Circuit Current (Isc) 16.10 A
Opt. Operating Current (Imp) 15.39 A
Module Efficiency (%) 22.8
Size :
2382 × 1134 × 30 mm
(Courier for panels are at your own risk)
